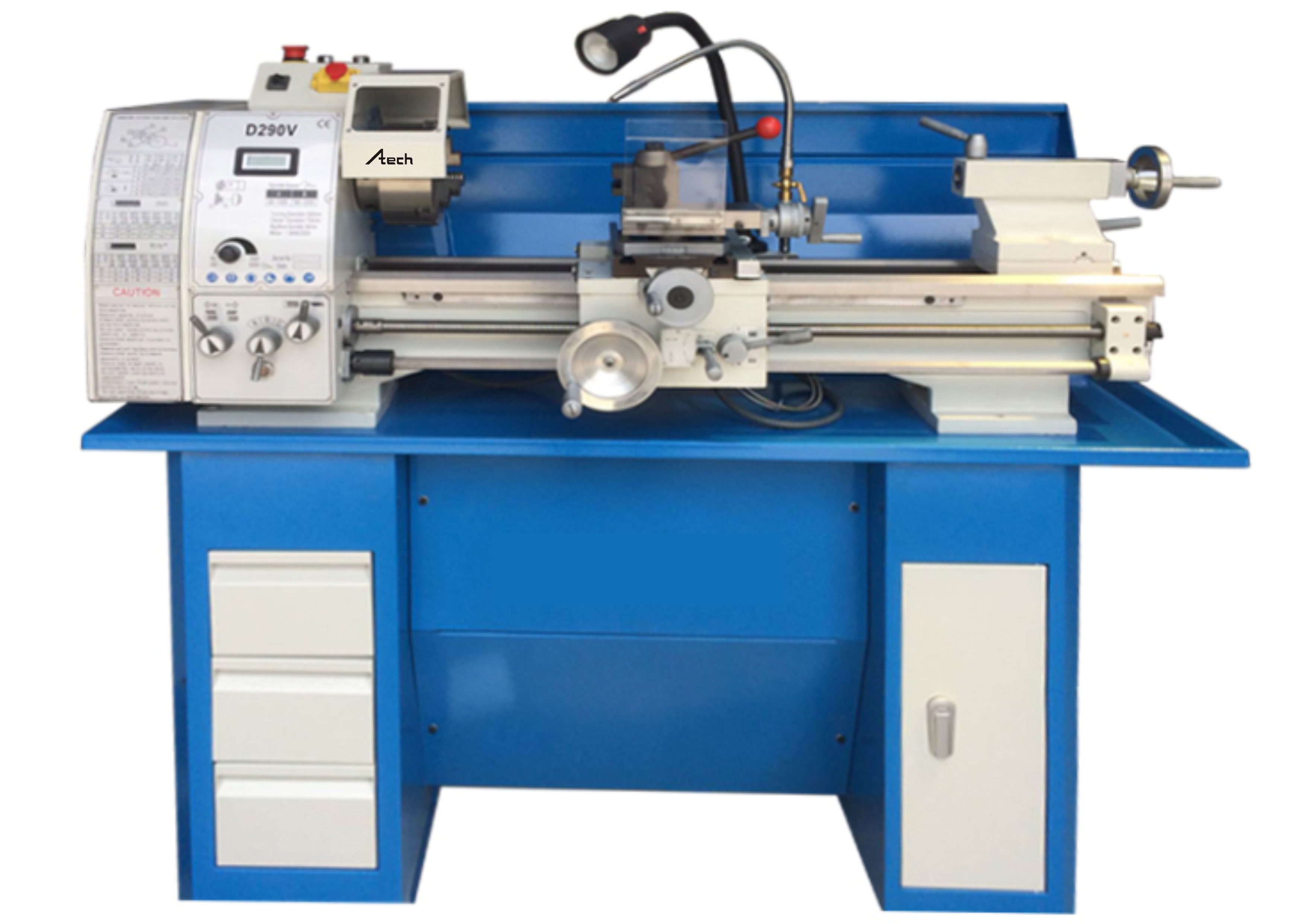

Variable Lathe D290V

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

38mm spindle bore.
With variable speed.
Widely useful, operation very easy, processing scope widespread.
Best choice for hobby users.

Specification

Specification	D290(V)
Max. swing over bed	φ290mm
Distance between centers	700mm
Swing over cross slide	180mm
Width of bed	182mm
Spindle bore	38mm
Taper of spindle bore	MT5
Range of spindle speeds(variable speed)	80-2000rpm
(6 steps)	150 300 600 500 1000 2000rpm
Metric threads can be cut	0.2-3.5mm
Inch threads can be cut	8-56TPI
Top slide travel	70mm
Cross slide travel	160mm
Tailstock quill travel	70mm
Taper of tailstock quill	MT3
Motor power	1500W
NW/GW	250/270kg
Packing size(LXWXH)	1450X700X680mm
