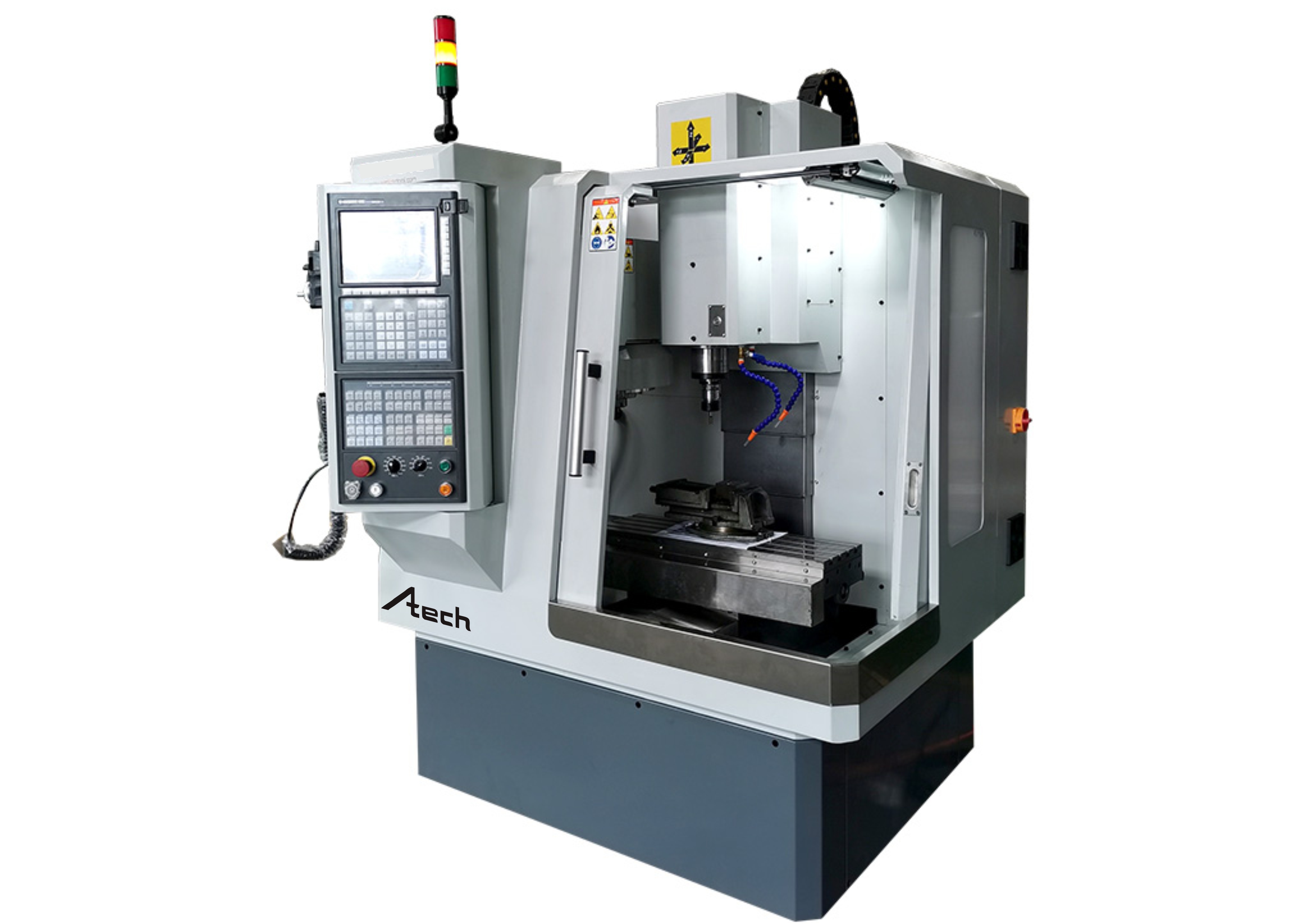

Description
Main Features
- Compact various functions of milling, drilling, boring and reaming.
- Used for production in small-middle manufacturing and in lot with many varieties.
- BT30 Spindle unit, high speed 6000r.p.m with high precision.
- Pneumatic cylinder for easy and fast tool changing.
- Linear guideway by Taiwan HIWIN Brand.
- 8/10 PCS cloak type ATC
- Full enclosure, opened with two doors for most wider operating area.
- Various CNC controller available to fit, GSK, SIMENS, FANUC, etc.
Specification
| Specification | XH7122 |
| Worktable size(L*W) | 700x210mm |
| Max. loading on worktable | 200kgs |
| T slot size | 4x12mm |
| X axis travel | 360mm |
| Y axis travel | 260mm |
| Z axis travel | 440mm |
| Distance from spindle nose to worktable | 60-405mm |
| Distance bewween spindle center to column | 270mm |
| Spindle speed | 6000-8000rpm |
| Spindle taper | BT30 |
| Tool magazine capacity | 8pcs |
| X/Y/Z axis rapid feed speed | 10-12m/min |
| Positioning accuracy （X/Y/Z） | ±0.02mm |
| Repeatability accuracy （X/Y/Z） | ±0.01mm |
| Main motor power (servo) | 2.2/3.7kw |
| Main motor torque (servo) | 14/23.7N.m |
| Feeding motor power | 1.5kw |
| Feeding motor torque | 6N.m |
| Weight(N.W/G.W) | 1200/1300kgs |
| Dimension(L*W*H) | 1470x1550x2080mm |
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
