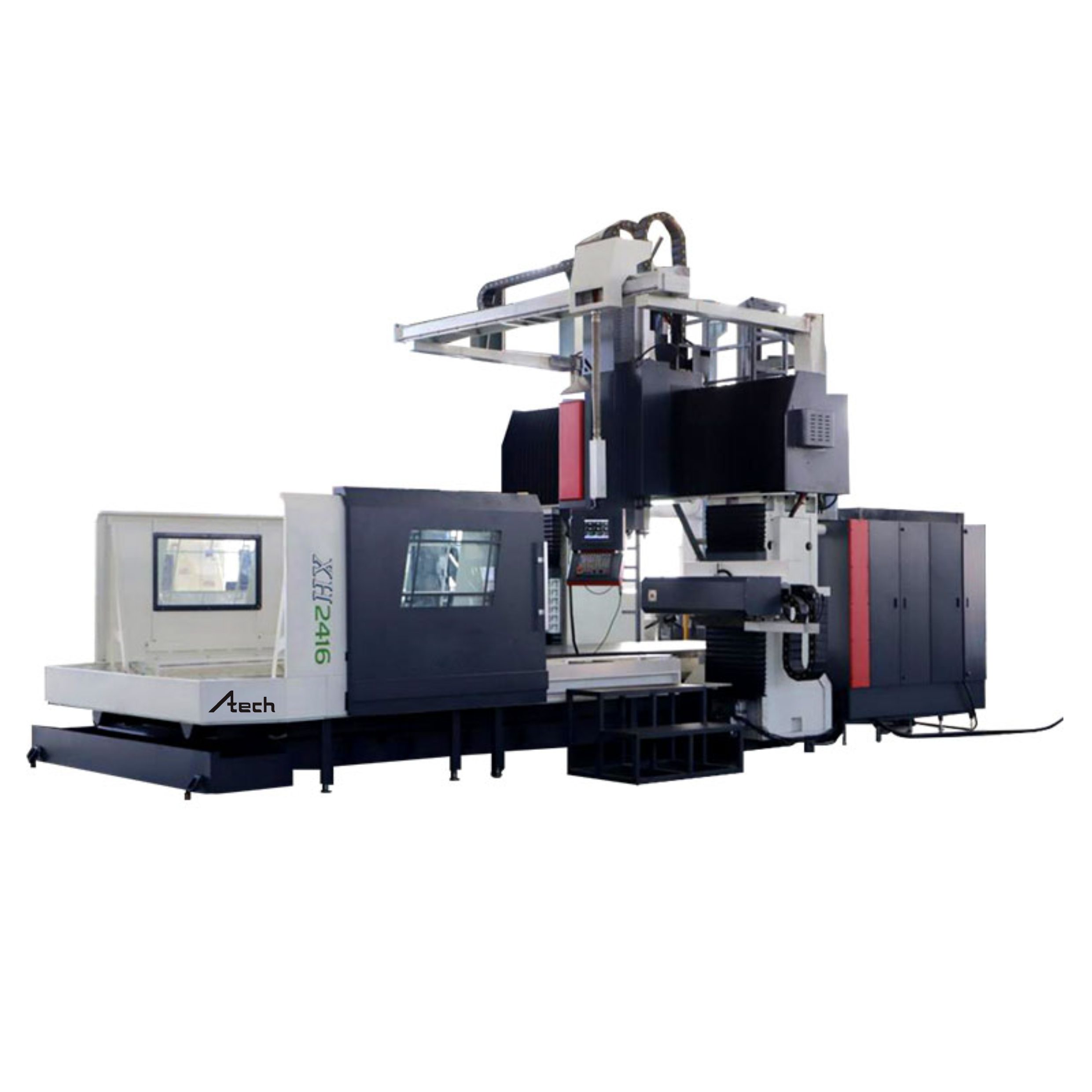

Gantry Milling Machine GMC2416

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

FANUC 0i MF5 CNC Controller.
Double column machining center with Taiwan Deta 24 disc type tool magazine.
BT50-155 Taiwan spindle 6000rpm.
Chain-type chip conveyor.

Specification

Specification	Unit	GMC2416/2.5
Table size	mm	2500×1600
Max. table loading	kg	6000
Table travel X axis	mm	2700
Table travel Y axis	mm	2200
Table travel Z axis	mm	1000
Spindle nose to table surface	mm	200-1200
Distance between two column	mm	2100
Spindle speed range and driving method	rpm	6000
Spindle taper	/	BT50-190
Rapid traverse speed – X axis	mm/min	12000
Rapid traverse speed – Y axis	mm/min	12000
Rapid traverse speed – Z axis	mm/min	10000
Feed rate (X / Y / Z axes)	mm/min	1-8000
Number of tool magazine–opt.	/	24/opt.-32/40
Spindle motor power (straight/15 minutes)	kw	15/18.5
Positioning accuracy (JIS standard)	mm	±0.005/300
Repeatability Positioning accuracy (JIS standard)	mm	±0.003/1000
Net weight	ton	27
Overall size	mm	7000x4200x4260
