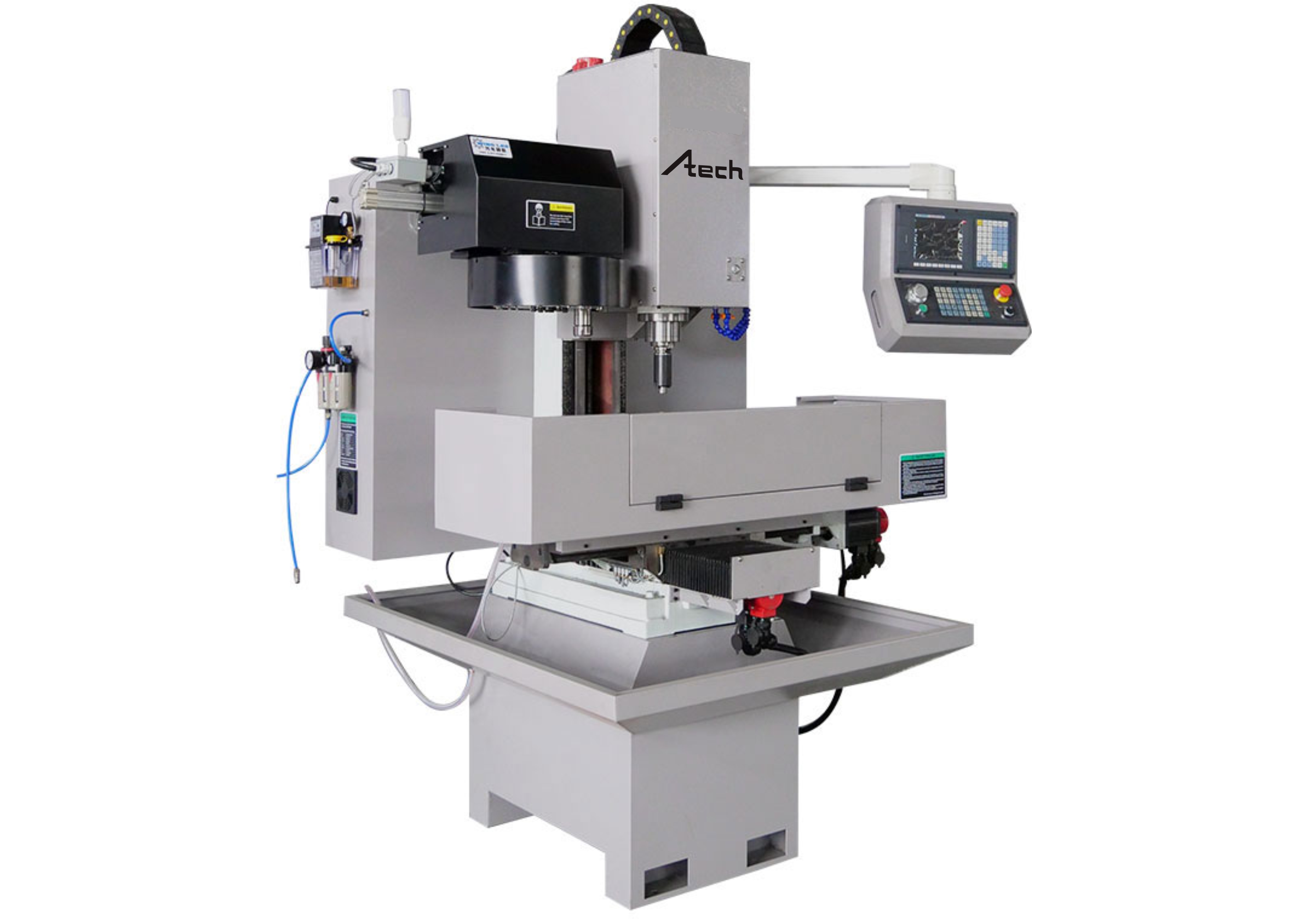

Description
Main Features
- Suitable for machining parts of automobile, mold industry and so on.
- BT30 spindle as optional selection.
- 6000rpm spindle speed.
- Low noise and high precision.
- Best choice for hobby users.
Specification
| Specification | XK7124 |
| worktable | |
| Worktable size(LxW) | 800x240mm |
| T-slot (N×W×D) | 3-16X60mm |
| Travel | |
| X axis travel | 425/245/530mm |
| Machining range | |
| Spindle center to column distance | N/A |
| Distance from spindle nose to worktable surface | 105-635mm |
| Spindle | |
| Spindle taper | BT30 |
| Main motor power | 3.7kw |
| Coolant system | N/A |
| Change tool way | Pnumetic |
| Rapid feed speed(X/Y/Z) | 10/10/10 m/min |
| Max.spindle speed | 6000rpm |
| Feed | |
| AC servo motor torque (X/Y/Z) | N/A |
| Ball screw (diameter+lead） | |
| XY Linear guideway | N/A |
| Z linear guideway | N/A |
| X axis ball leadscrew | 2506 |
| YZ axis ball leadscrew | 2506 |
| Tool magazine | |
| ATC Type | Umbrella type |
| Capacity of ATC | 12T |
| Air compressor pressure | N/A |
| Lubricating pump capacity | 1L |
| Working light | 10w |
| Cooling pump | 40w |
| Controller system | After18i//GSK980MDc/Siemens 808Da |
| Size | |
| Machine size(LxWxH) | 1540（1730）x1300x1960（2060）mm(including ATC） |
| Machine weight | 600kg/750kg |
Machine details
12pcs ATC
800x240mm Worktable Size
CNC controller
Electrical Cabinet
Tersedia juga model lain.
