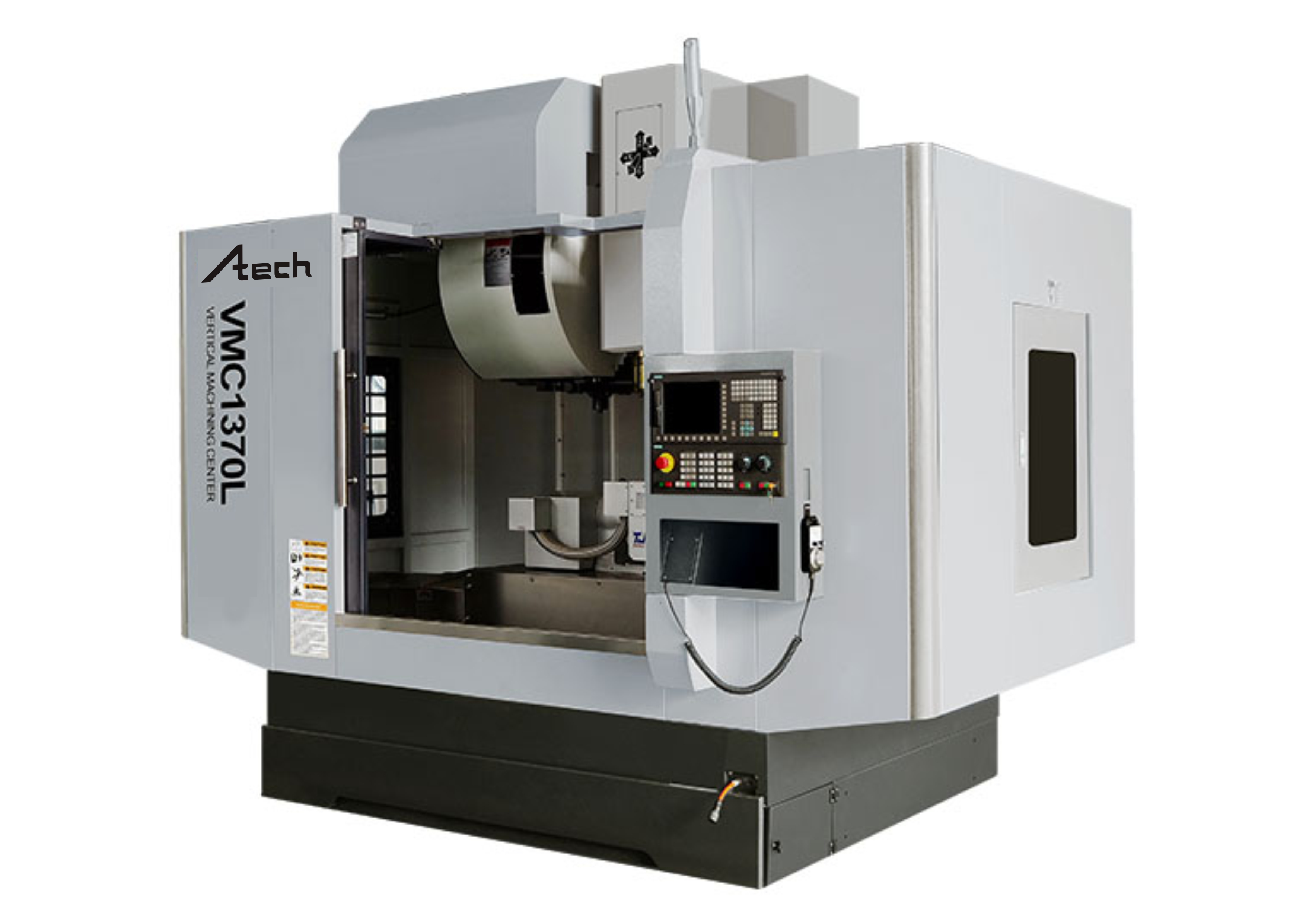

Description
Main Features
- High-rigidity design of the bed, servo, spindle, etc., enhances the extreme heavy cutting ability.
- It has good heavy cutting ability in plane milling, boring, drilling, and tapping.
- NTN bearing, THK/PMI/HIWIN linear guideway.
- Taiwan ROYAL/VYUCHENG/KENTURN spindle, standard 8000 rpm.
- BT40 spindle taper, 24t disc-type tool magazine.
Specification
| Specification | VMC1370L |
| Worktable | |
| Worktable size (L×W) | 1400×700mm |
| T-slots size (N×W×D) | 5-18x110mm |
| Travel | |
| X/Y/Z axis travel | 1300/700/700mm |
| Machining range | |
| Distance from spindle center to column | 750mm |
| Distance from spindle nose to worktable surface | 110-810mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 11kw |
| Max. spindle speed | 8000rpm |
| Feed | |
| Max. feed speed | 10m/min |
| Rapid feed speed (X/Y/Z) | 24/24/20m/min |
| Ball screw (diameter+lead) | |
| X/Y/Z axis ball screw | 4512 |
| Tool magazine | |
| Tool magazine capacity | 24T |
| Max. length of tool | 300mm |
| Tool change time | 1.5s |
| Positioning accuracy (National standard) | |
| Positioning accuracy (X/Y/Z) | ±0.008mm |
| Re-positioning accuracy(X/Y/Z) | ±0.003mm |
| Machine dimension | |
| L×W×H | 3200×2540×2600mm |
| Machine weight | |
| Max. loading of worktable | 1000kg |
| Machine weight | 8200kg |
Machine details
GSK, Fanuc, Siemens controller as optional selection
Disc Type ATC
Spindle unit BT40 of VMC

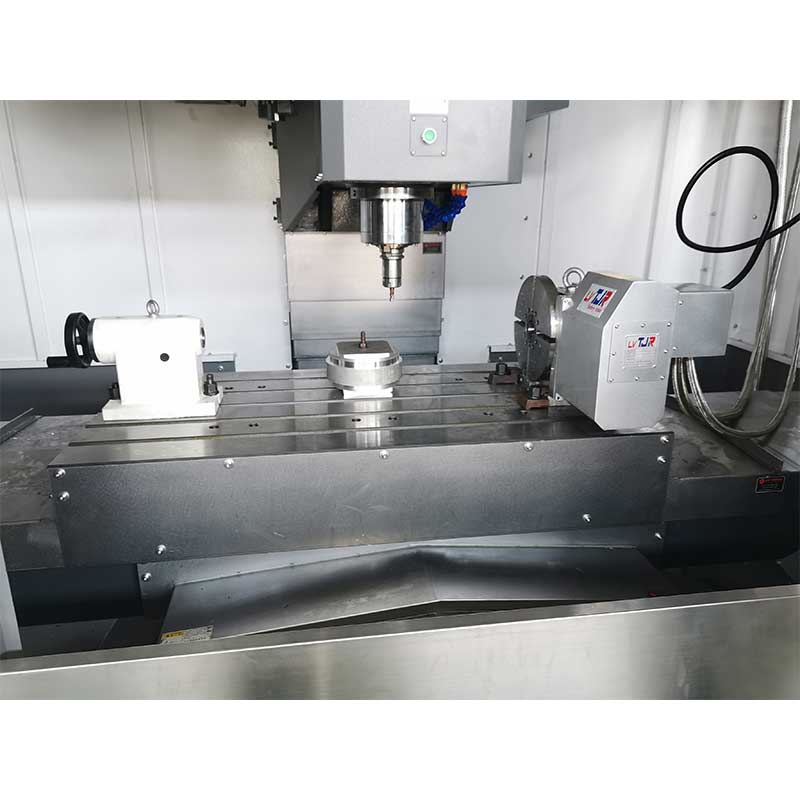

5 Axis as Optional
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
