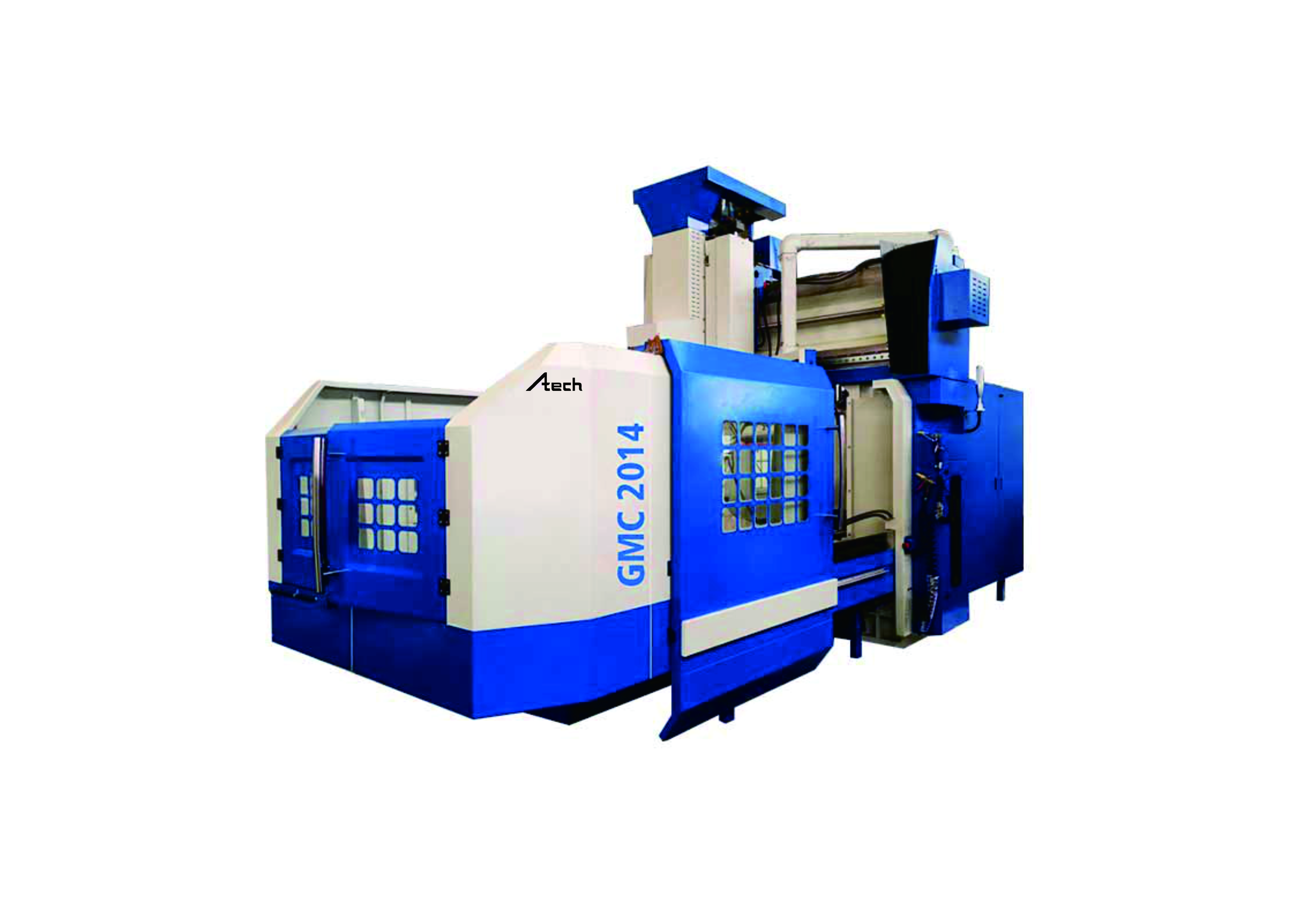

Gantry Milling Machine GMC2014

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Main Features

  • FANUC 0i MF5 CNC Controller.
  • Double column machining center with Taiwan Deta 24 disc type tool magazine.
  • BT50-155 Taiwan spindle 6000rpm.
  • Chain-type chip conveyor.



Specification

Specification Unit GMC2014
Table size mm 2000*1000
Max. table loading ton 6
Table travel X axis mm 2100
Table travel Y axis mm 1400
Table travel Z axis mm 800
Spindle nose to table surface mm 150-950
Distance between two column mm 1400
Spindle speed range and driving method rpm 6000 belt driving
Spindle taper / BT50
Spindle diameter mm 155
Rapid traverse speed – X axis mm/min 12000
Rapid traverse speed – Y axis mm/min 12000
Rapid traverse speed – Z axis mm/min 10000
Feed rate (X / Y / Z axes) mm/min 8000
Number of tool magazine–opt. / 24/opt.-32
Tool magazine type / Disc type
CNC Controller / FANUC/Siemens
Spindle motor power (straight/15 minutes) kw 15/18.5
Positioning accuracy (JIS standard) mm ±0.005/300
Repeatability Positioning accuracy (JIS standard) mm ±0.003/1000
Net weight ton 15
Overall size mm 5200*3400*4000



Tersedia juga model lain.

Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)



Additional information

Weight 15000 kg
