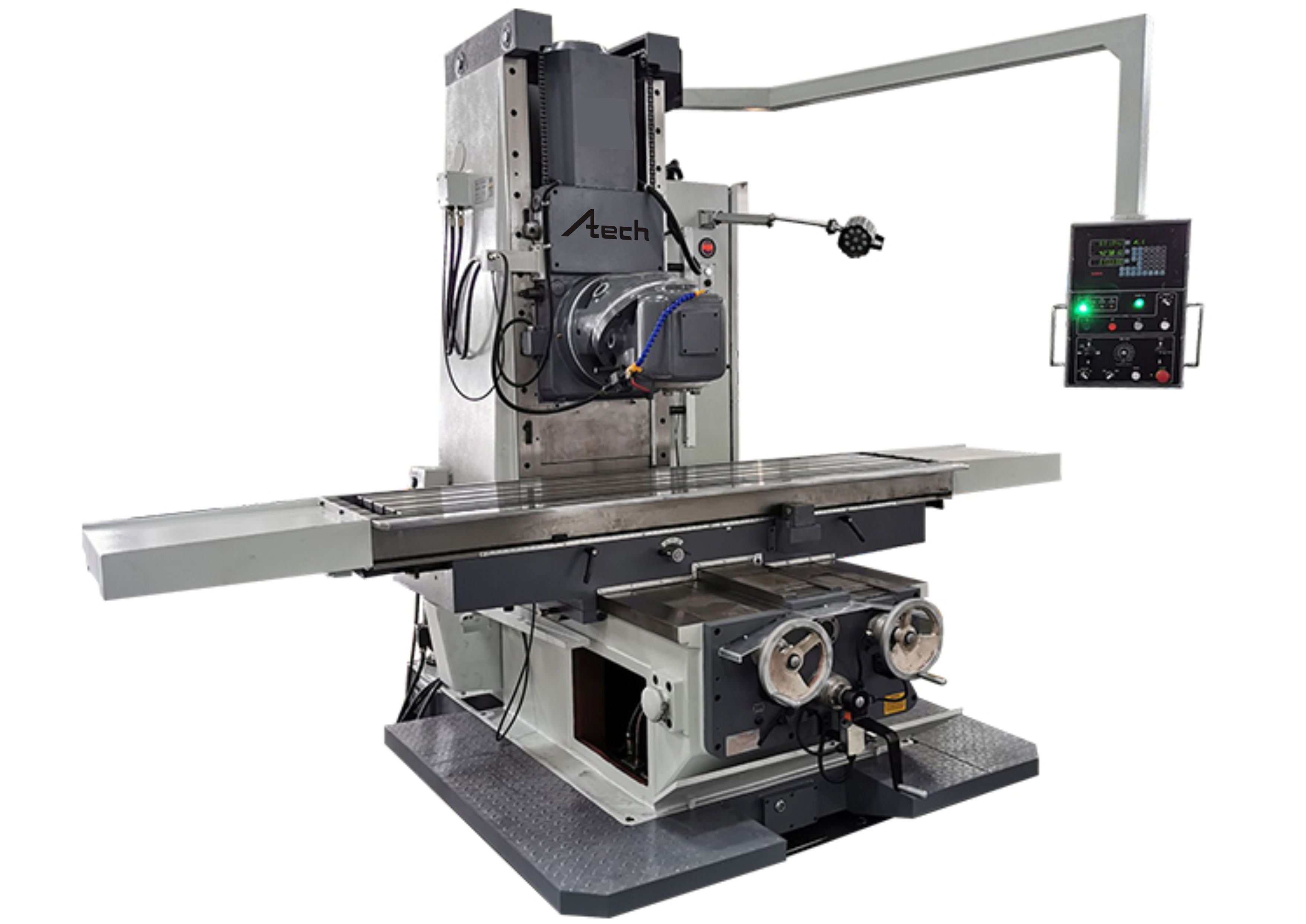

Description
Features
-
Rigid grey cast-iron construction allows heavy workload
-
Universal milling head system “Huron” can be adjusted to various angles
-
Solid flat guiding guarantees stability at heavy milling
-
Complete with swivel arm and clearly arranged control panel
-
Inductive hardened and polished guidings
-
Stepless feed adjustments in all axis
-
Reinforced saddle in robust box construction
-
Precisely polished table, ideally positioned on the wide saddle
-
Column and stand in solid box construction
Specification
| Specification | X715 |
| Table size | 2100x500mm |
| T slot | 4 |
| Size ( Width ) | 20mm |
| Centre distance | 100mm |
| Max. load of Table | 2000 |
| Longitudinal travel | 1500mm |
| Cross travel | 670mm |
| Vertical travel | 670mm |
| Spindle taper | ISO50 7:24 |
| Spindle speed /step | (60HZ)40-1600rpm/12 (50HZ)35-1345rpm/12 |
| Spindle axis to column surface | 610mm |
| Spindle nose to table surface | 0-670mm |
| Longitudinal/cross feed | 20-1800mm / min |
| Vertical | 10-900mm / min |
| Longitudinal/cross rapid speed | 3500mm / min |
| Rapid Traverse vertical | 1750mm / min |
| Main motor | 7.5kw |
| Feed motor | 2kw |
| Elevating motor for headstock | 2kw |
| Coolant motor | 550w |
| Package dimension | 2280x2280x2820mm |
| Overall dimension | 3300x2380x2750mm |
| N.W/G.W | 7300/8000kgs |
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
