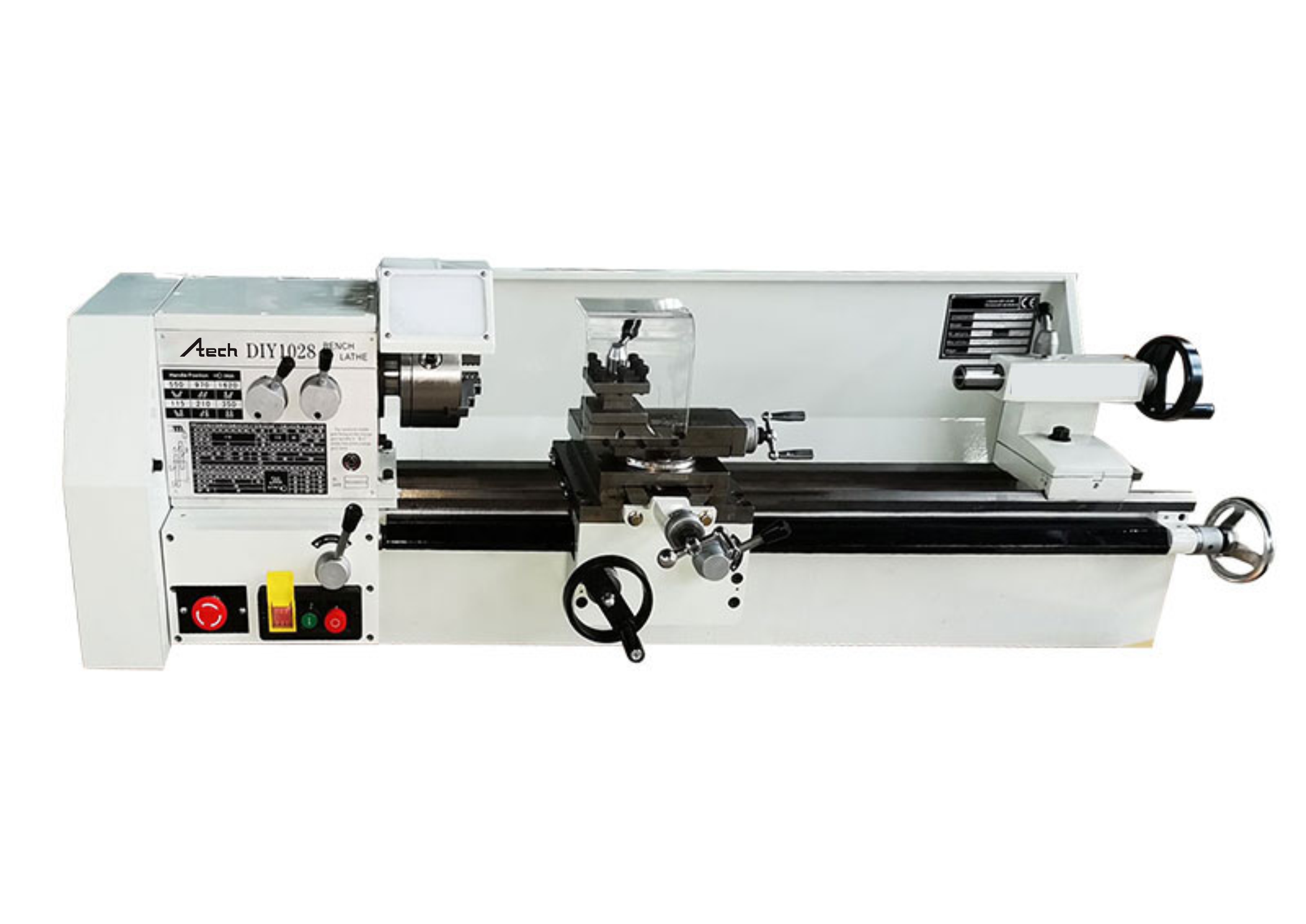

Bench Lathe DIY1028

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: , ,

Description

Main Features

  • Gear driven small lathe.

  • Fast speed change.

  • Household using widely.

  • Turn metric, inch thread and drilling.



Specification

Specification DIY1028
Distance between centers 450/ 700mm
Swing over bed Φ250mm
Taper of spindle bore MT4
Spindle bore Φ27mm
Step of spindle speeds 6 steps
Range of spindle speeds 115-1620rpm
Range of inch threads 8-56T.P.I
Range of metric threads 0.2 -3.5mm
Travel of cross slide 140mm
Taper of tailstock quill MT3
Main Motor 750W
Packing size 1260/1510×570×580mm
Net/gross  weight 151kg / 171kg





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 171 kg
