Description
Main Features
- Spindle unit BT40 with 8000/10000rpm.
- Disk type ATC 24pcs by OSHIMA Brand
- FANUC 0i MF(5) as standard CNC controller system, and Mitsubishi System or Siemens system as optional selection.
- Optimized Structure of Heavy Rail Linear Guide
- Suitable for machining parts of automobile, mold industry and so on.
Specification
|
Specification
|

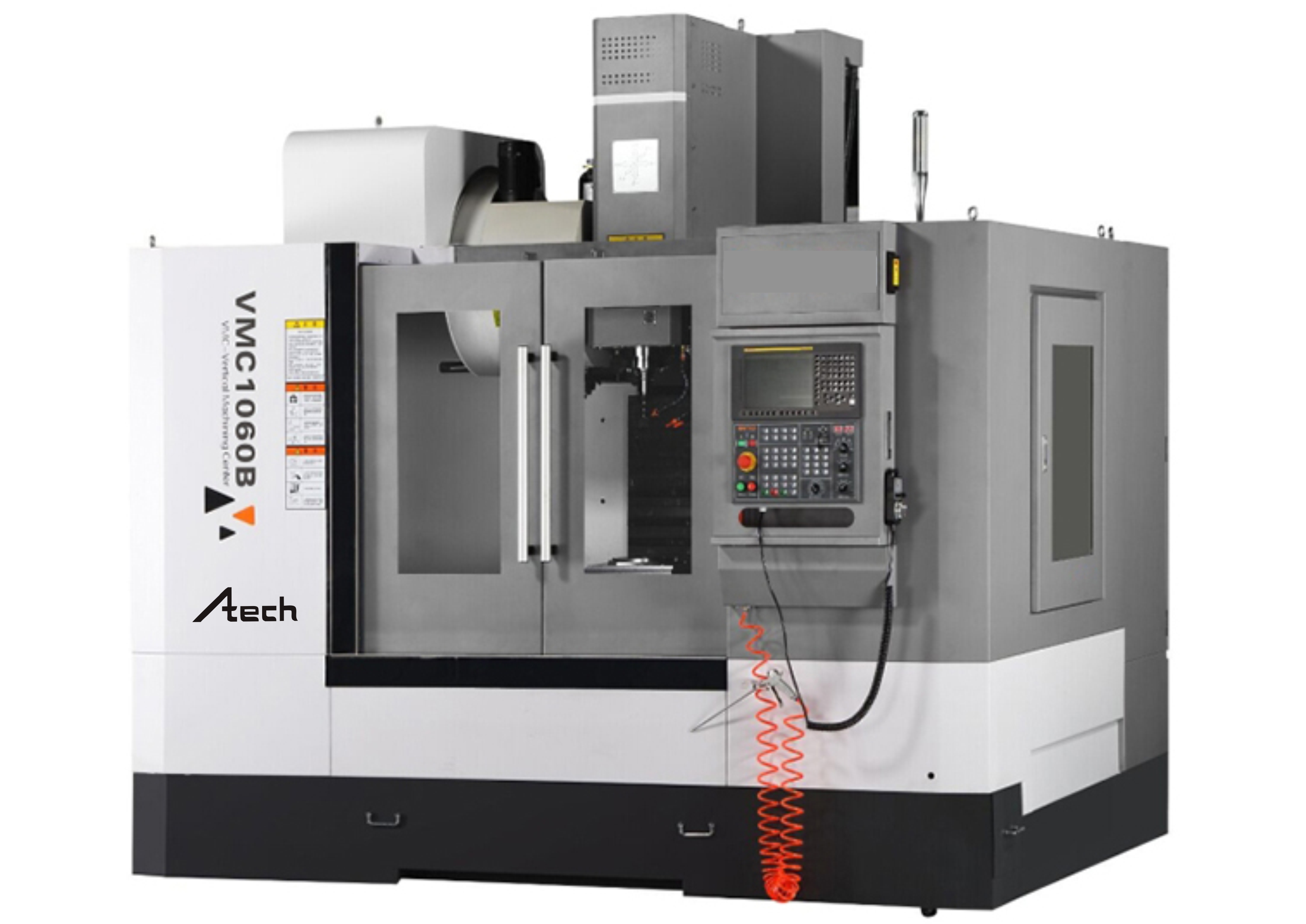

VMC1060B
|
|
Worktable size（LxW）
|
1200x600mm
|
|
T-slot (NxWx D)
|
5x18x115mm
|
|
X/Y/Z axis travel
|
1000/620/630mm
|
|
Distance from spindle center to column
|
667mm
|
|
Distance from spindle nose to worktable surface
|
110-740mm
|
|
Spindle taper
|
BT50
|
|
Spindle power
|
11/15kw
|
|
Max.spindle speed
|
8000/10000rpm
|
|
Max.feed speed
|
12m/min
|
|
Rapid feed speed（X/Y/Z)
|
36/36/32m/min
|
|
X/Y/Z axis ball screw
|
4016
|
|
Tool magazine capacity
|
24t
|
|
Tool change time(T-T)
|
2.5s
|
|
Positioning accuracy（X/Y/Z)
|
±0.010mm
|
|
Re-positioning accuracy（X/Y/Z)
|
±0.005mm
|
|
LxWxH
|
2850x2450x2850mm
|
|
Max.loading of worktable
|
800kgs
|
|
Machine weight
|
6800kgs
|
Machine details
GSK, Fanuc, Siemens controller as optional selection
Disk type ATC 24pcs
Spindle unit BT40
Linear guideway
