Description
Main Features
- Heavy-duty LM guideway support bearing
- Larger motor power
- Large guideway span
- Heavier machine weight
- BT40-150 type big spindle with 8000rpm

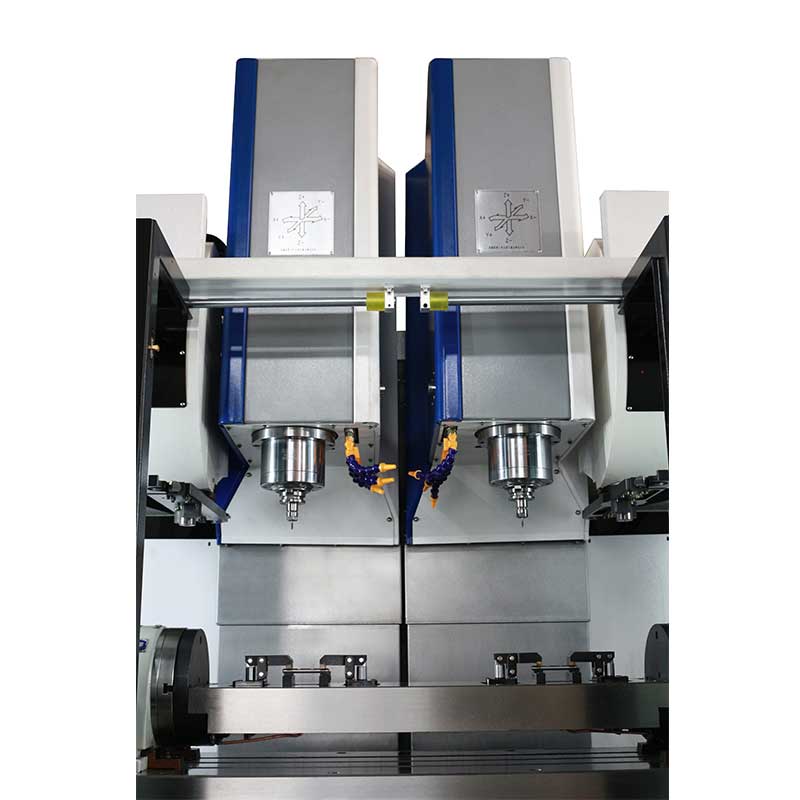

- Dual-spindle, Dual ATC, Dual Z Axis
Specification

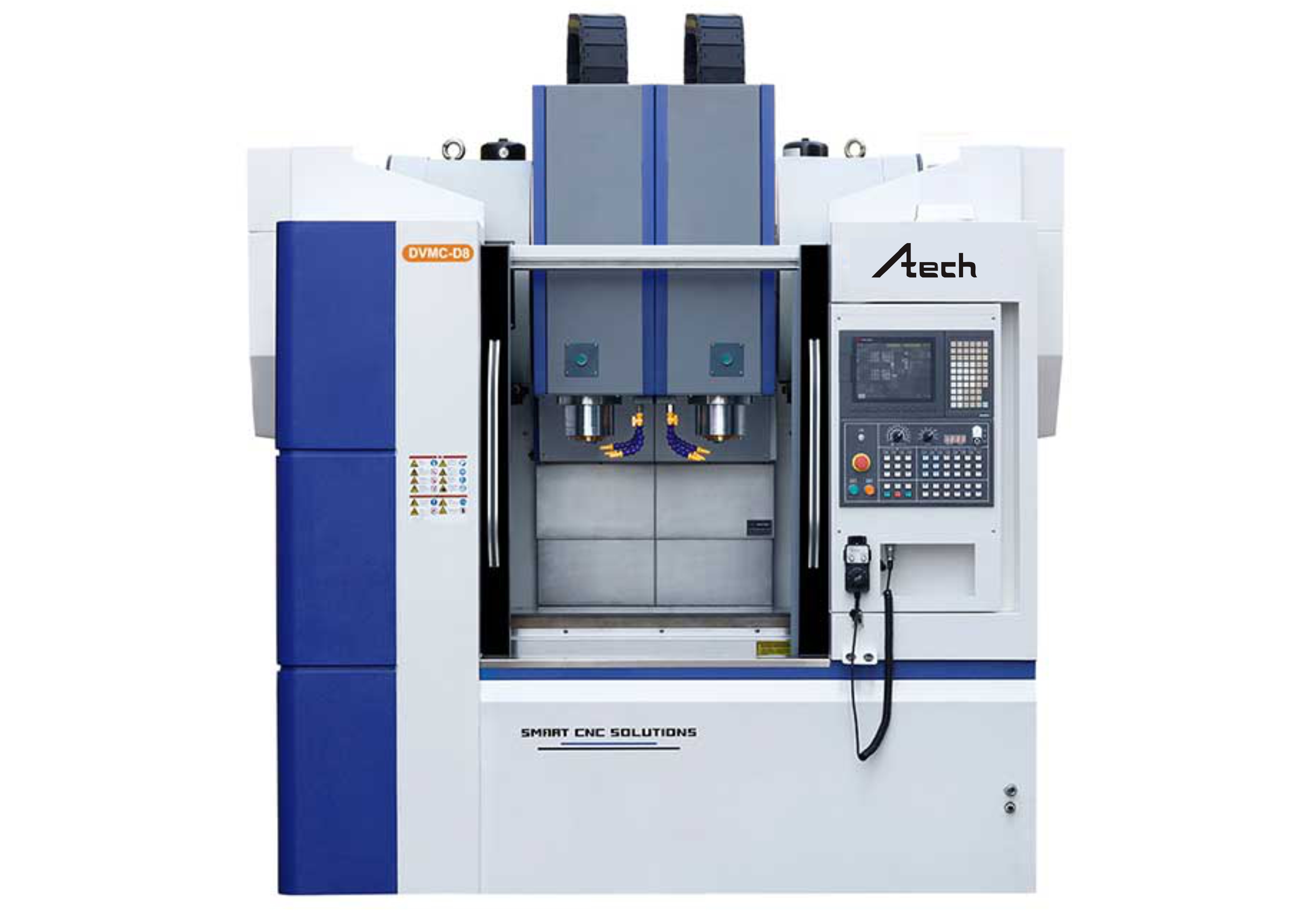

| Specifications | DVMC-D8 |
| Worktable size | 1300×520mm |
| T-slot | 18×5×90mm |
| Max. loading of worktable | 600kg |
| Spindle center to column distance | 580mm |
| Spindle nose to table distance | 130-700mm |
| Rail type | Linear Guideway |
| Spindle taper | BT40 |
| Spindle speed | 8000/12000rpm |
| Main motor power | 7.5/11kw |
| X axis travel | 650mm |
| Y axis travel | 500mm |
| Z axis travel | Z1:570 Z2:570mm |
| X/Y/Z rapid traverse | 30000mm/min |
| Tool magazine capacity | 24* |
| Max.weight of tool | 8* |
| Positioning accuracy | ±0.006mm |
| Re-positioning accuracy | ±0.003mm |
| Air pressure | 0.5-0.8mpa |
| Coolant | air conditioning |
| Overall dimension(LxWxH) | 3250×2800×2950mm |
| Weight | 7500kgs |
Tersedia juga model lain.
