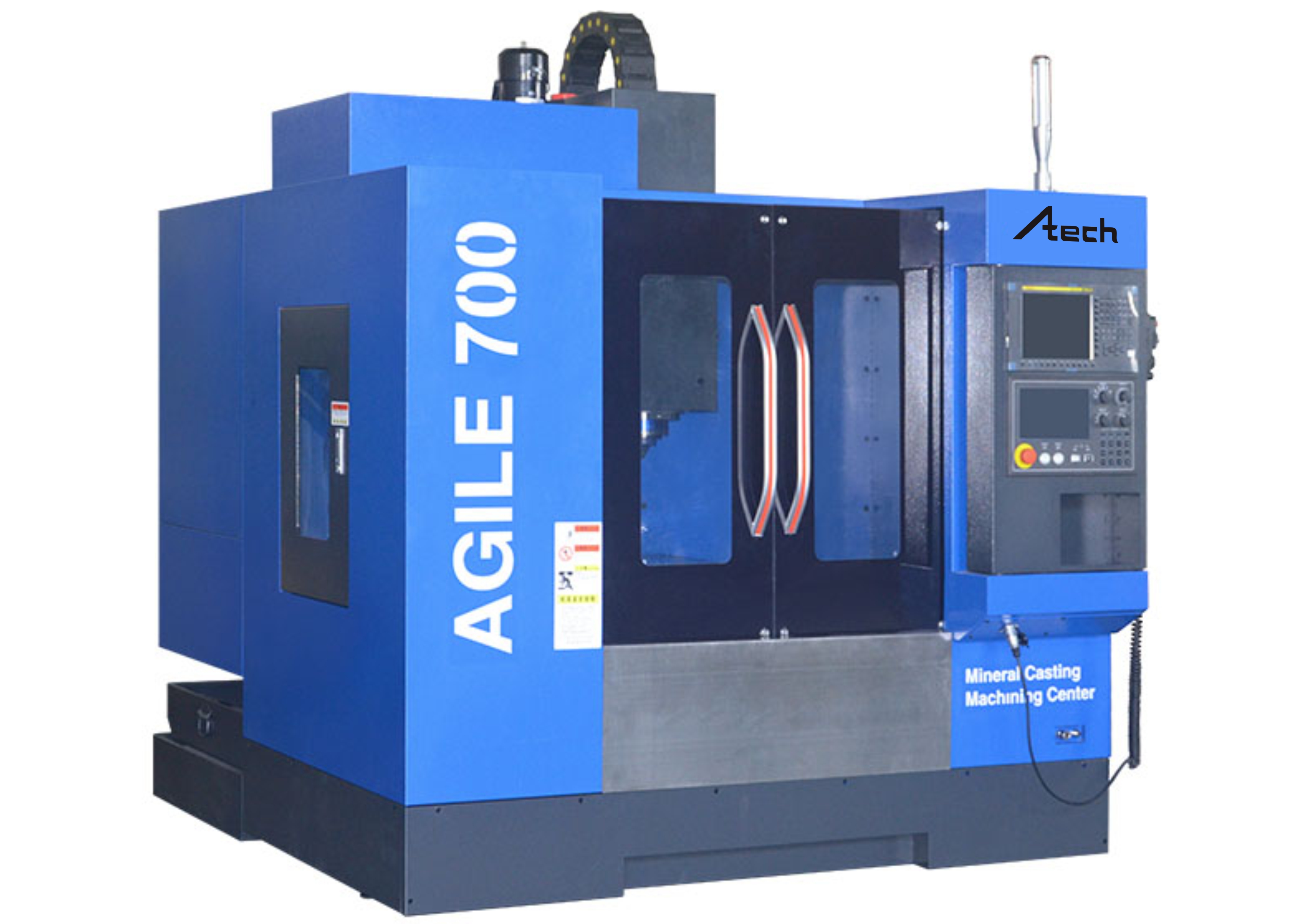

Description
Main Features
1.The whole machine tool adopts full protection design, and through the optimized design of man-machine interface, the operator can work in a safe and comfortable environment.
2.X/Y/Z three axes adopt: high-precision linear guideway; high-precision ball screw.
3.The spindle adopts forced circulation cooling system, standard configuration spindle thermostatic oil cooler, through the cooling oil circulation refrigeration, to ensure the spindle temperature stability, extend the life of the spindle bearings, for processing to provide a more stable performance.
4.The electrical control cabinet adopts fully closed structure. It can prevent dust and oil mist, has good sealing, and the air inside and outside the cabinet is not directly exchanged. The machine control cabinet is equipped with constant temperature air conditioner for temperature adjustment and air purification inside the control cabinet to ensure the stability and reliability of the electrical control.
Specification
| Specification | AGILE 700 |
| X/Y/Z axis travel | 700×400×500mm |
| Distance from spindle center to column | 430mm |
| Distance from spindle nose to workable surface | 130mm |
| Mesa form | T-slot |
| Worktable size(L×W) | 800×400mm |
| Max.loading of worktable | 160kg |
| Spindle taper | BT30 |
| Spindle speed | 24000rpm |
| Power transmission mode | motorized spindle |
| Rapid feed speed(X/Y/Z) | 48/48/48m/min |
| Tool number | 20 position |
| Tool selection method | Bothway |
| Tool change time | 1.8s |
| Maximum diameter of adjacent tool | 80mm |
| Tool length | 200mm |
| Tool weight | 6kg |
| Main motor power(V/H) | 6.2/7.5kw |
| X/Y/Z feed motor power | 1.8/1.8/3 |
| Overall positioning accuracy | 0.008mm |
| Repositioning accuracy(X/Y/Z) | 0.005mm |
| Guideway type | Linear guide rail |
| Cutting fluid tank | 150L |
| Lubrication system | 3L |
| CNC system brand | FANUC 0i MF plus |
| Barometric demand | 0.55-0.65mpa |
| power capacity | 25kva |
| Machine weight | 3600kg |
| Floor space | 1970×2200mm |
Machine Details
The machine tool is an industrial master machine.Mainly used in ships, automobiles, power generation equipment, auto parts, molds, mining equipment, etc.
Compared to gray castings and welded structures, it has significantly better damping properties.This ensures greater dynamic stability of the bed structure in ultra-fast and high-precision production machines. lts excellent thermal stability means that it is not susceptible to short-term temperature-related effects.
