Description
Main Features

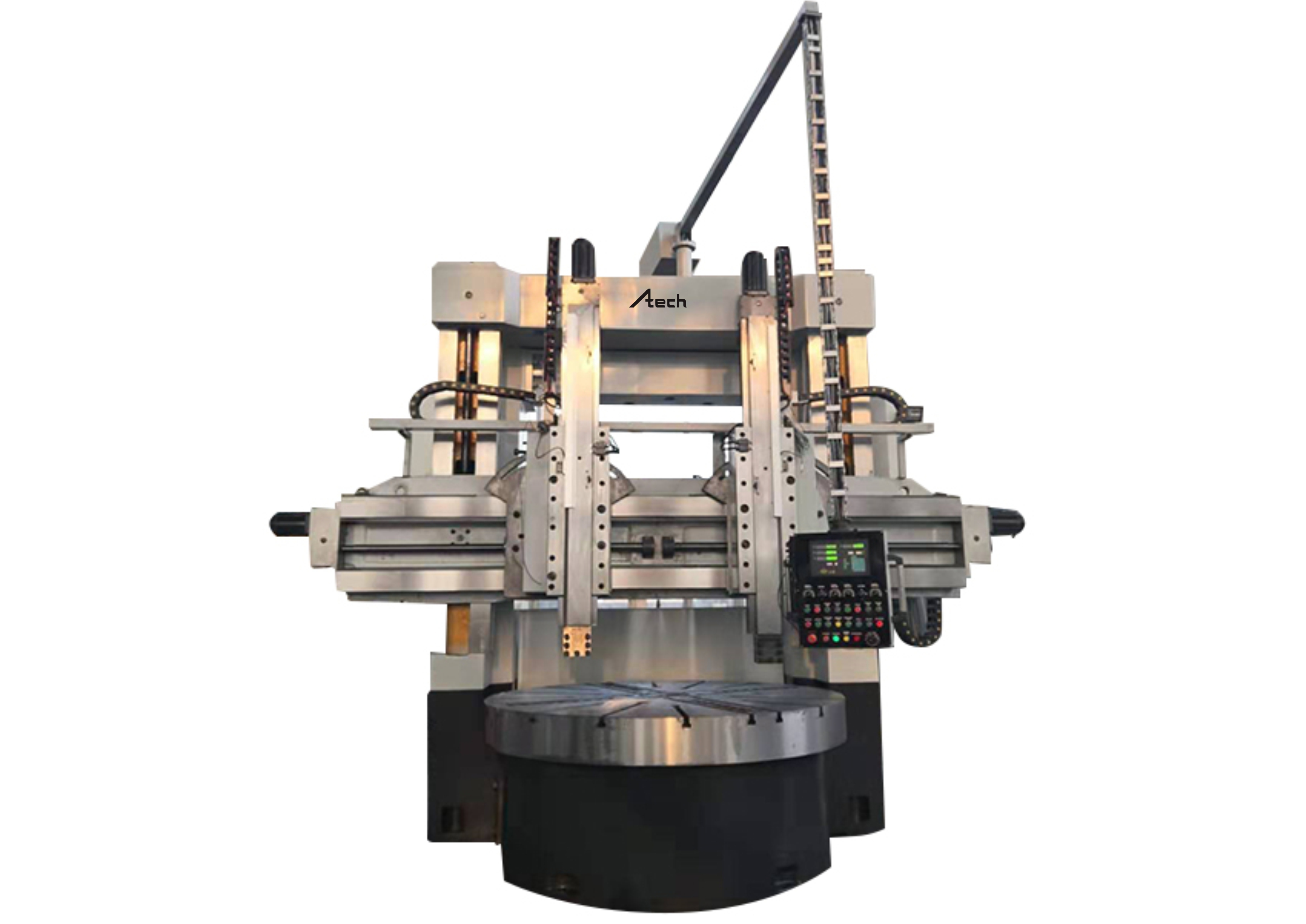

- Conventional vertical lathe machine with double column;
- Rigid column and stable;
- DRO optional;
- Precise cutting for heavy metal parts.
Specification
|
Name
|
Unit
|
DVT5225
|
|
Max. cutting diameter of workpiece
|
mm
|
2500
|
|
Workbench diameter
|
mm
|
2250
|
|
Max. height of workpiece
|
mm
|
1600
|
|
Max. weight of workpiece
|
t
|
10
|
|
Workbench speed range
|
r/min
|
2~63
|
|
Workbench speed series
|
step
|
16 steps
|
|
Max. cutting force of right knife rest
|
kn
|
35
|
|
Max. cutting force of left knife rest
|
kn
|
30
|
|
Max. workbench torque
|
kn.m
|
63
|
|
Feeding rang of kinfe rest
|
mm/min
|
Variable speed
|
|
Rapid movement speed of toolpost
|
mm/min
|
Variable speed
|
|
Beam movement speed
|
mm/min
|
350
|
|
Turning angle of vertical slide
|
30
|
|
|
Knife carrier size(W*H)
|
mm
|
40×50
|
|
Main motor power
|
kw
|
DC55
|
|
Machine dimensions(L*W*H)
|
mm
|
5180X5200X4870
|
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
