Description
Specification
| Specifications | D180V |
| Max. swing over bed | 180mm |
| Max. swing over cross slide | 110mm |
| Max. compound slide travel | 55mm |
| Max. carriage slide travel | 75mm |
| Max. carriage travel | 195mm |
| Distance between centers | 300mm |
| Width of bed | 100mm |
| Spindle bore | 21mm |
| Spindle taper | MT3 |
| Spindle speed | Variable: 50-2500rpm |
| Range of metric threads | 10 kinds: 0.5-3mm |
| Range of imperial threads | 8 kinds: 8-44 T.P.I |
| Max. travel of tailstock quill | 60MM |
| Tailstock taper | MT2 |
| Motor power | DC motor:450W or 600W,Optional brushless motor:550W |
| N.W./G.W. | 60/70kgs |
| Machine size(LXWXH) | 740x390x370mm |
| Packing size | 800x480x450mm |

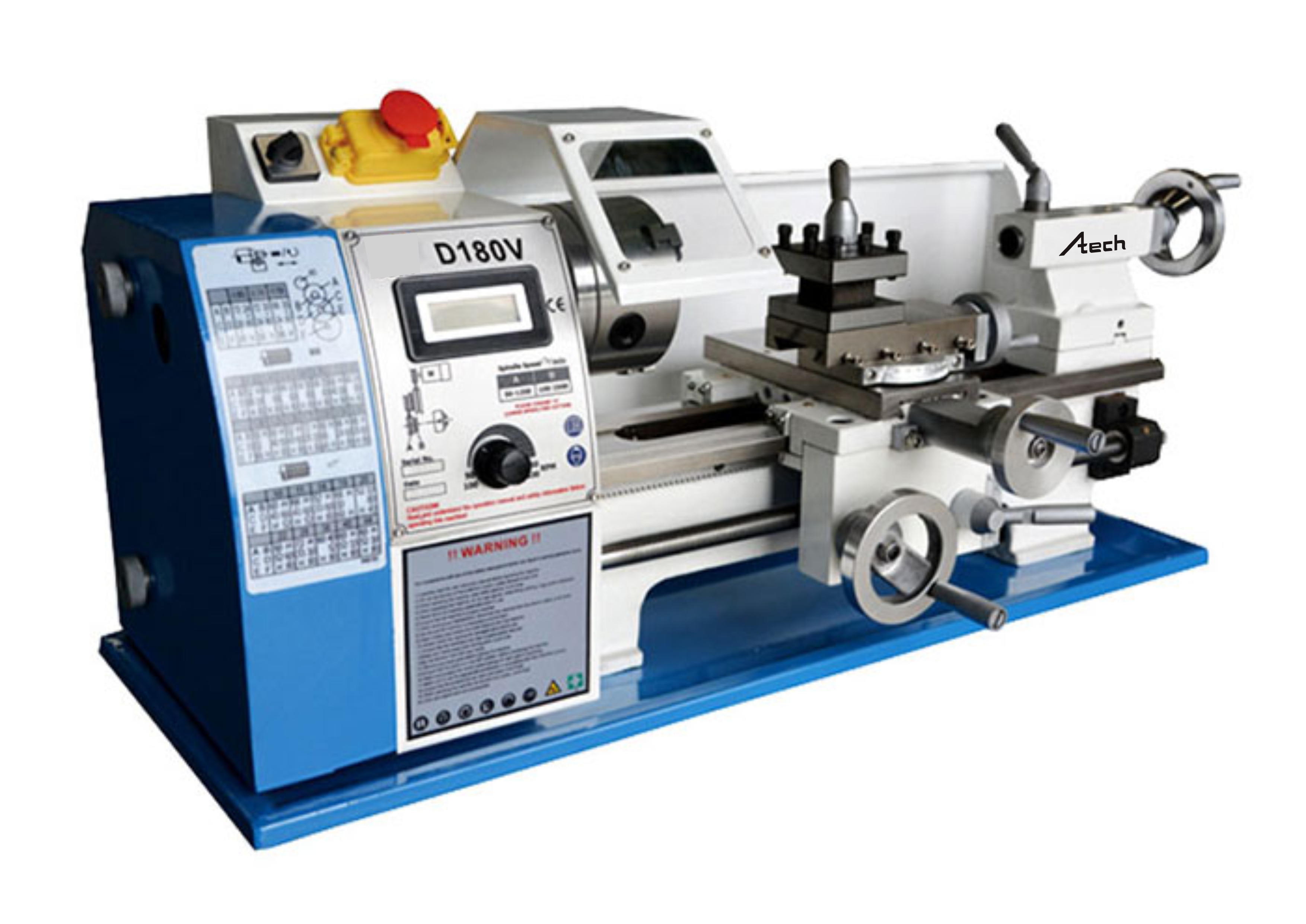

Machine Pictures
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
