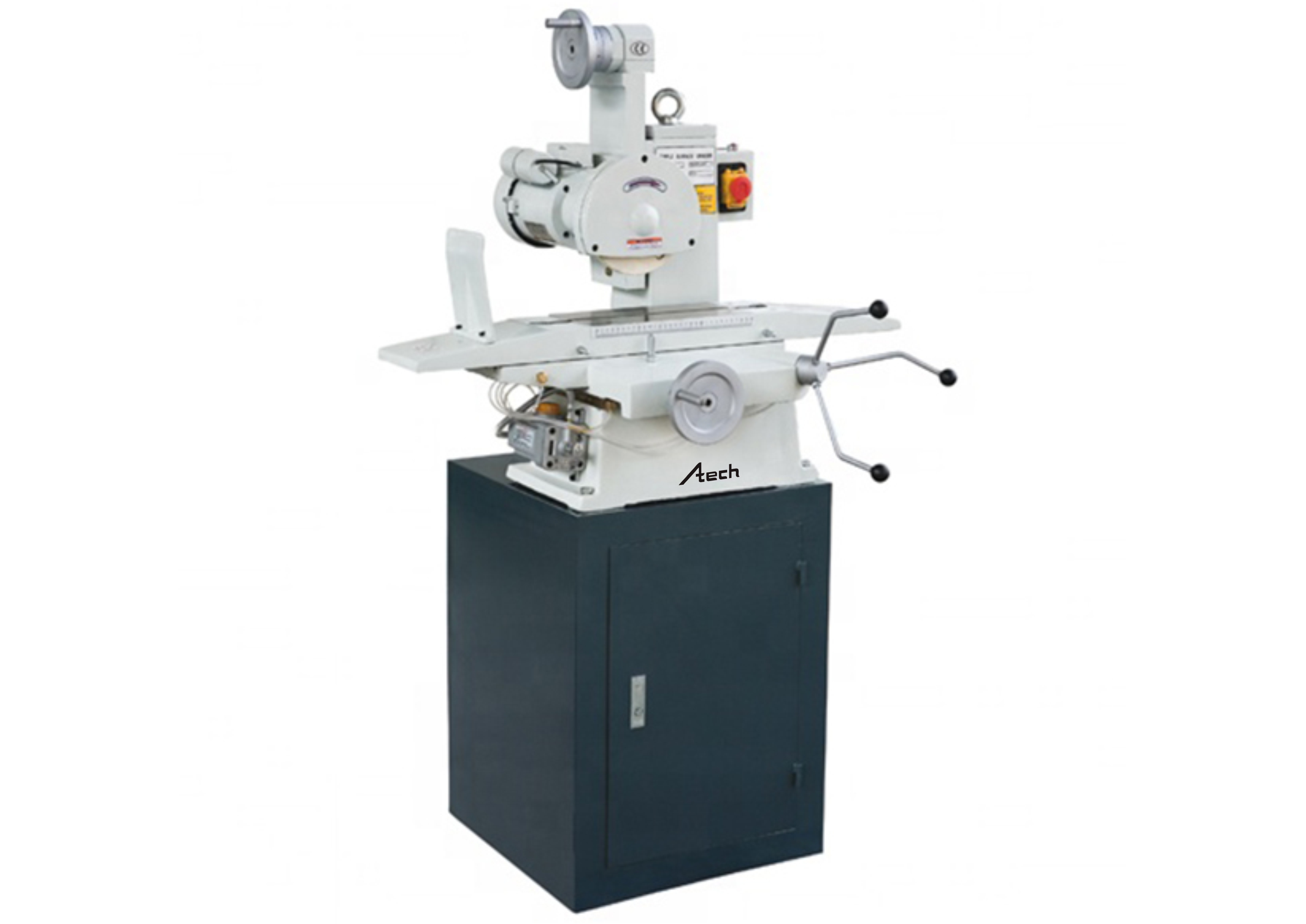

Surface Grinding Machine MJ7115

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Main Features

  • Integrated grinding head of high quality, high rigidity and accuracy.
  • Small size, light weight, easy operation & maintenance.
  • Centralized lubrication



Specification

Specifications MJ7115
Longitudinal stroke 340mm
Lateral stroke 170mm
Grinding height 210mm
Area of table 152mm×304mm
Width of T-slot 1-12mm
Cross feed per graduation 0.02mm
Cross feed per round 2.54mm
Vertical feeds per graduation 0.025mm
Vertical feed per round 1.25mm
Roughness 1.6μm
Grinding wheel 180mm×32mm×13mm
Power of motor 0.55kw
N. W. / G.W.of machine 210/258kg
N. W. / G.W.of stand 30/54kg
Overall dimension of machineL×W×H 930×780×730mm





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 258 kg
