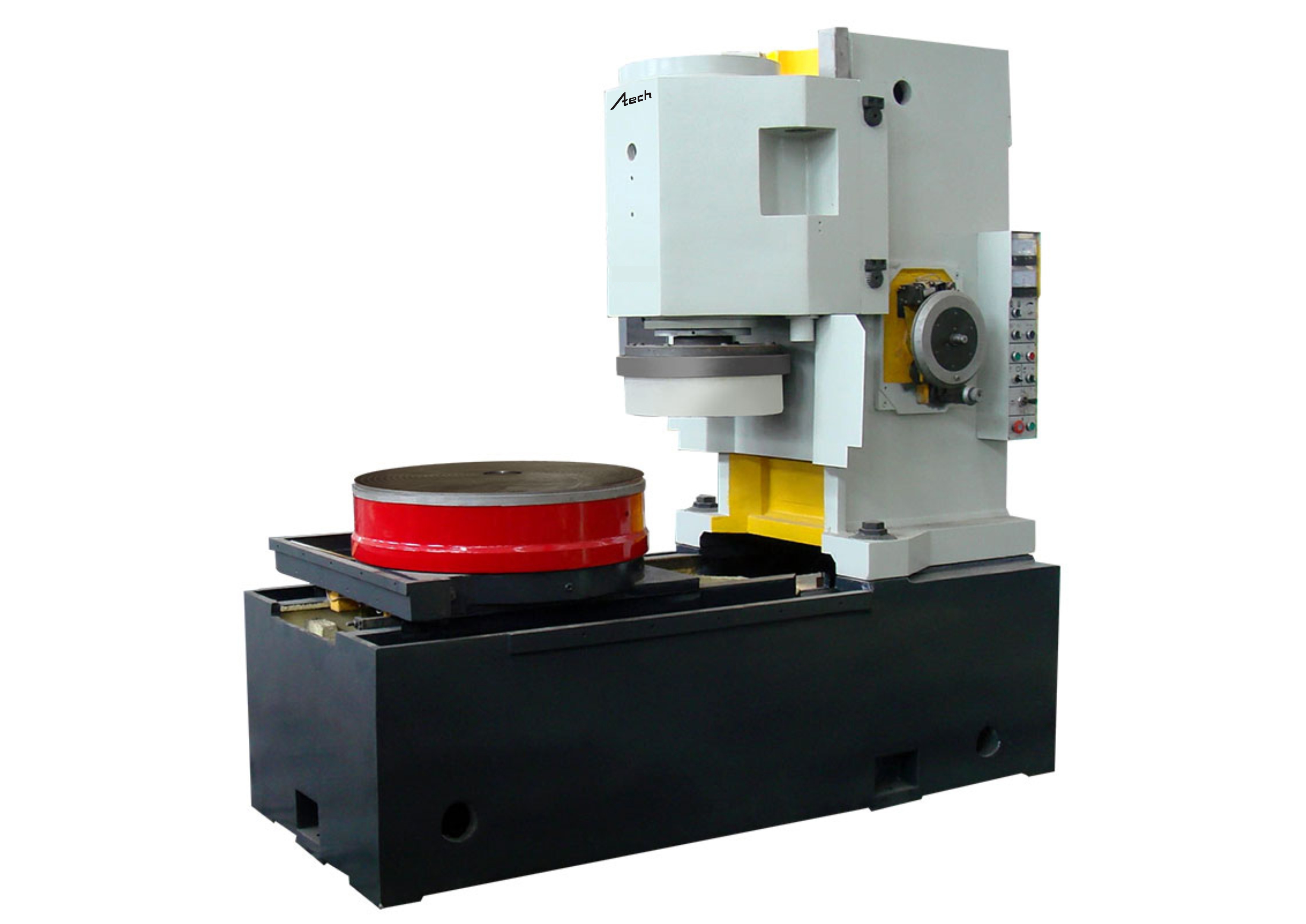

Description
Main Features
- Column using three-point adjustment, compact structure.
- Bench is a circular Powerful Electric Magnetic Chuck.
- Magnetic smooth and adjustable, accuracy, stability.
- Big power, SCR Charger demagnetization. And is equipped with cooling fluid purification equipment and so on.
- This grinder is mainly used to rough pieces and general precision grinding of large parts, the surface roughness up to 0.8μ or more parallelism 0.015/1000mm within.
- Especially suitable for tools, dies, metallurgy, saw blades, automobiles, tractors, bearings and other industries in large parts grinding.
Specification
| WMT7475B | unit | Specification |
| Table diameter | mm | Φ780 |
| Work piece grinding the maximum size (Diameter × height) | mm | Φ780*300 |
| Table speed | r/min | 11/22 |
| Worktable moving distance | mm | 450 |
| Worktable moving speed | m/min | 3.7 |
| Wheel Size (Sand-watt available) | mm | 450*380*150 |
| 125*85*35 | ||
| Grinding head main spindle speed | r/min | 980 |
| Grinding head vertical movement distance | mm | 470 |
| Grinding head fast movement speed | m/min | 0.22 |
| Grinding head motor feed speed range | mm/min | 0.08-1.2 |
| Handwheel per revolution grinding head vertical movement distance | mm | 0.5 |
| Dial lap grinding head vertical movement distance | mm | 2.5 |
| Dial Each grid grinding head vertical movement distance | mm | 0.01 |
| Grinding head motor power | KW | 25 |
| Grinding head lift motor power | KW | 0.75 |
| Worktable move motor power | KW | 0.75 |
| Worktable rotation motor power | KW | 3 |
| Cooling motor power | KW | 0.25 |
| Magnetic Separator motor power | KW | 0.18 |
| Machine Total Power | KW | 30 |
| Machine weight (Host) | T | 6 |
Tersedia juga model lain.
