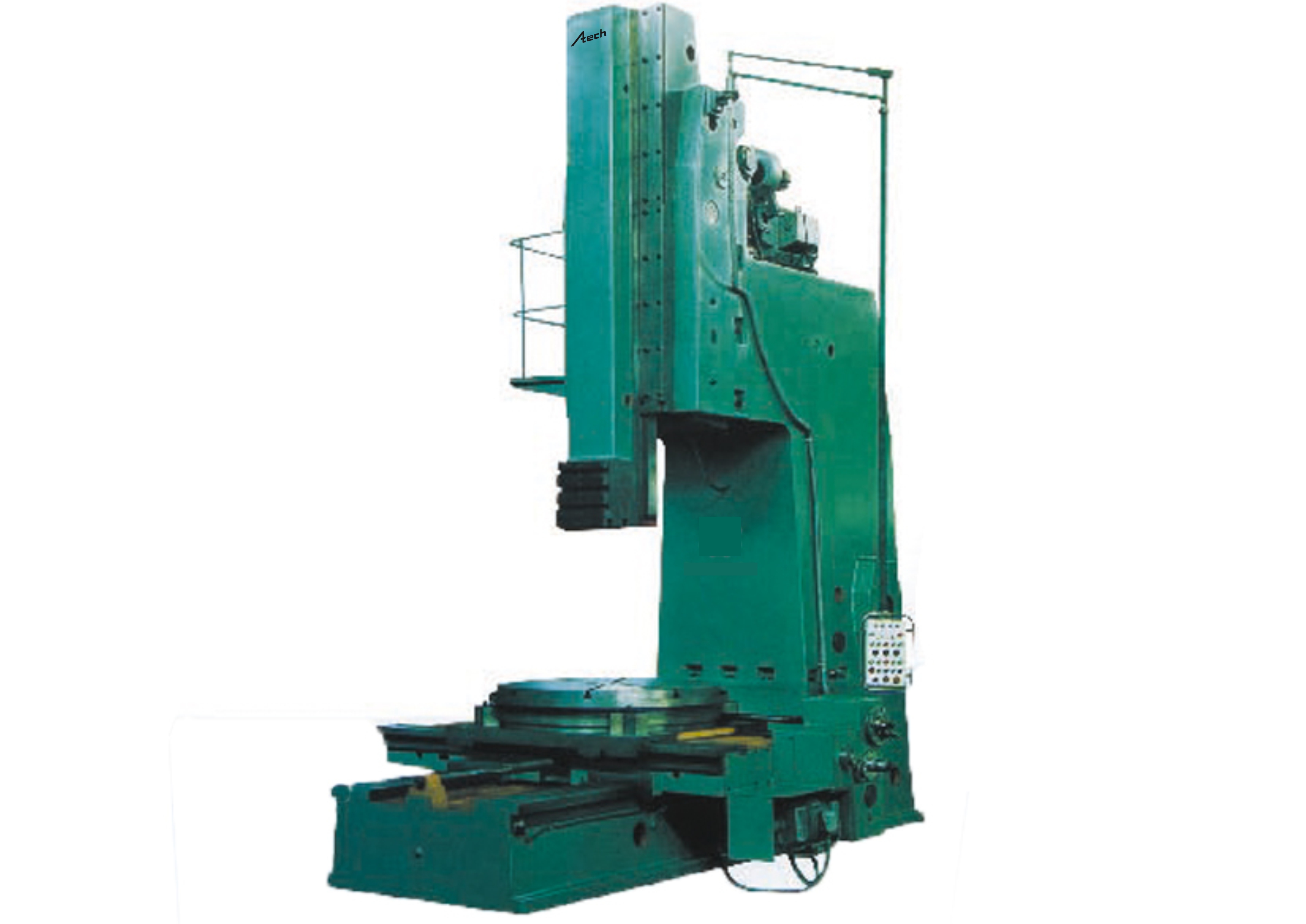

Description
Main Features
- The slide bed, work table and oil pump are driven by separate electric motors
- The cutting speed can be step-less adjusted.
- Machine has various safety devices like electromagnetic automatic knife lifting of the tool holder and bar
- The tool holder is used for external cutting, and the tool bar is used for interpolation and keyway.
Specification
| Specification | BC50125 |
| Maximum cutting length(interpolated inner hole 850mm) | 1250mm |
| Cutting stroke speed | 4-30m/min |
| Return travel speed | 7-30r/min |
| Maximum weight for pluggable work | 450kg |
| Main drive motor power | 37kw |
| Allow maximum cutting force(when the stroke speed is 16m-20m) | 24500N |
| Table diameter | 1400mm |
| 縱向1400mm | |
| Maximum movement of the workbench | 横向1120mm |
| 回轉360° | |
| Distance from the tool support surface to the front wall of the bed | 1600mm |
| Feed range | 0.2-3mm/double stroke |
| Landscape | 0. 2-3mm/double stroke |
| Circumference (on the circumference of 700） | 0. 1-5mm/double stroke |
| Distance from work surface to the lower end of the carriage | 1650mm |
| Workbench quick shift: portrait and landscape | 500mm/min |
| Machine dimensions(length x width x height） | 4600×3200×5300mm |
| Total machine weight(including electrical equipment） | 26T |
Tersedia juga model lain.
