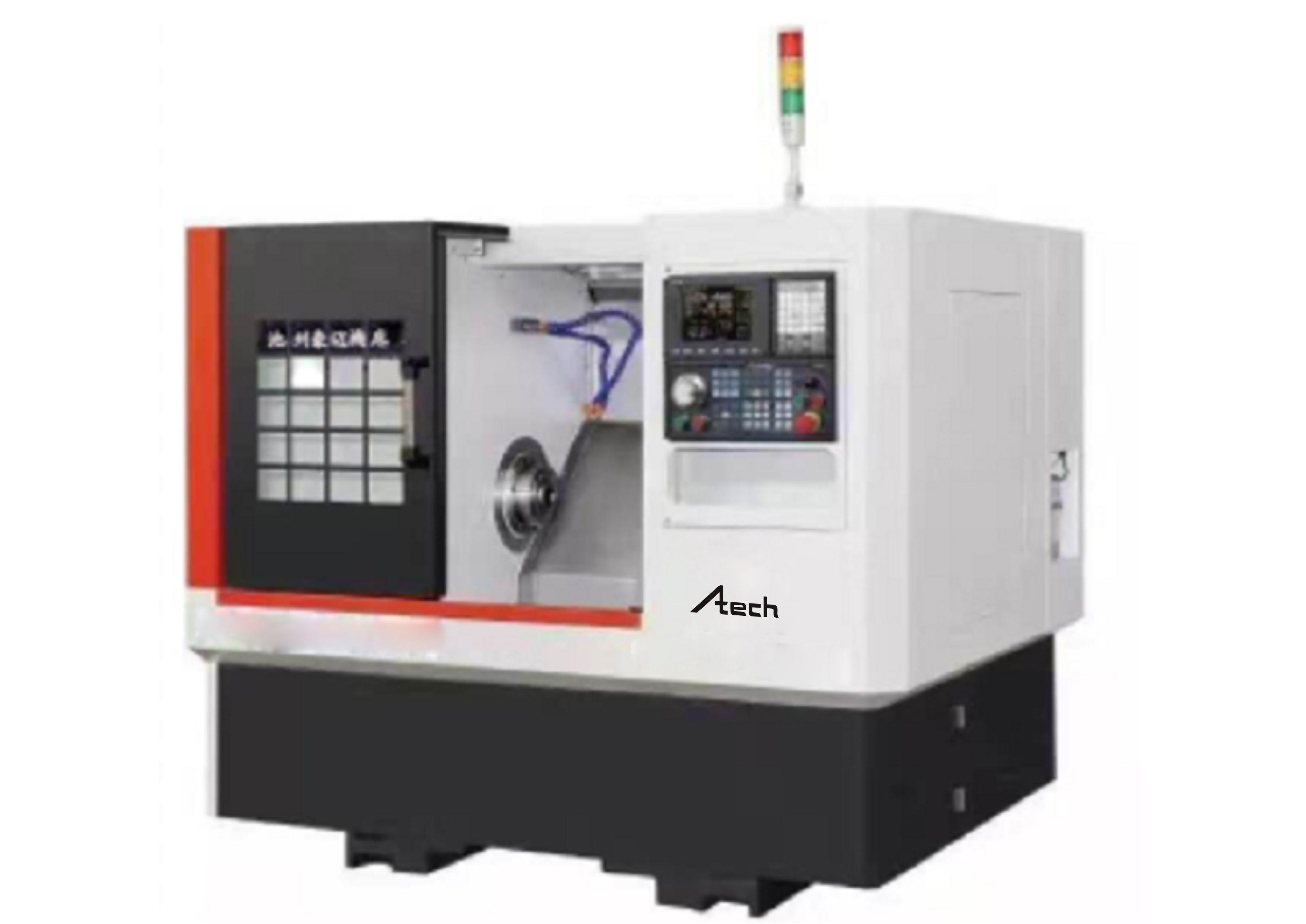

Description
Main Features
- High precision:2-axis linear way, high-precision linear guide rdeuce wear and tear.
- Screw in the center of guide way enhances the stability of the machine tools.
- Tool post are used to improve the processing efficiency, accuracy and stability triangular.
- Enclose can be fixed with GSK, or Siemens controlling system.
Specification
| Specifications | CK6336 |
| Max.swing over bed | 400mm |
| Max.swing over cross slide | 180mm |
| Max.machining length | 200mm |
| X/Z axis travel | 400/300mm |
| Spindle unit | 140mm |
| Spindle nose | A2-5 |
| Spindle bore | 48mm |
| Bar capacity | 40mm |
| Max.spindle speed | 4000rpm |
| Chuck size | 6″ |
| Spindle motor power | 3.7kw |
| X/Z axis repeatability | ±0.003mm |
| X/Z axis feed motor torque | 6/6N.m |
| X/Z rapid traverse | 18/15m/min |
| Tool post type | Gang tools/optional for turret |
| Cutting tool shape size | 20x20mm |
| Guide form | 45 degree |
| Total power capacity | 9/11KVA |
| Machine dimension(LxWxH) | 2200x1530x1780mm |
| Heavy weight | 2200kgs |
Tersedia juga model lain.
