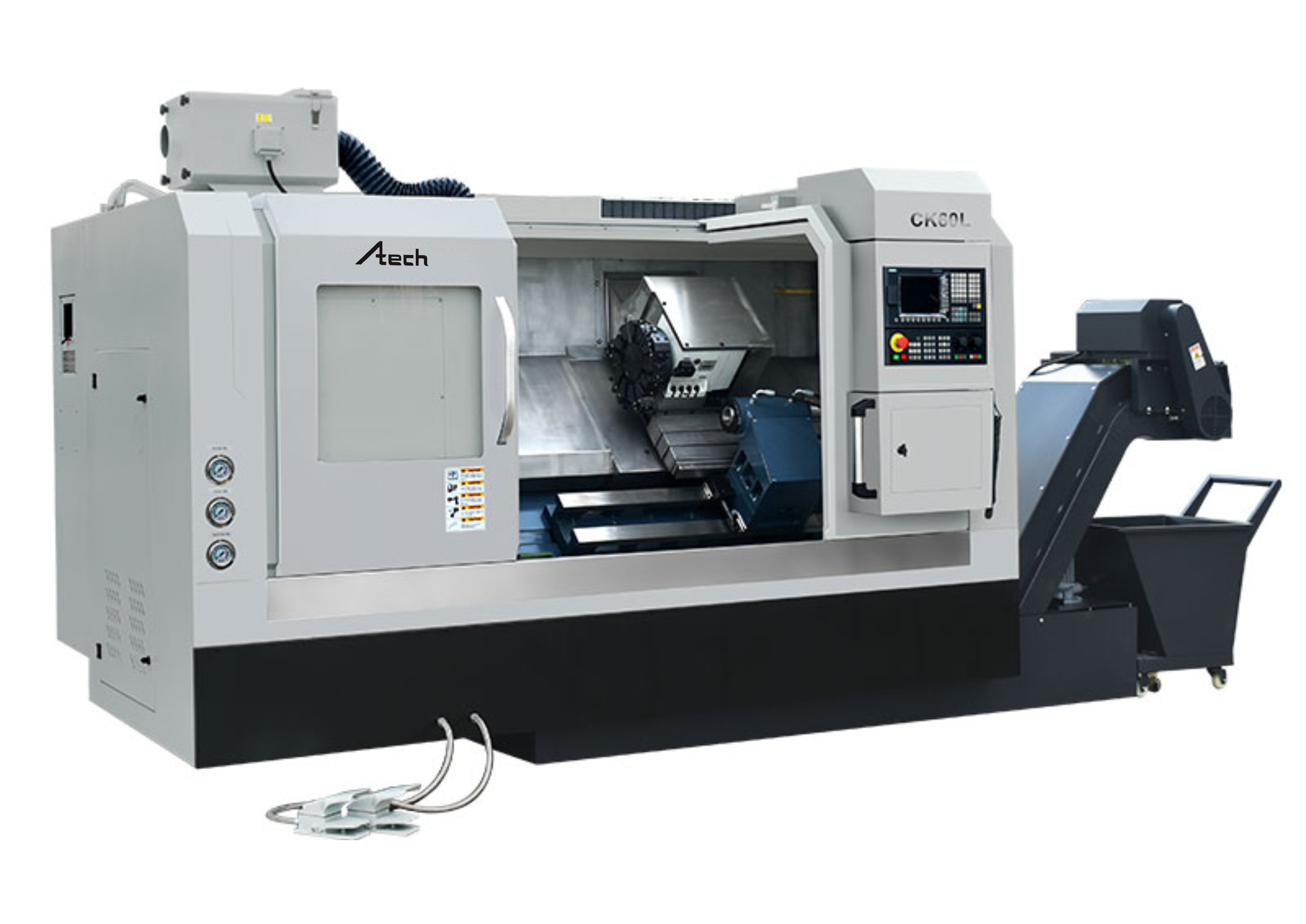

Slant Bed Lathe CK60L

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

High precision slant CNC lathe with Taiwan screw & linear guideway.
High precision cartridge type spindle ensure the rigidity and precision.
Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.
Siemens, Fanus, Syntec, Fagor controller as optional.
Monoblock cast iron of the whole machine ensure high rigidity.

Specification

Specification	CK60L
Capacity
Max. swing dia. over bed	φ630mm
Max. length of workpiece	1000mm
Max. swing dia. over slide	φ300mm
Spindle
Spindle speed range	3000rpm
Spindle bore	φ86mm
Max. dia. of through-hole	φ70mm
Spindle nose	A2-8
Chuck size	φ300mm
Axis
Type of guideway & screw	Taiwan linear guideway & screw
X axis travel	350mm
Z axis travel	1000mm
X/Z axis rapid traverse	15/15 m/min
Turret
Type	Electric turret,Hydraulic turret,Power turret
No. of tool stations	8,*12 position
Tool shank size	25×25,*20x20mm
Tailstock
Type of tailstock	Hydraulic sleeves
External diameter	φ90mm
Travel of tailstock quill	120mm
Taper of tailstock quill	MT5
Motor
Spindle motor power	11kw,*15kw
Coolant pump power	370w
Machine Dimensions
Overal dimension (L×W×H)	3450x1780x1950mm
Packing size(L×W×H)	3800x2270x2380mm
Net/Gross weight	4900/5200kg
