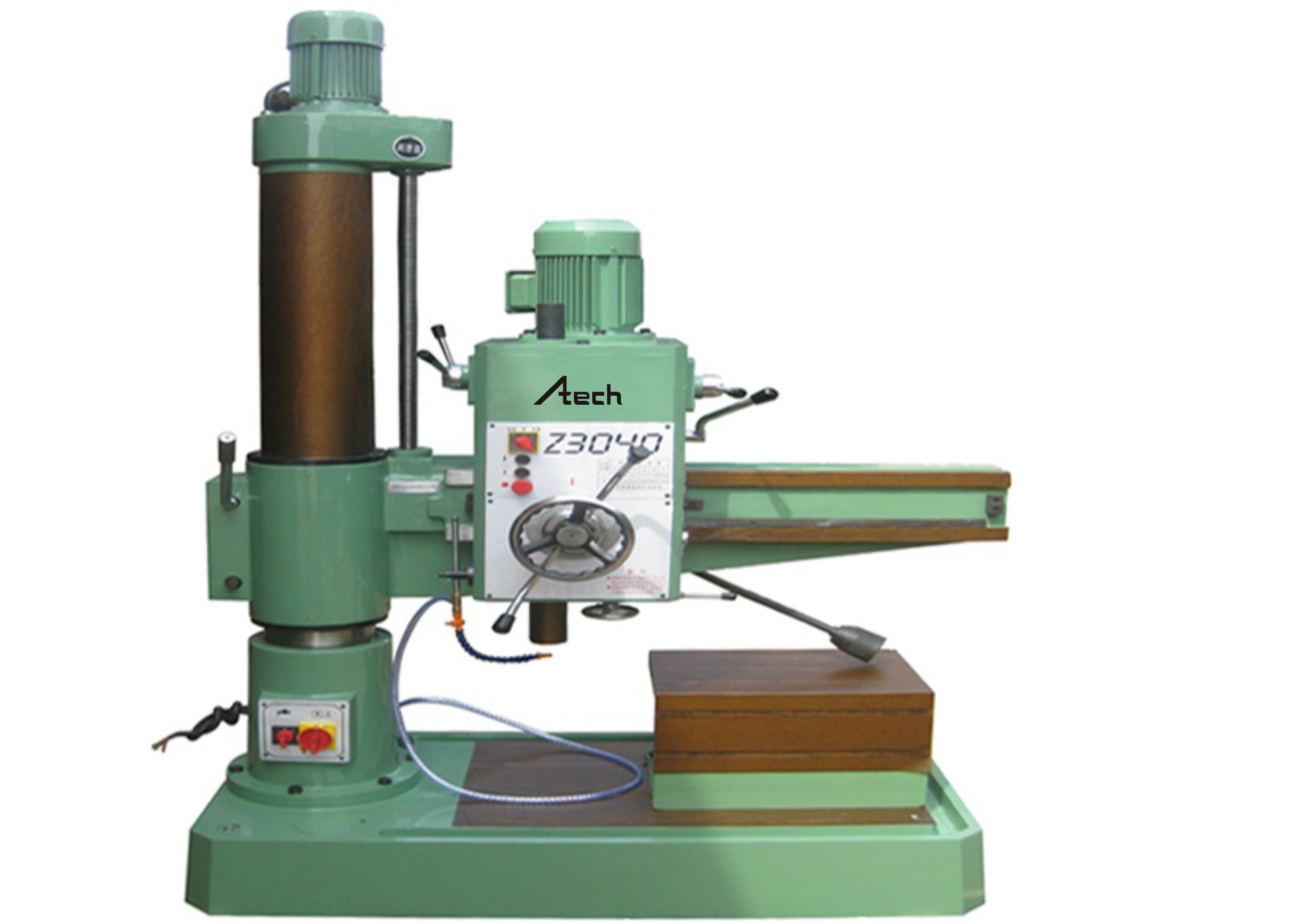

Radial Drilling Machine Z3040×12

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Features

  • Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
  • It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
  • Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism.
  • Perfect safety protector and outer post protection are available. In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
  • Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.





Specification

Specification Z3040/12
Max drilling capacity 40mm
Distance from spindle nose to column 300-1200/1400mm
Spindle horizontal travel 900/1100mm
Spindle vertical travel 300-1240mm
Spindle taper MT4
Spindle travel 210mm
Radial arm lifting speed 1.26m/min
Radial arm lifting distance 650mm
Drilling depth per circle 140mm
Spindle speed 80-1200r/min
Spindle speed series 6
Range of spindle feed 0.10-0.30mm/r
Spindle feed series 3
Main motor power 1.5kw
Lifting motor power 0.75kw
Hydraulic clamping motor power 0.55kw
Coolant pump power 40w
Table size 550x350x350mm
Net weight 1500kgs/1700kgs
Oversall size 1700/1900x800x2200mm







Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 1700 kg
