Description
Main Features
- Spindle BT40 with8000rpm.
- Pneumatically tool clamping.
- GSK, Siemens, Fanuc system as optional selection.
- X/Y/Z hard guideway
- Suitable for machining box parts, shell parts, disc-shaped parts.
Specification

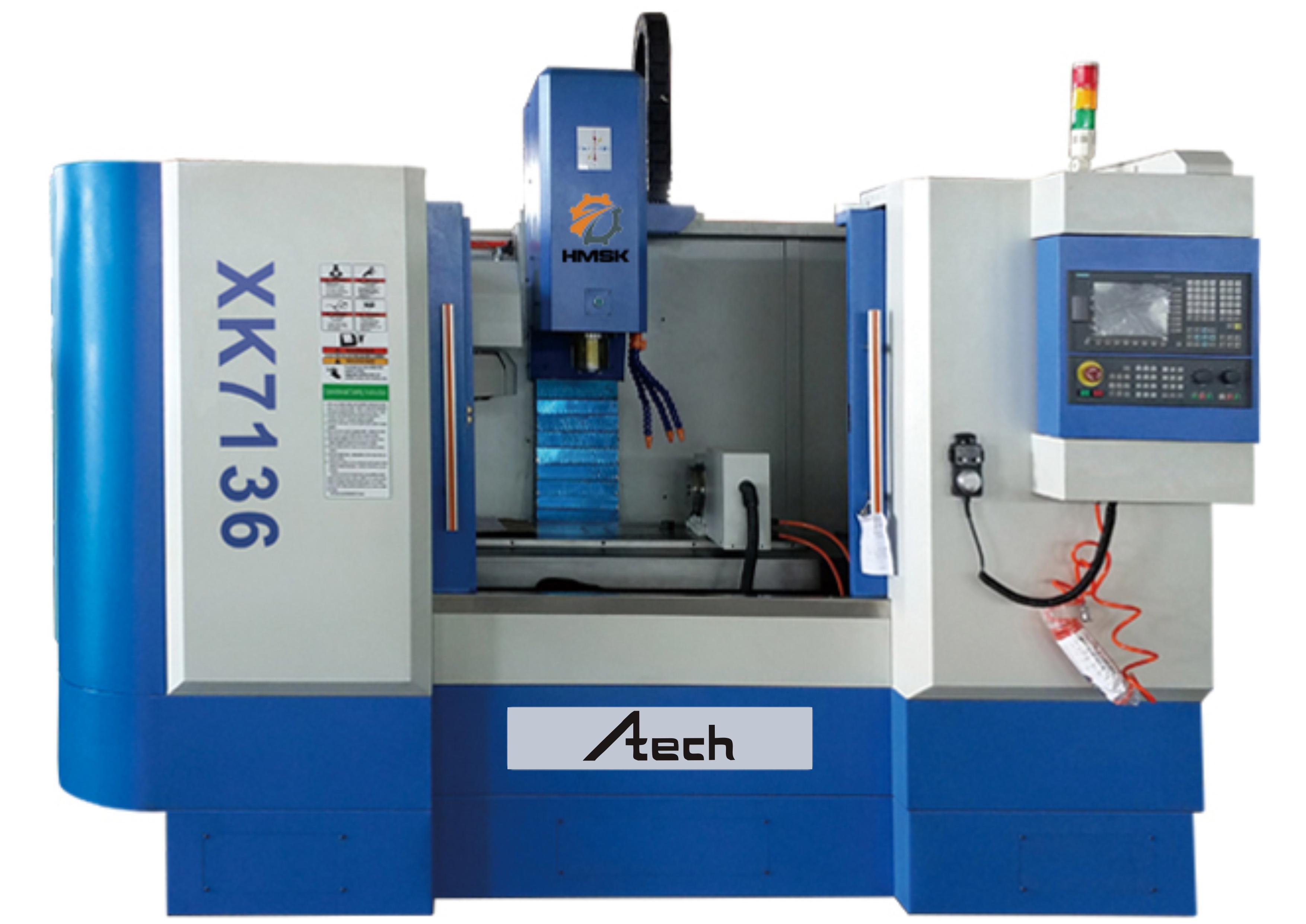

| Specification | XK7136 |
| Worktable size（LxW） | 1250x360mm |
| T-slot (NxWx D) | 3/18/80mm |
| X axis travel | 900mm |
| Y axis travel | 350mm |
| Z axis travel | 500mm |
| Distance from spindle nose to worktable surface | 100-600mm |
| Distance from spindle center to column | 460mm |
| Rapid feed speed（X/Y/Z) | 10/10/8m/min |
| Spindle taper | BT40 |
| Spindle speed range | 8000rpm |
| Main motor power | 5.5kw |
| AC servo motor torque（X/Y/Z) | 7.7/7.7/7.7N.m |
| Over size(LxWxH) | 2220x1850x2350mm |
| Net weight | 2400kgs |
Machine details
GSK, Fanuc, Siemens controller as optional selection
Spindle unit BT40
CNC milling machine workpieces for reference
4th axis for optional
Tersedia juga model lain.
