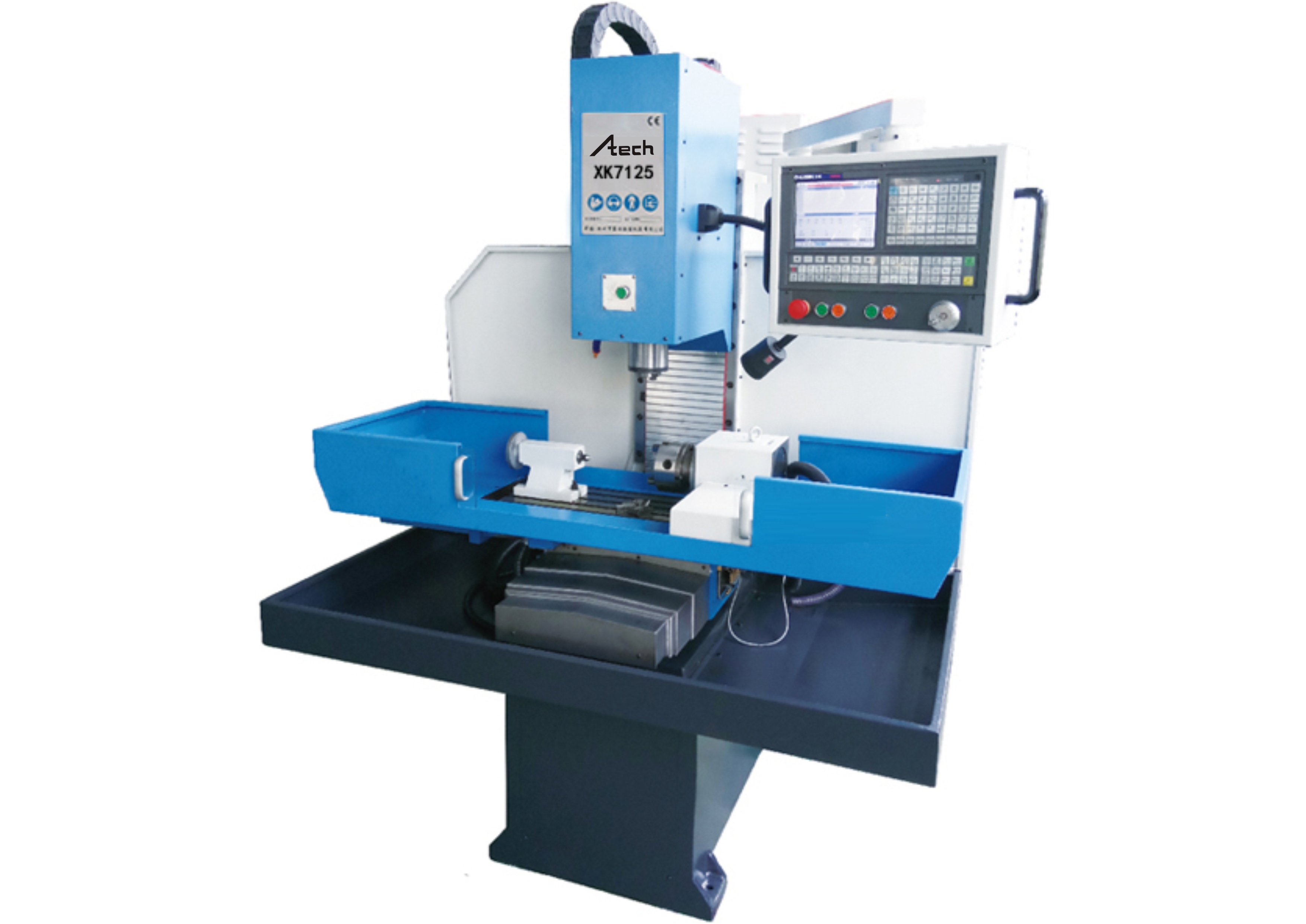

Description
Main Features
- Half cover, full cover for optional.
- Spindle BT30 with 6000rpm.
- GSK, Siemens, Fanuc system as optional selection.
- X/Y/Z hard guideway
- Suitable for machining box parts, shell parts, disc-shaped parts.
Specification
| Specification | XK7125 |
| Worktable size（LxW） | 900x230mm |
| T-slot (NxWx D) | 3/14/65mm |
| X axis travel | 500mm |
| Y axis travel | 280mm |
| Z axis travel | 350mm |
| Distance from spindle nose to worktable surface | 50-400mm |
| Distance from spindle center to column | 340mm |
| Rapid feed speed（X/Y/Z) | 8/8/6m/min |
| Spindle taper | BT30 |
| Spindle speed range | 6000rpm |
| Main motor power | 2.2kw |
| AC servo motor torque（X/Y/Z) | 4/4/6N.m |
| Over size(LxWxH) | 1900x1450x2150mm |
| Net weight | 1500kgs |
Machine details
GSK, Fanuc, Siemens controller as optional selection
Spindle unit BT30
Electrical box
CNC milling machine workpieces for reference
