Description
Main Features
- 18000rpm high spindle speed
- Suitable for casting and steel processing
- Lower noise and high precision
- Vertical controller panel with easy operation and beauty
- Suitable for mould machining and production in lots and engraving
Specification

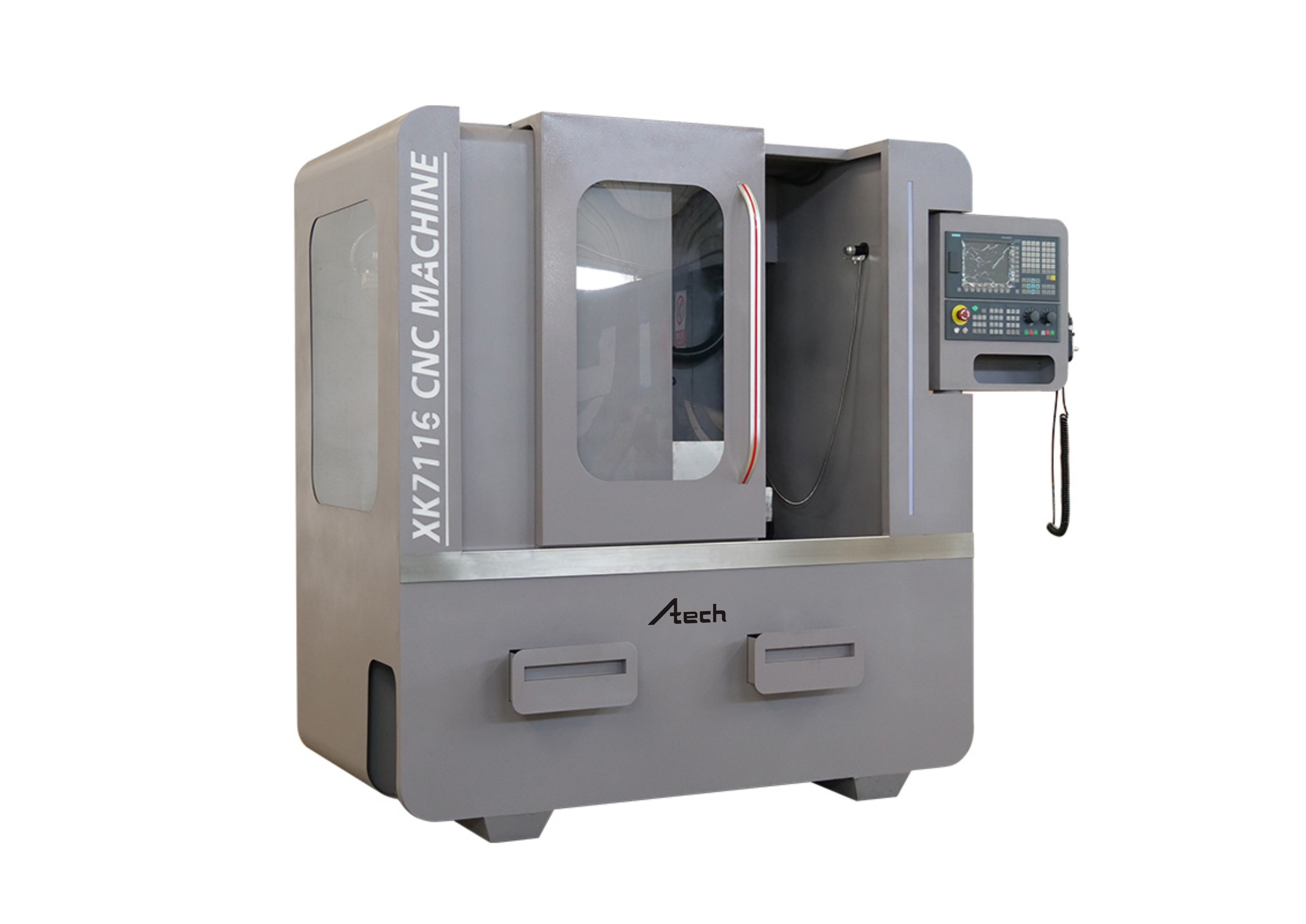

| Specification | XK7116 |
| X axis travel | 350mm |
| Y axis travel | 160mm |
| Z axis travel | 400mm |
| Spindle nose to table distance | 476.4mm |
| Spindle center to column distance | 161mm |
| Worktable size | 600X163mm |
| Main motor | 3KW |
| Spindle speed | 18000rpm |
| Coolant system | liuquid cooling |
| Change tool way | Pnumetic |
| Spindle taper | BT30 |
| ATC Type | Umbrella type |
| Capacity of ATC | 8T |
| Air compressor pressure | 12L |
| Lubricating pump capacity | 1L |
| Working light | 10W |
| Cooling pump | 40W |
| Controller system | after1500MDC-4 |
| XY axis servo motor torque | 2.4N.M |
| Z axis servo motor torque | 4N.M |
| XYZ fast moving speed | 8 |
| XY Linear guideway | 15mm（Taiwan HIWIN） |
| Z linear guideway | 20mm（Taiwan HIWIN） |
| X axis ball leadscrew | 1605（Taiwan TBI） |
| YZ axis ball leadscrew | 2005（Taiwan TBI） |
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
