Description
Main Features of Milling Machine CNC
- High-precision milling machine designed for optimal performance and accuracy.
- Sturdy worktable with dimensions of 1250x360mm.
- Versatile machining range with X/Y/Z axis travel of 900/350/500mm.
- BT40 spindle taper and 5.5kw spindle power for efficient and precise cutting.
- Impressive maximum spindle speed of 8000rpm for rapid material removal.
- AC servo motors with torque values of 7.7/7.7/15N.m ensure smooth and reliable operation.
- 16T tool magazine for quick and seamless tool changes.
- Exceptional positioning accuracy of ±0.02mm and re-positioning accuracy of ±0.01mm.

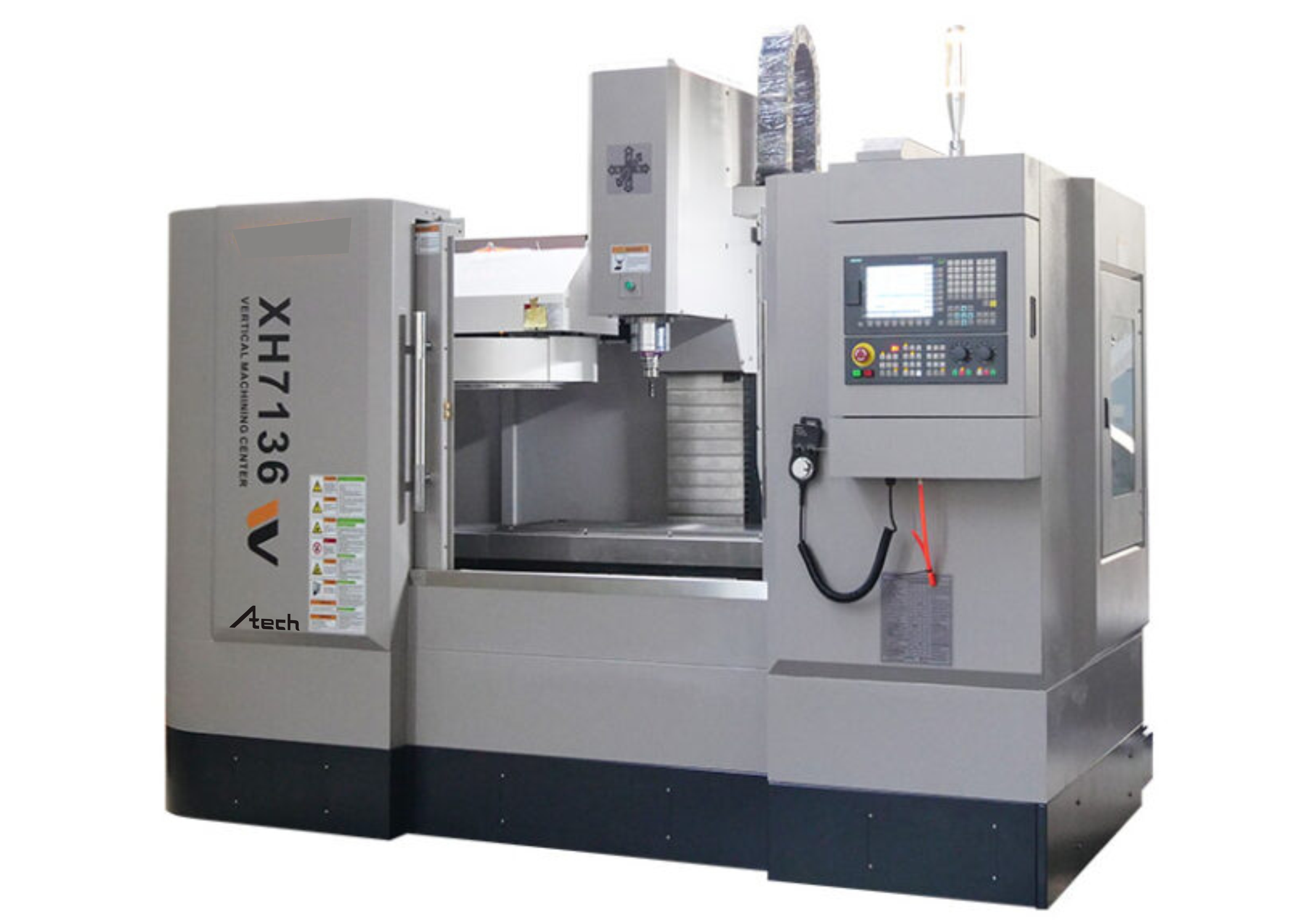

- Elevate your machining capabilities with the XH7136 CNC milling machine, delivering outstanding precision, efficiency, and versatility.
Specification
| Specification | XH7136 |
| Worktable | |
| Worktable size（LxW） | 1250x360mm |
| T-slot (NxWxD) | 3-18/80mm |
| Travel | |
| X/Y/Z axis travel | 900/350/500mm |
| Machining range | |
| Distance from spindle center to column | 460mm |
| Distance from spindle nose to worktable surface | 100-600mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 5.5kw |
| Max.spindle speed | 8000rpm |
| Feed | |
| Max.feed speed | 10m/min |
| Rapid feed speed（X/Y/Z) | 10/10/8m/min |
| Power | |
| AC servo motor torque(X/Y/Z) | 7.7/7.7/15N.m |
| X/Y/Z feed motor power | 1.5/1.5/2kw |
| Rated power | 11kw |
| Ball screw(diameter+lead) | |
| X/Y/Z axis ball screw | X-3206,YZ-4006 |
| Tool magazine | |
| Tool magazine capacity | 16T |
| Max.length of tool | 200mm |
| Tool change time(T-T) | 7s |
| Positioning accuracy (National standard) |
|
| Positioning accuracy (X/Y/Z) | ±.0.02mm |
| Re-positioning accuracy(X/Y/Z) | ±.0.01mm |
| Machine dimension | |
| LxWxH | 3000x2150x2450mm |
| Machine weight | |
| Max.loading of worktable | 350kg |
| Machine weight | 3500kg |
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
