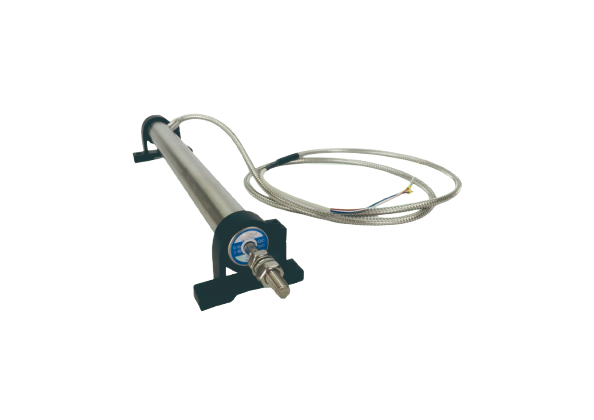

HTD-50-3 LVDT Displacement Sensors

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, LVDT Sensor

Category: Tag:

Description

Specification:



1. Linear Range: Optional from 0-800mm

2. Sensitivity: 2.8~230mv/v/mm

3. Excitation Voltage: 3Vms (1~17vms)

4. Working Temperature: -40-150°C

5. Vibration Tolerance: 20g (up to 2 kHz)

6. Linearity: ±0.3% FULL STROKE

7. Voltage: < 0.5% FSO

8. Excitation Frequency: 2.5 KHz (400 Hz~ 100 kHz)

9. Sensitive Coefficient: ±0.03%FSO./°C

10. Shock Tolerance: 1000g (within 5ms)



Regular Model:



  • HTD-50-3
  • HTD-250-3
  • HTD-500-3
  • HTD-50-6
  • HTD-250-6
  • HTD-500-6
  • HTD-100-3
  • HTD-300-3
  • HTD-600-3
  • HTD-100-6
  • HTD-300-6
  • HTD-600-6
  • HTD-150-3
  • HTD-350-3
  • HTD-700-3
  • HTD-150-6
  • HTD-350-6
  • HTD-700-6
  • HTD-200-3
  • HTD-400-3
  • HTD-800-3
  • HTD-200-6
  • HTD-400-6
  • HTD-800-6





Tersedia juga model lain.
Silahkan chat/WA ke no 0858-7630-0414 (Fast respon)
