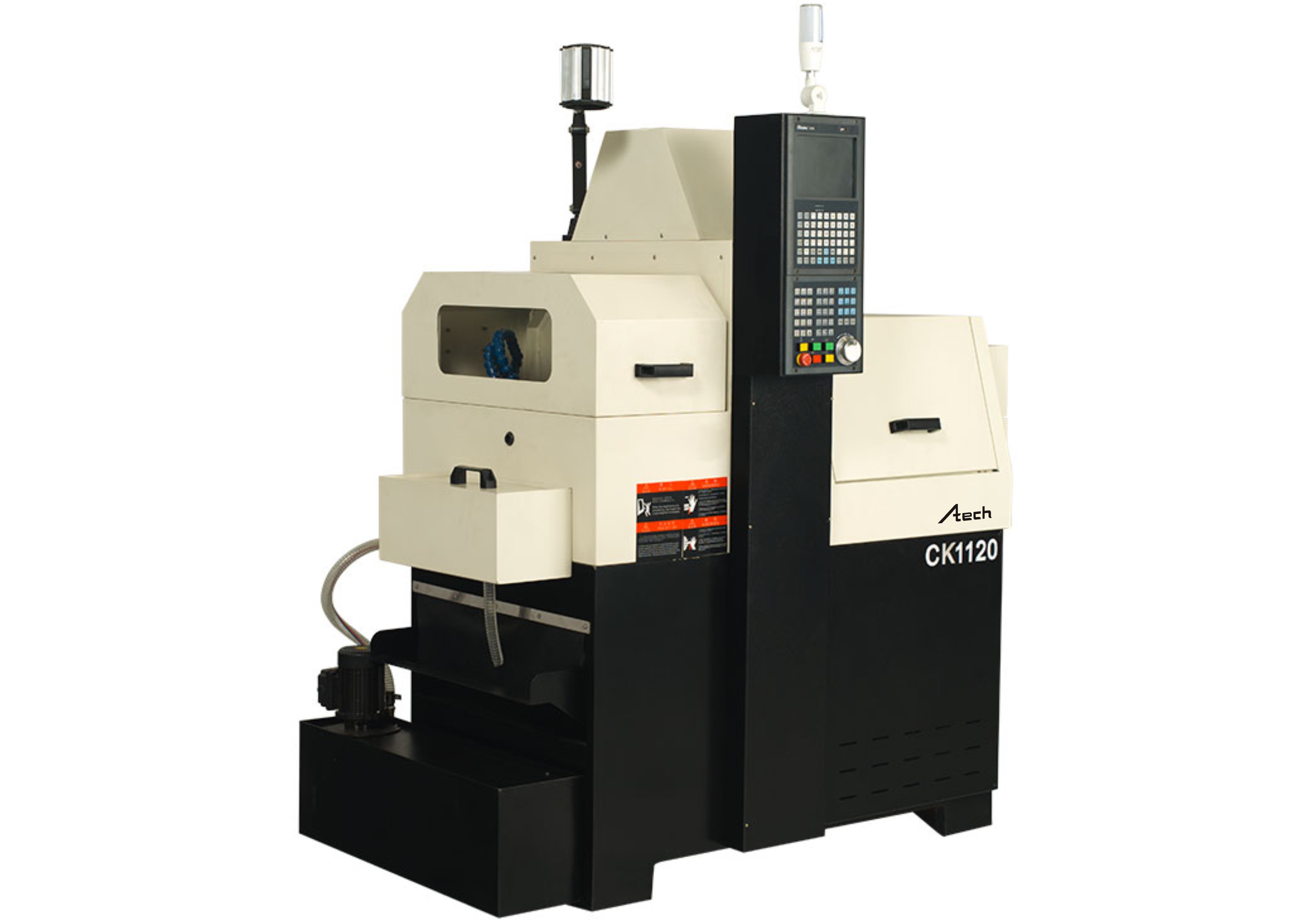

Description
Main Features
- The number of tools is large, and the tool exchange is fast.
- The powerhead meets the needs of turning and milling compound processing.
- The unique design without a guide sleeve can completely solve the problem of the long tail.
Specification
|
Reted Voltage
|
380V /3 phase AC Current
|
Gang Tool
|
12 Nos.
|
|
Reted Frequency
|
50HZ
|
Turning Tool
|
9 Nos.
|
|
Total Input Power
|
4.75kw
|
Tool Size
|
12*12mm
|
|
Model (special customerized)
|
YZ150
|
Obverse Side Drilling
|
3 Nos.
|
|
Min Setting Value
|
0.001mm
|
Drilling Spindle Size
|
ER11/20mm
|
|
X Axis PulseEquivalent
|
0.0005mm
|
Cuting MotorPower
|
0.09kw
|
|
Y Axis Pulse Equivalent
|
0.001mm
|
Capacity of CoolingContairer
|
150L
|
|
Z Axis Pulse Equivalent
|
0.001mm
|
Motor Power
|
25w
|
|
Max Programming size
|
±9999.999
|
Capacity
|
1.5L
|
|
Cutting Speed
|
1–4000mm/min
|
Input Pressure of Compressed Air
|
0.4–0.6Mpa
|
|
X Axis Fast Feed Rate
|
18000mm/min
|
X Axis Stroke
|
80mm（dia.）
|
|
Y Axis Fast Feed Rate
|
18000mm/min
|
Y Axis Stroke
|
150mm
|
|
Z Axis Fast Feed Rate
|
18000mm/min
|
Z Axis Stroke
|
250mm
|
|
Max. Bar Dia.
|
Φ20mm
|
X Axis Servo Motor Power
|
0.75kw
|
|
Spindle Hole Dia.
|
Φ21mm
|
Y Axis Servo Motor Power
|
0.75kw
|
|
The height of spindle center from ground
|
980mm
|
Z Axis Servo Motor Power
|
0.75kw
|
|
spindle speed
|
0-4000r/min
|
Slide guide mode
|
linear guide
|
|
Spindle power
|
2kw
|
L*W*H(mm)
|
1495*1010*1860mm
1220kgs
|
Tersedia juga model lain.
