Description

Main Features

• Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
• Threading Inch, Metric, Module and D.P.;
• Perform drilling, boring and groove broaching;
• Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
• Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
• There are hand brake and foot brake for users to choose;
• Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.



Specification

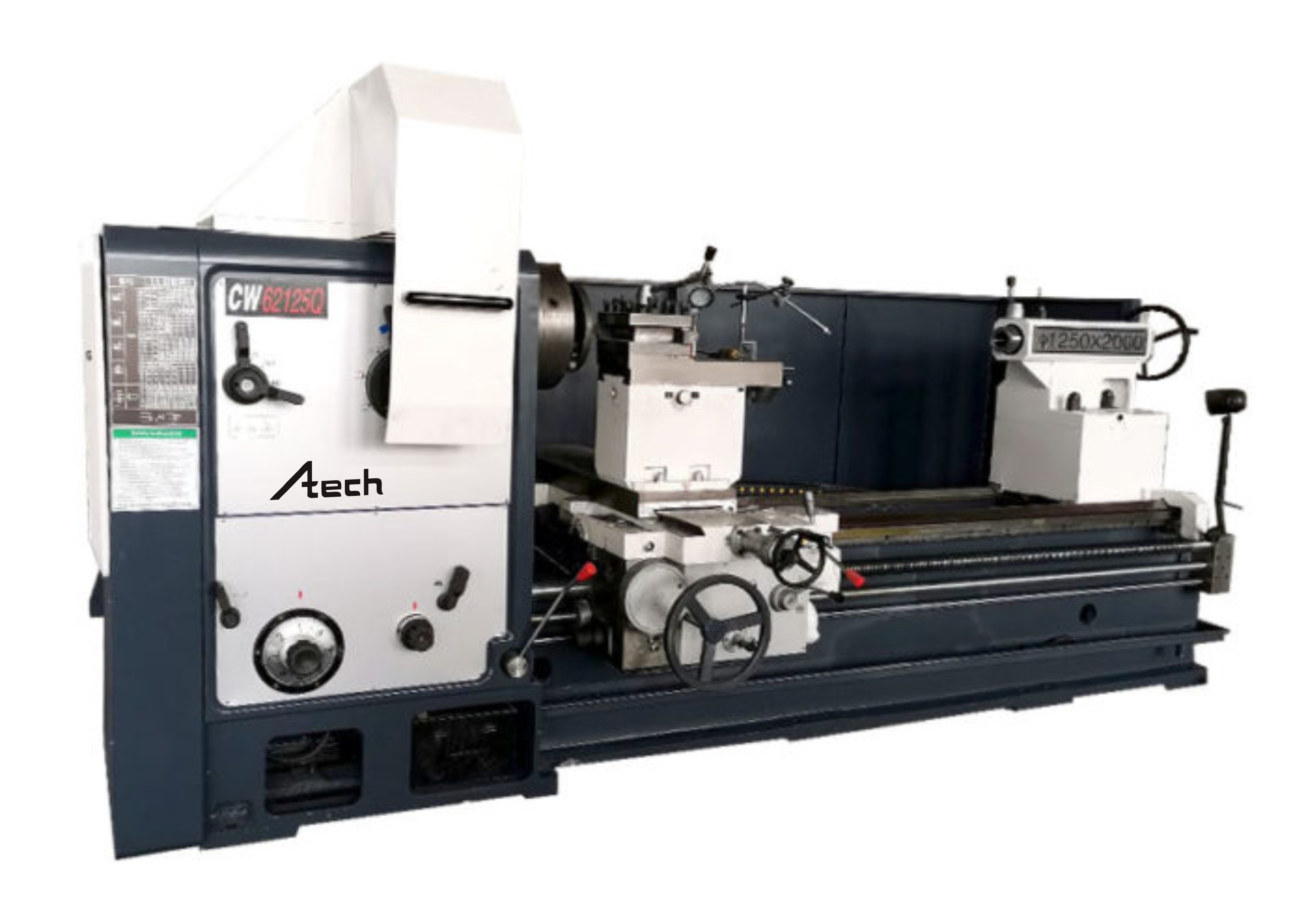

Specification	CW62125
Max. swing over bed	1250mm
Bed width	755mm
Max. workpiece length	1500/ 3000/ 5000 / 6000/ 8000/ 15000mm
Max. swing over toolpost	860mm
Max. turning length	1300/ 2800/ 4800 /5800/7800/14800mm
Toolpost feed kinds each spindle rotate	56 kinds
Toolpost cross feed range each spindle rotate	0.1-12mm/r
Toolpost longitudinal feed range each spindle rotate	0.05-6mm/r
Upper toolpost	0.025-3mm/r
Metric thread	44 kinds 1-120mm
Inch thread	31 kinds 28-1/4 teeth / inch
Module thread	45kinds 0.5-60mm
Pitch thread	38 kinds 1/2-56D.P
Spindle bore	130mm
Spindle front taper	Metric 140
Spindle speed steps and range forward	21 kinds 3.15-315r/min
Reverse	12 kinds3.5-278 r/min
Max.section of tool	45×45mm
Toolpost longitudinal travel	630mm
Upper toolpost travel	300mm
Toolpost rapid movement Longitudinal/Cross/Upper	3470/1870/935mm/min
Center sleeve dia and travel	160×300mm
Tailstock taper	MT6
Tailstock longitudinal movement	±25
Main motor	22KW
Main transsion V belt specification	2134C  2235C  2540C
Carriage rapid motor	1.5KW
Coolant pump	90W
Coolant pump flow	45L/min
4-jaw chuck	1000/1250mm
Steady rest	50-470mm
Follow rest	50-220mm





Tersedia juga model lain.
