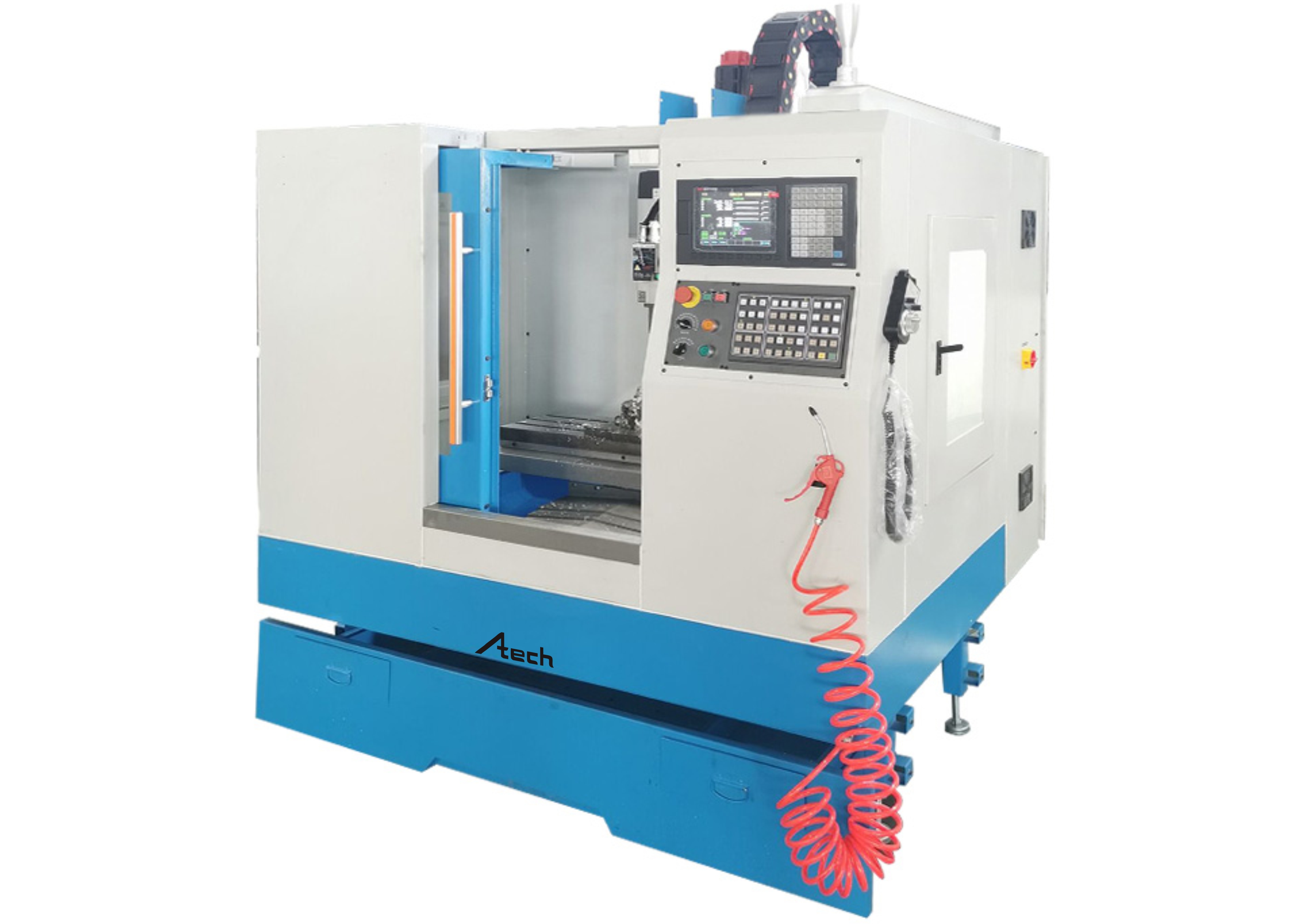

Milling Machine VMC400

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Main Features

  • Ball screw/Linear guideway
  • X/Y/Z axis servo motor
  • 8000rpm spindle speed



Specification

Specification VMC400
Worktable size 820*230mm
Workspace 200*400*300mm
X movement 400mm
Y movement 200mm
Z movement 300mm
X rapid feed 8000mm/min
X rapid feed 8000mm/min
Z rapid feed 6000mm/min
Feed system Ball screw/Linear guideway
X axis motor Servo motor
Y axis motor Servo motor
Z axis motor Servo motor
Minimum movement precision 0.07mm
Repeat accuracy 0.01mm
Input power 380v/3phase
Spindle speed range 8000RPM
Packing size L x W x H 1900*1600*2000mm
Gross weight 1300kgs





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 1300 kg
