Description
Main Features
- Small size and cheap price.
- Easy operation by P.C.
- Best choice for hobby users.
Specification
| Specification | CNC180 |
| Max swing over bed | 180mm |
| Max.swing over carriage | 300/350mm |
| Max.length of work pieces | 300mm |
| Spindle bore | 20mm |
| Spindle taper | MT3 |
| Spindle speed | 50-2250rpm |
| Metric thread cutting | 0.5-2.5mm |
| Inch thread cutting | 12-52TPI |
| Electric toolpost | 4-position |
| Gangtool bar size | 8mm |
| X Travel | 60mm |
| Z travel | 250mm |
| X Moving speed | 800mm/min |
| Z Moving speed | 1200mm/min |
| Spindle motor power | 400w (optional:550w) |
| X Motor power | 1.5NM |
| Z Motor power | 2NM |
| Mini setting unit | 0.001mm |
| Tailstock diameter | 20mm |
| Tailstock Travel | 50mm |
| Tailstock taper | MT2 |
| Overall size | 900X400X1250mm |
| Net weight | 90kgs |

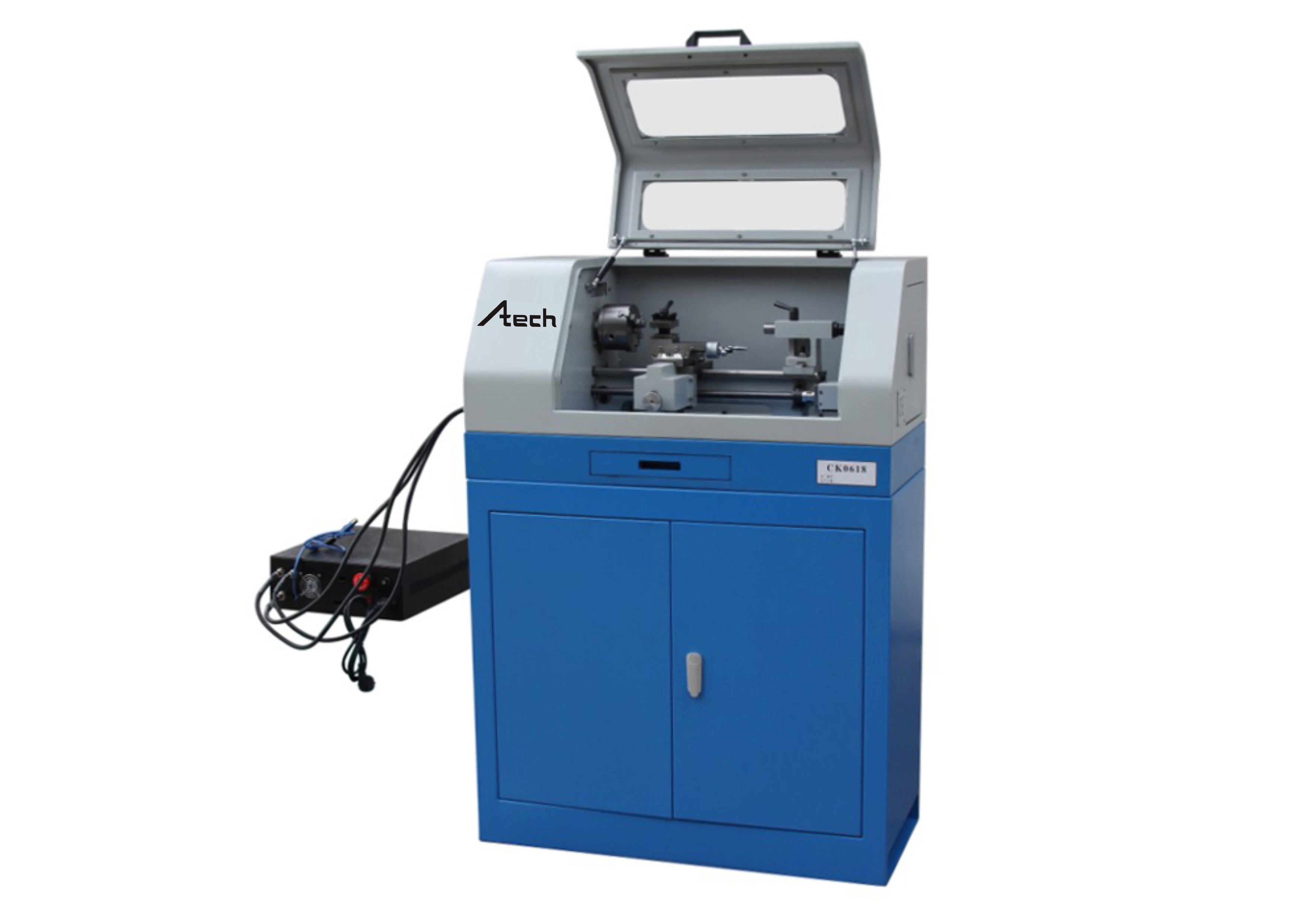

Machine details
Mach 3 system
3 jaw chuck
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
