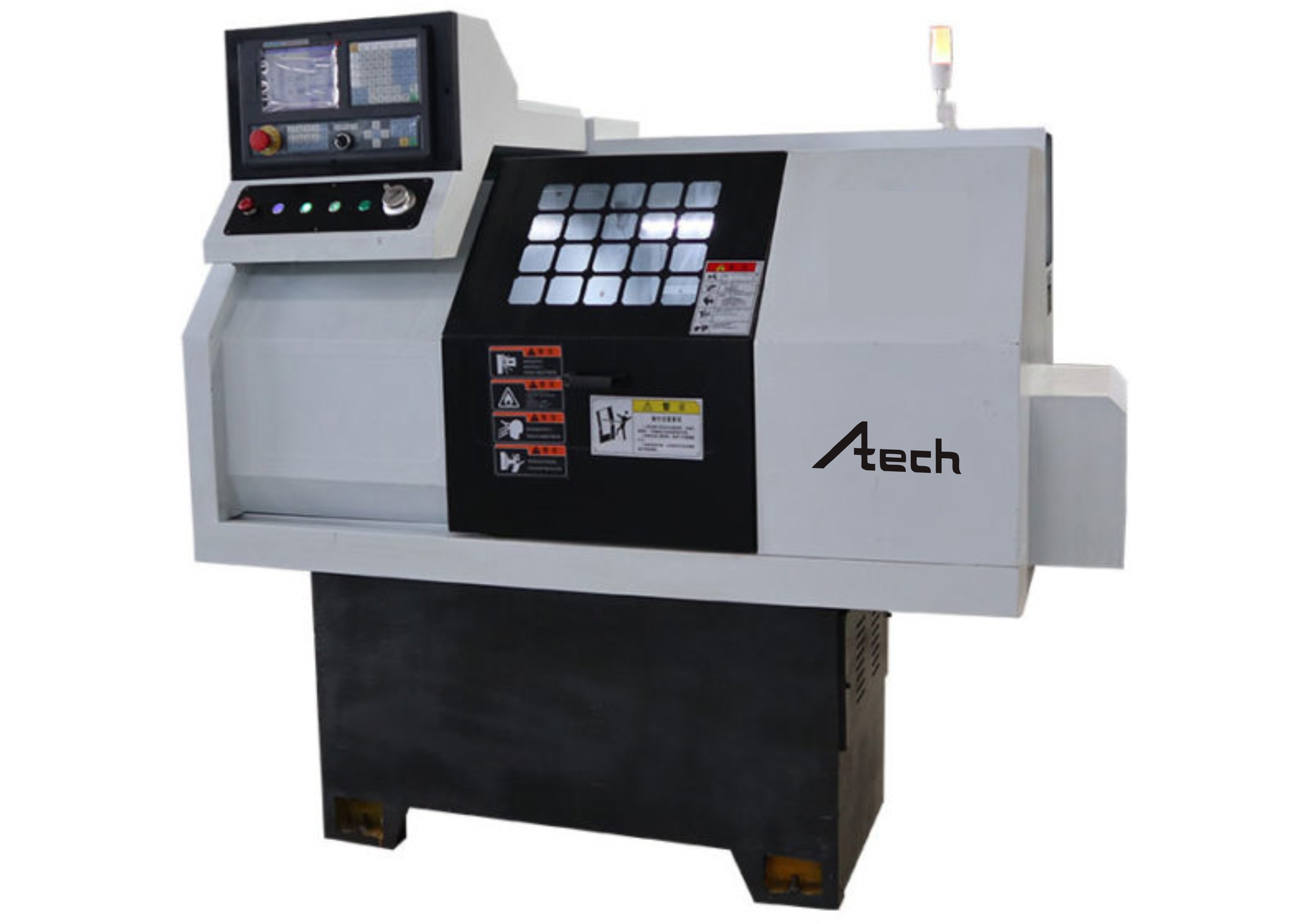

Description
Main Features
- CK0640 can be permanently memory coordinates after power offer,you do not need worry if people moved the position,;it can continuely Processing half of the workpiece.
- Machine often caused alarms because of these widgets,CK0640 can set soft limit,so that can save machine maintenance time and cost.
- High precision,CK0640 use Absolute servo encoder is 17 bits
- It is suitbale for Mass production for small workpiece, High efficiency, high precision.
Specification
| Specification | CK0640 |
| Max.swing over bed | 260mm |
| Diameter of X axis ballscrew | 25mm |
| Thread pitch of X axis ballscrew | 4mm |
| Diameter of Z axis ballscrew | 32mm |
| Thread pitch of Z axis ballscrew | 6mm |
| X-axis travel | 250mm |
| Z-axis travel | 180mm |
| Pneumatic chuck | 32mm |
| Toolpost | 4 position electrical toolpost |
| Main Motor | 3kw |
| Motor for Coolant pump | 90W |
| Spindle bore | 49mm |
| Spindle hole after install pneumatic | 41.5mm |
| Re-positioning accuracy | 0.01mm |
| positioning accuracy | 0.01mm |
| Servo motor torque | 4.0NM |
| CNC controller system | after 980MDC |
| Machine size | 1760x1070x1730mm |
| G.W | 700kgs |
Tersedia juga model lain.
