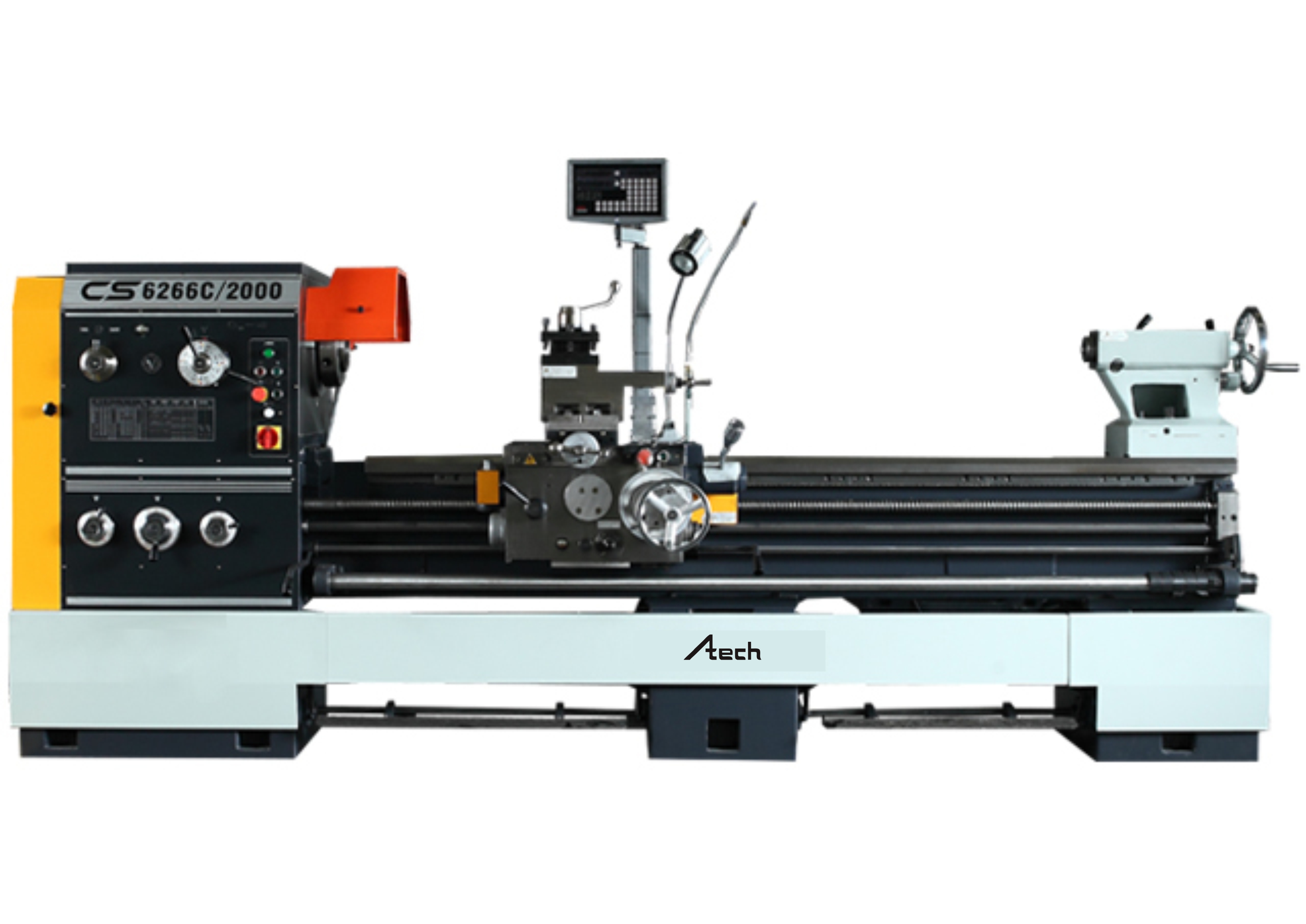

Engine Lathe CS6266C

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.

Specification

Specification	CS6266C
Max. swing over bed	Φ660mm
Max. swing in gap	Φ870mm
Max. swing over slide	Φ420mm
Max. workpiece length	1000/1500mm/2000/3000mm
Spindle bore	Φ105mm
Type of spindle	ISO 702/II NO.8 com-lock type
Spindle speed	12 steps 36-1600rpm
Spindle motor	7.5kw
Diameter of quill	Φ90mm
Max. travel of quill	150mm
Taper of quill	MT5
Tool O.D. size	25×25mm
Max. X travel	145mm
Max. Z travel	310mm
X feed range	65 kinds 0.063-2.52mm/r
Z feed range	65 kinds 0.027-1.07mm/r
Metric threads	22 kinds 1-14mm
Inch threads	25 kinds 28-2t.p.i
Module threads	18 kinds 0.5-7πmm
Diametric pitch	24 kinds 56-4t.p.i.π
Cooling pump	60w
Length	2632/3132mm/3632/4632mm
Width	975mm
Height	1450mm
