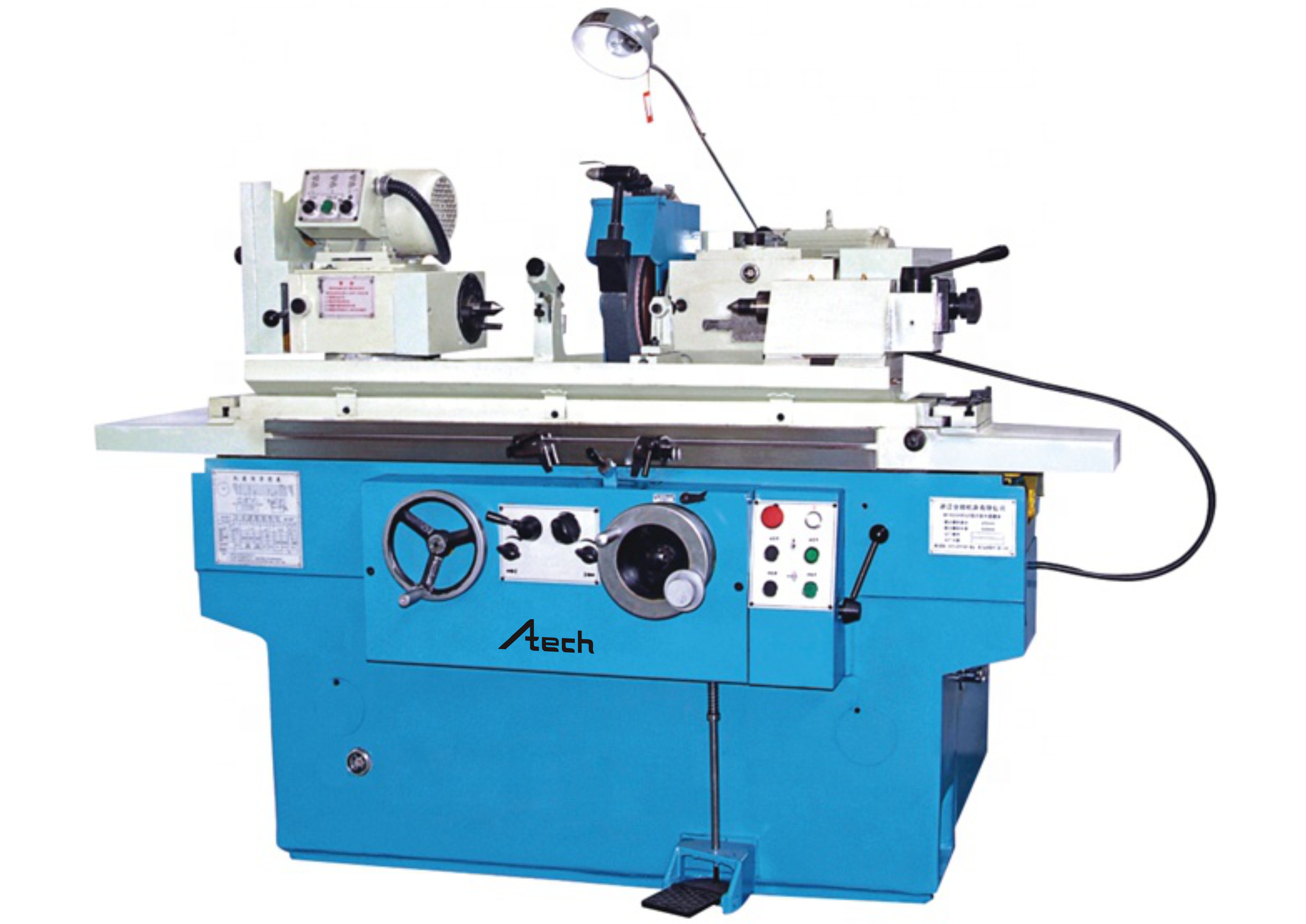

Cylindrical Grinding Machine M1320H×800

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri3

Category: Tags: ,

Description

Main Features

  • The longitudinal movement of the worktable is driven by hydraulic or by hand wheel.
  • The worktable can rotate to a certain degree so as to be suitable for grinding taper.
  • The wheel head cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through hand wheel.



Specification

Description unit M1320H×800
External grinding diameters mm Φ8 ~200
Center height mm 135
Max.travel of table mm 950
Hydraulic traverse sdeeds m/min 0.1~4
Max.workpiece weight kg 50
Grinding length External mm 800
Swivel range of worktable . ﹣3~+7°
Max peripheral speed of grinding wheel m/s 38
Externalwheef size mm MinΦ280×50×Φ203
Workhead and tailstock center NO.4
Machine motor power kw 5.625
Overall dimensions(L×W×H) mm 3000×1600×1500
Machine weight kg 3000



Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 3000 kg
