Description
Main Features
- Super voice frequency heated bedways.
- Hardened and grounded gears in the headstock.
- With 2 precision D degree taper roller bearings on the spindle.
- Integrated deluxe cast iron floor stand.
- Tolerance test certificate, test flow chart included.
Specification
|
Specification
|

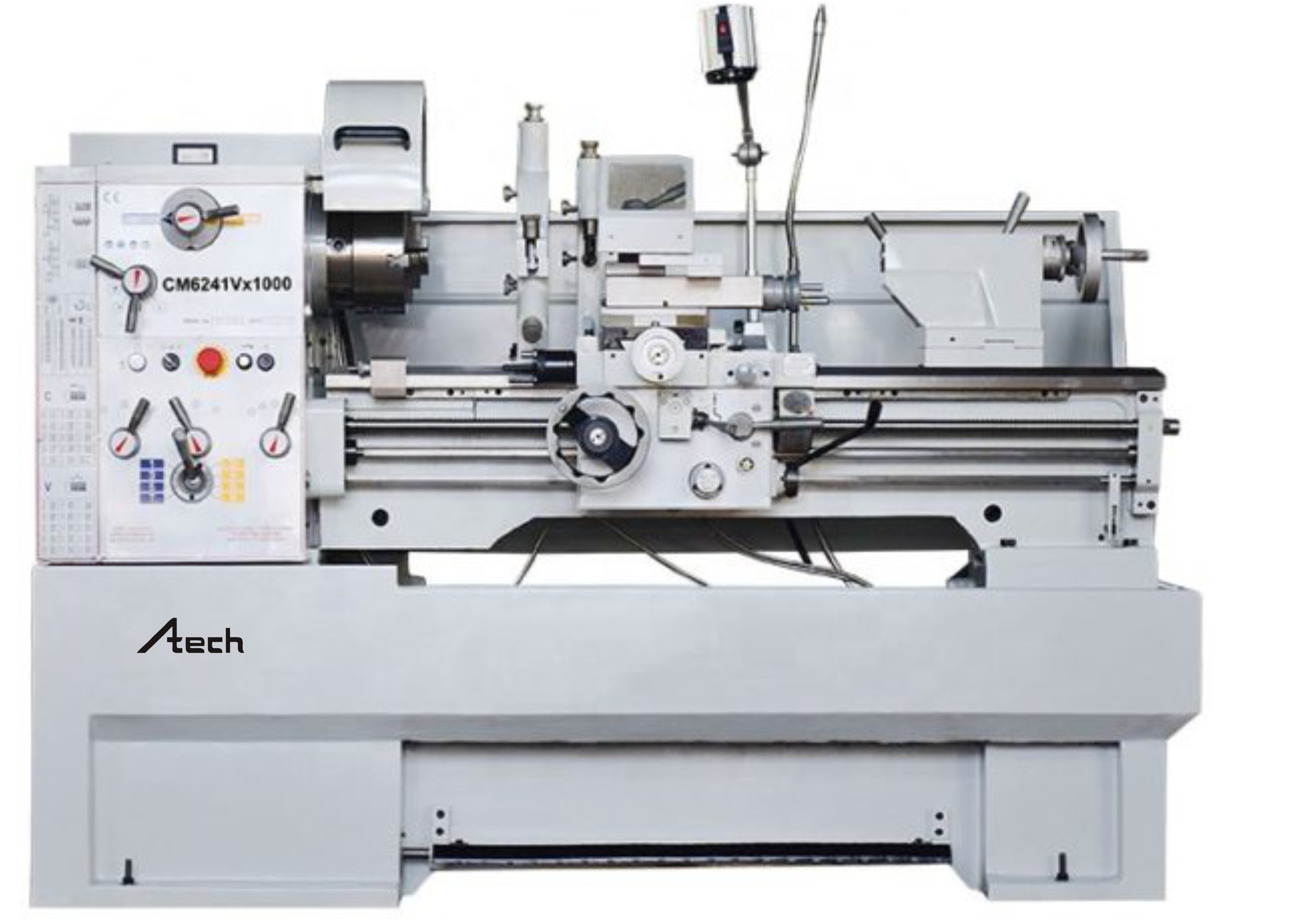

CM6241V×1000 /1500mm
|
|
Swing over bed
|
410mm
|
|
Swing over cross slide
|
255mm
|
|
Swing in gap
|
580mm
|
|
Length of gap
|
19mm
|
|
Distance between centers
|
1000mm /1500mm
|
|
Center height
|
205mm
|
|
Width of bed
|
250mm
|
|
Spindle nose
|
D1-6
|
|
Spindle bore
|
52mm
|
|
Taper of spindle bore
|
MT6
|
|
Range of spindle speed
|
Variable speed 50-30000r/min
|
|
Travel of compound rest
|
102mm
|
|
Max.travel of cross slide
|
210mm
|
|
Leadscrew pitch
|
4T.P.I.
|
|
Max.Section of tool
|
20×20mm
|
|
Longitudinal feeds range
|
0.05-1.7mm/rev(0.002-0.067/rev)
|
|
Cross feeds range
|
0.025-0.85mm(0.001-0.0335/rev)
|
|
Cross feeds range
|
0.025-0.85mm(0.001-0.0336/rev)
|
|
Inch threads range
|
45kinds 2-72T.P.I
|
|
Diametrical pitches range
|
21kinds 8-44D.P.
|
|
Module pitches range
|
18kinds 0.3-3.5M.P.
|
|
Dia.of tailstock sleeve
|
50mm
|
|
Travel of tailstock sleeve
|
120mm
|
|
Taper of tailstock sleeve
|
MT4
|
|
Power of main motor
|
2.2/3.3kw(optional 3.0/4.5kw)
|
|
Power of coolant pump
|
90w
|
|
Overall dimension
|
1940/2440×850×1300mm
|
|
Packing size
|
2060/2560×900×1640mm
|
|
N.W/G.W
|
1500/1750kgs 1550/1800kgs
|
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
