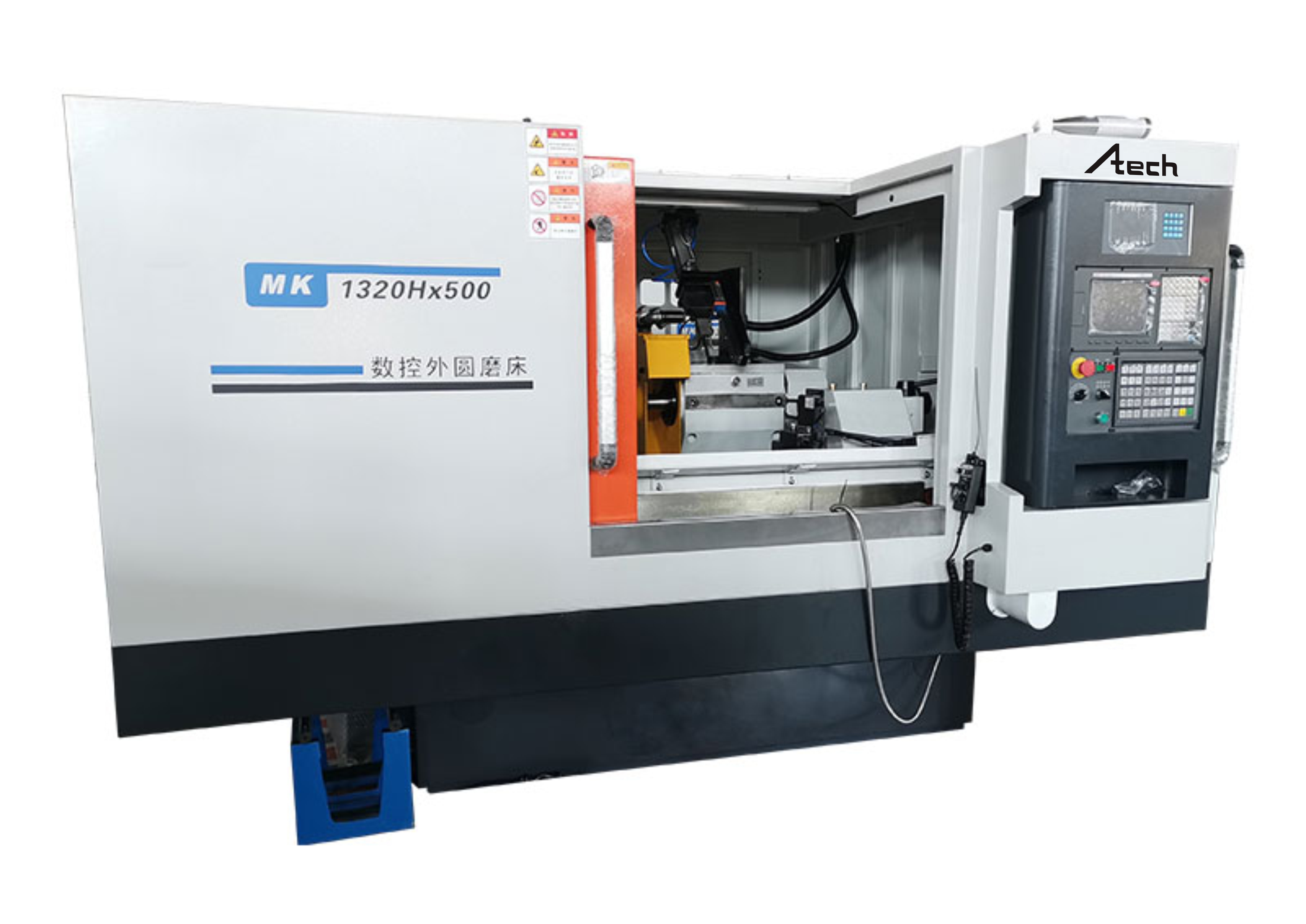

Description

Main Features

• The machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized.
• With the function of the worktable trip-stop, the machine can grind more than one journal of one workpiece automatically. The process parameter of more than one journal can be set discretionary forlong grinding of plunge grinding. With the function of wheel dressing and compensation automatically.
• Wheelhead spindle is supported by three bushings hydro-dynamic bearing, and high precision hydro dynamic-static bearing is also available for the user.
• Timing provision of lubrication for machine moving parts according to program designing. Automatic lubrication of all moving parts. Tailstock has two ways: hydraulic and manual.



Specification

Specification	unit	MKE1320H×500
Dia to be ground	mm	Φ8 ~200
Max. length to be ground	mm	500
Center height	mm	135
Distance between centers	mm	550
Headstock center	/	MT4
Tailkstock center	/	MT4
Max. workpiece weight to be ground	kg	30
Wheel size	mm	Φ400X50XΦ203
Wheel peripheral speed	m/s	35
Wheel spindle rotation speed	r/min	1670
Min. pulse amount in X-axis	mm	0.001
Min. pulse amount in Z-axis	mm	0.001
Motor power	kw	10.825
Longitudinal servo motor	kw	I.6(6Nm)
Traverse servo motor	kw	I.6(6Nm)







Tersedia juga model lain.
