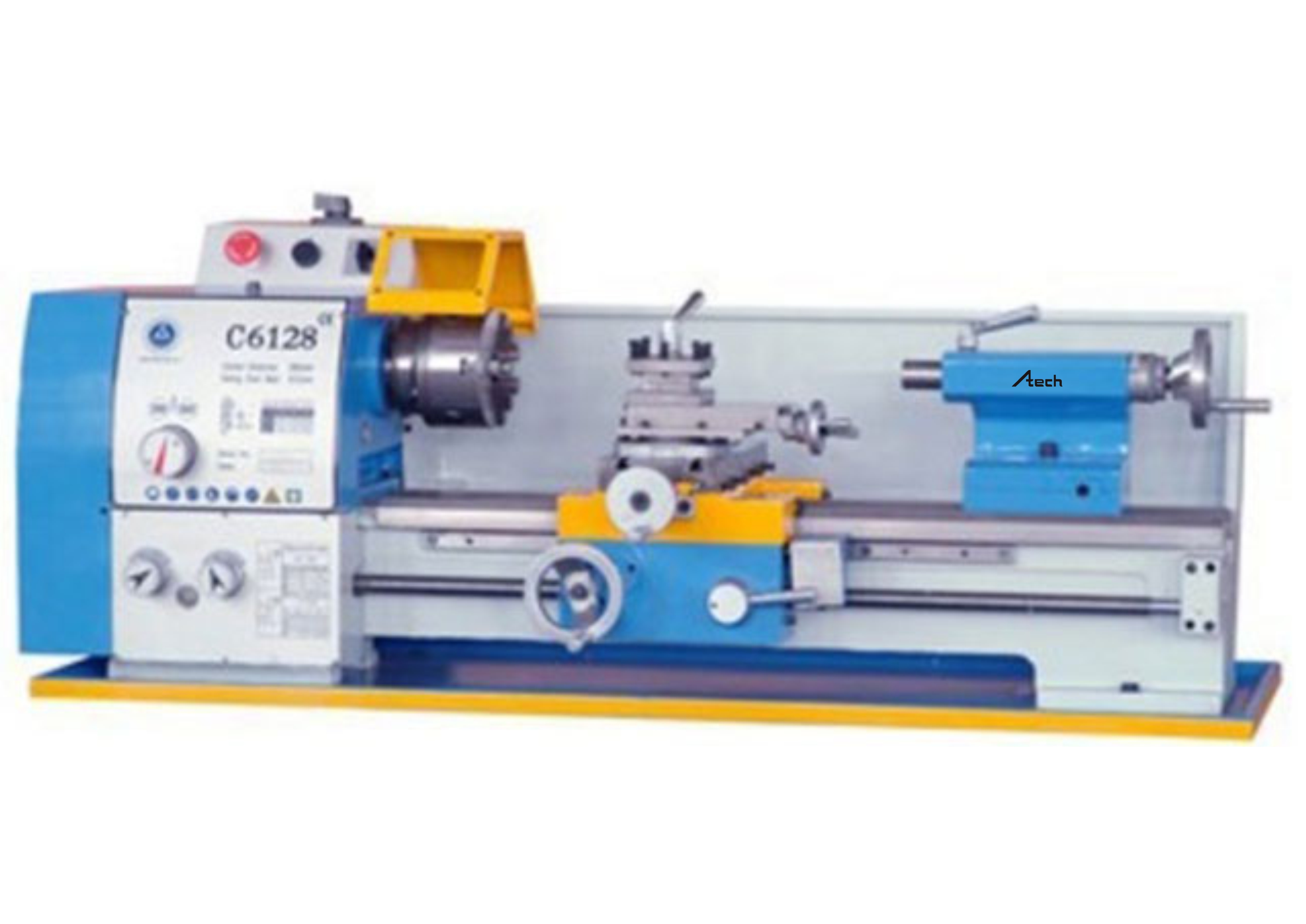

Bench Lathe CQ6128

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: , ,

Description

Features

  • Precision ground and hardened bed ways.
  • The spindle is supported with precision roller bearings.
  • Headstock gears are made of high quality steel, ground and hardened.
  • Easy operating speed change levers.
  • Spindle speed range 125-2000rpm.
  • Easy operating gear box has various feeds and thread cutting function.
  • With or without cabinet according to requirement.



Specification

Precision bench Lathe CQ6128
Model 610mm
Swing over bed 280mm
Width of bed 180mm
Spindle bore 26mm
Taper of spindle bore M.T.4
Range of spindle bore 125-2000rpm
Taper of tailstock quill MT3
Range of metric threads 0.1-3.5mm
Range of imperial threads 8-35T.P.I
Range of longituainal speeds 0.10-0.25mm/rev
Cross slide travel 110mm
Compound rest travel 70mm
Max.travel of tailstock quill 80mm
Motor power 750w
Packing size 1320×650×610mm
N.W 218kg





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 218 kg
