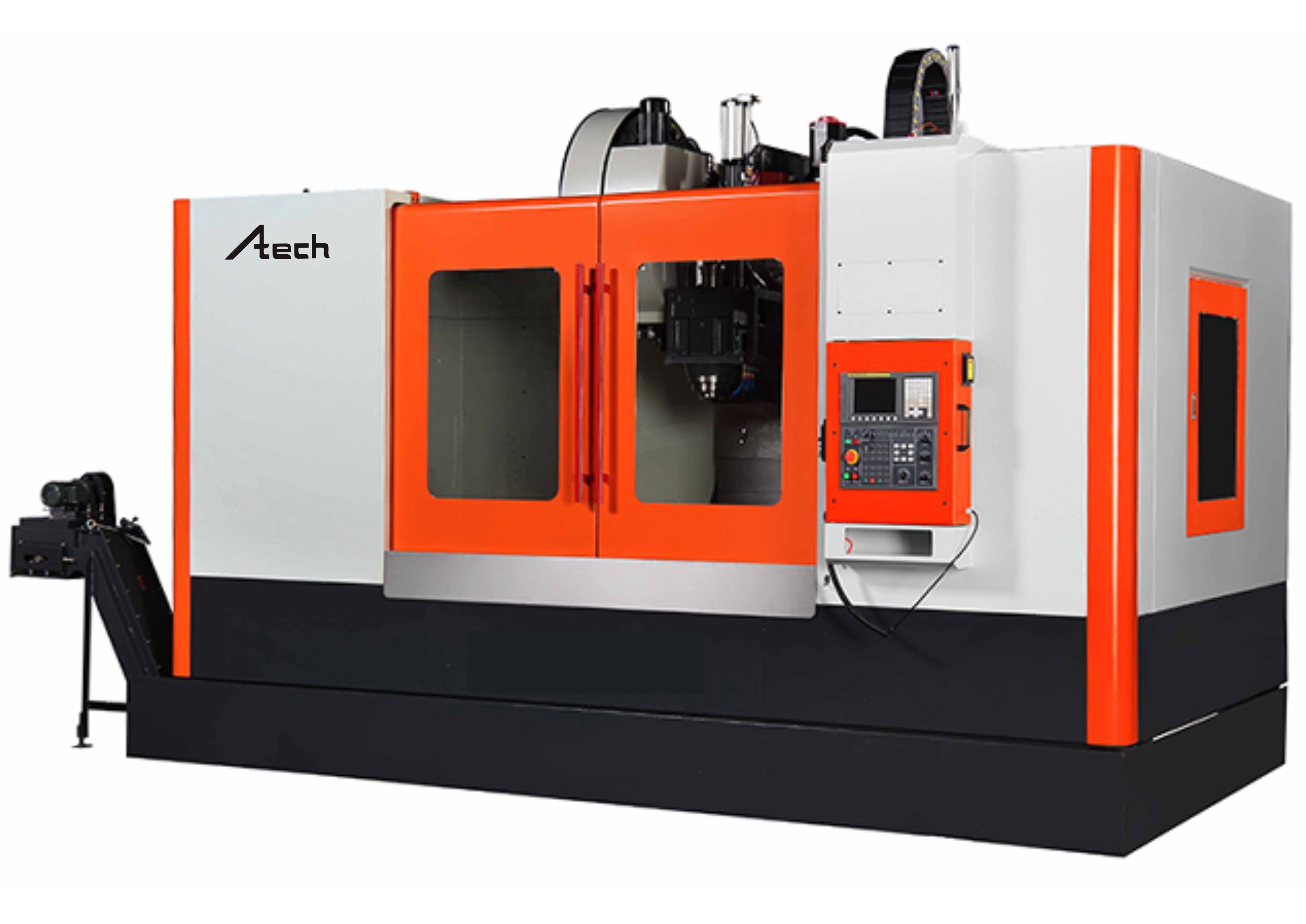

Description
Main Features
- Spindle unit BT50 by KENTURN Brand with 6000rpm.
- Disk type ATC 24pcs by OSHIMA Brand
- FANUC 0i MF(5) as standard CNC controller system, and Mitsubishi System or Siemens system as optional selection.
- X/Y linear guideway,Z hard guideway
- Suitable for machining parts of automobile, mold industry and so on.
Specification
| Specification | VMC1890 |
| Worktable size（LxW） | 2000x900mm |
| T-slot (NxWx D) | 5x22x165mm |
| X/Y/Z axis travel | 1800/900/600mm |
| Distance from spindle center to column | 950mm |
| Distance from spindle nose to worktable surface | 180-980mm |
| Spindle taper | BT50 |
| Spindle power | 18.5/22kw |
| Max.spindle speed | 6000rpm |
| Max.feed speed | 10m/min |
| Rapid feed speed（X/Y/Z) | 15/15/12m/min |
| X/Y/Z axis ball screw | 5512 |
| Tool magazine capacity | 24t |
| Tool change time(T-T) | 3s |
| Positioning accuracy（X/Y/Z) | ±0.012mm |
| Re-positioning accuracy（X/Y/Z) | ±0.008mm |
| LxWxH | 5500x3700x4100mm |
| Max.loading of worktable | 1200kgs |
| Machine weight | 16000kgs |
Machine details
GSK, Fanuc, Siemens controller as optional selection
Disk type ATC 24pcs
Spindle unit BT50
Machine frame
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
