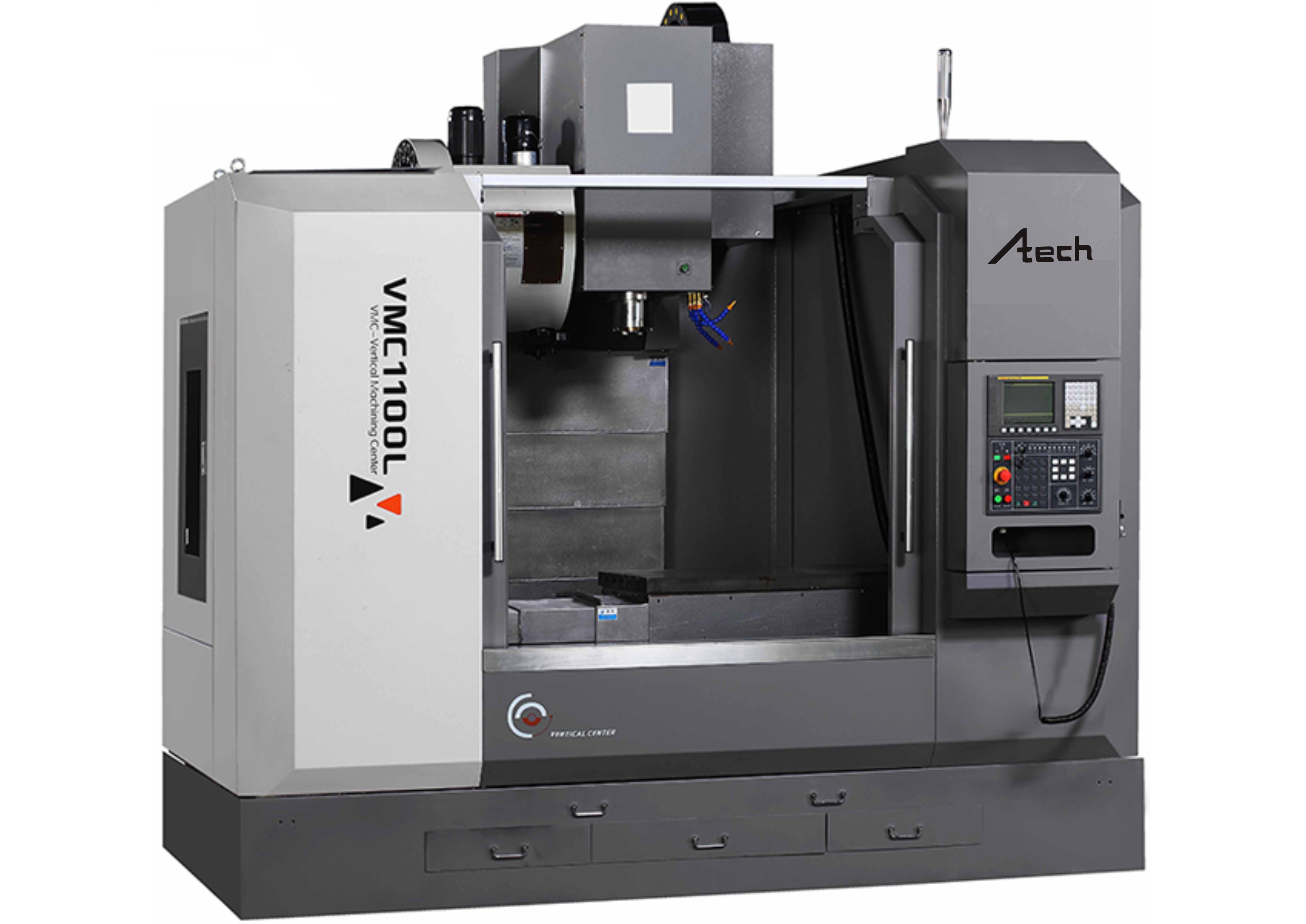

Description
Main Features
- Spindle unit BT40 by KENTURN Brand with 8000rpm.
- X/Y/Z linear guideway.
- Disk type ATC 24pcs
- GSK system,Fanuc system or Siemens system as optional selection.
- Suitable for machining parts of automobile, mold industry and so on.
Specification
| Specification | VMC1100L |
| Worktable | |
| Worktable size（LxW） | 1300x650mm |
| T-slot (NxWx D) | 5x18x100mm |
| Travel | |
| X/Y/Z axis travel | 1100/650/700mm |
| Machine range | |
| Distance from spindle center to column | 775mm |
| Distance from spindle nose to worktable surface | 150-850mm |
| Spindle | |
| Spindle taper | BT40 |
| Spindle power | 11/15kw |
| Max.spindle speed | 8000rpm |
| Feed(direct drive) | |
| Max.feed speed | 12m/min |
| Rapid feed speed（X/Y/Z) | 24/24/15m/min |
| Ball screw(diameter+lead) | |
| X/Y/Z axis ball screw | 4012 |
| Tool magazine | |
| Tool magazine capacity | 24t |
| Tool change time(T-T) | 2.5s |
| Positioning accuracy(National standard) | |
| Positioning accuracy（X/Y/Z) | ±0.010mm |
| Re-positioning accuracy（X/Y/Z) | ±0.005mm |
| Machine dimension | |
| LxWxH | 3030x2880x3250mm |
| Machine weight | |
| Max.loading of worktable | 1000kgs |
| Machine weight | 9000kgs |
Machine details
GSK, Fanuc, Siemens controller as optional selection
Disk type ATC 24pcs
Spindle unit BT40
Machine frame
Tersedia juga model lain.
