Description
Main Features
- Space saving, footprint 50% smaller.
- Easy setup.
- No deflection from gravity.
- Weight doubled, power tripled.
- The standard 8-station turret stands up to versatile production requirements.

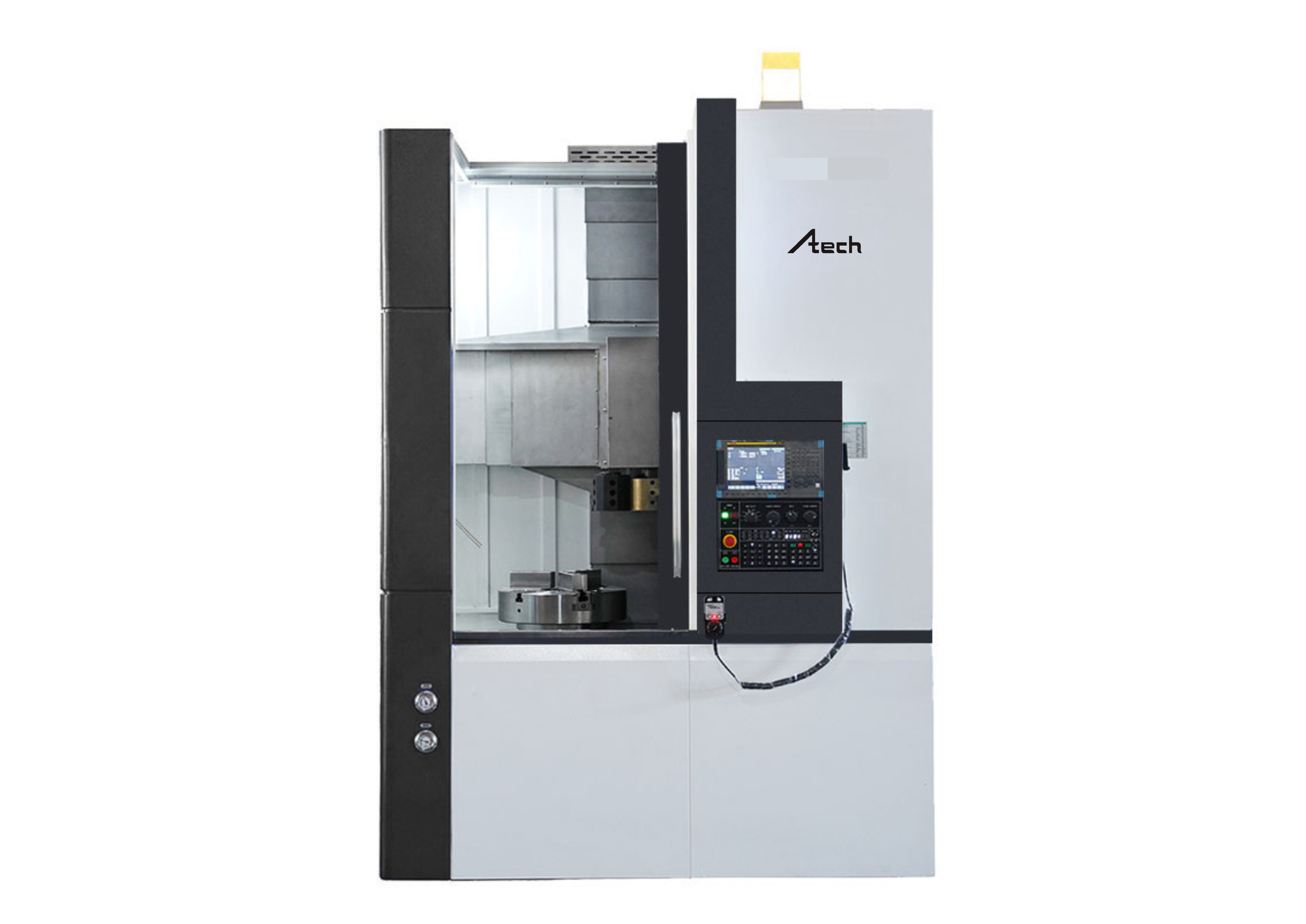

- Small CNC vtl with compact design, plus, square base casting minimizes floor space requirements and increases anti-vibration forces.
- High-speed spindle unit with a powerful servo drive motor offers high-speed finish cutting, and low-speed heavy duty cutting in the same machine.
Specification
| Specification | Unit | VK600 | |
| Capacity | Max. swing dia | mm | Ø750 |
| Max. cutting dia | mm | Ø600 | |
| Max. cutting height | mm | 600 | |
| Chuck | Chuck type | Hydraulic chuck | |
| Chuck size | inch | 21″*18″ | |
| Spindle | Spindle speed | rpm | 1000,*Gear box |
| Main motor power | kW | 15/18,*18.5,*22 | |
| Spindle nose | A2-11 | ||
| Turret | Center height | mm | 160 |
| No. of tool | nos | 8-station | |
| Tool shank size | mm | 40X40 | |
| Axis | X/Z axis travel | mm | 450(+400:-50)/600 |
| X/Z axis rapid traverse | m/mm | 15/18 | |
| Accuracy | Positioning X/Z | mm | 0.015/0.015 |
| Repeatability X/Z | mm | 0.005.0.008 | |
| Matching | IT | IT6 | |
| Others | Power consumption | kVA | 35 |
| Overall dimension (LxWxH) | mm | 2300X2000X3400 | |
| Weight (about) | kg | 11500 | |
Tersedia juga model lain.
