Description
Main Features

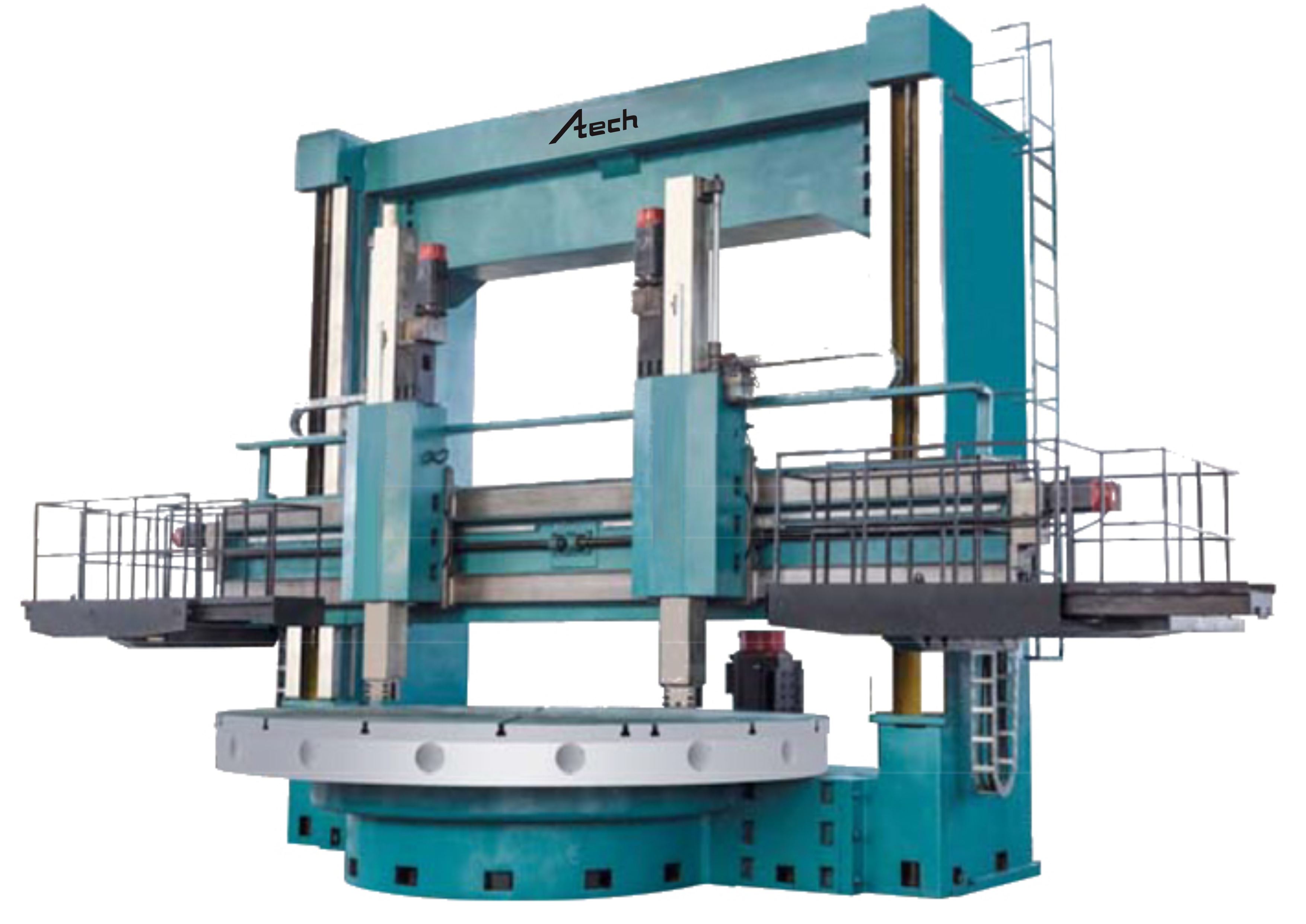

- Conventional vertical lathe machine with double column;
- Rigid column and stable;
- DRO optional;
- Precise cutting for heavy metal parts.
Specification
| Vertical lathe machine | DVT5240 |
| Table dia. | 3200mm |
| Max. turning dia. | 4000mm |
| Max. workpiece height | 1600mm |
| Max. workpiece weight | 20T |
| Max. tool size | 50mm |
| Right toolpost max. cutting forece | 35000N |
| Right toolpost max. cutting forece | 30000N |
| Total cutting force | 43000N |
| Worktable max. torque | 63000N.m |
| Worktable speed steps | 16 steps |
| Worktbale speed range | 2-63r/min. |
| Toolpost feeding range | 0.1-500mm/min/ |
| Right toolpost travel (horizontal/vertical) | 2200/1000mm |
| Right toolpost travel (horizontal/vertical) | 2200/1000mm |
| Slider section | 240x240mm |
| Left/right toolpost fast moving speed | 2000mm/min. |
| Cross beam max. travel | 1400mm |
| Corss beam up/down speed | 350mm/min. |
| Main motor power | 55kw |
| Cross beam up/dowm motor power | 11KW |
| Left/right toolpost feeding motor torque | 27N.m (Beijing CTB servo motor) |
| Total power of the machine | 72KW |
| Machine weight | 40T |
| Machine size | 7200x5400x5200MM |
Tersedia juga model lain.
