Description
Main Features
- 26mm spindle bore.
- With variable speed.
- Widely useful, operation very easy, processing scope widespread.
- Best choice for hobby users.
Specification
|
Specification
|

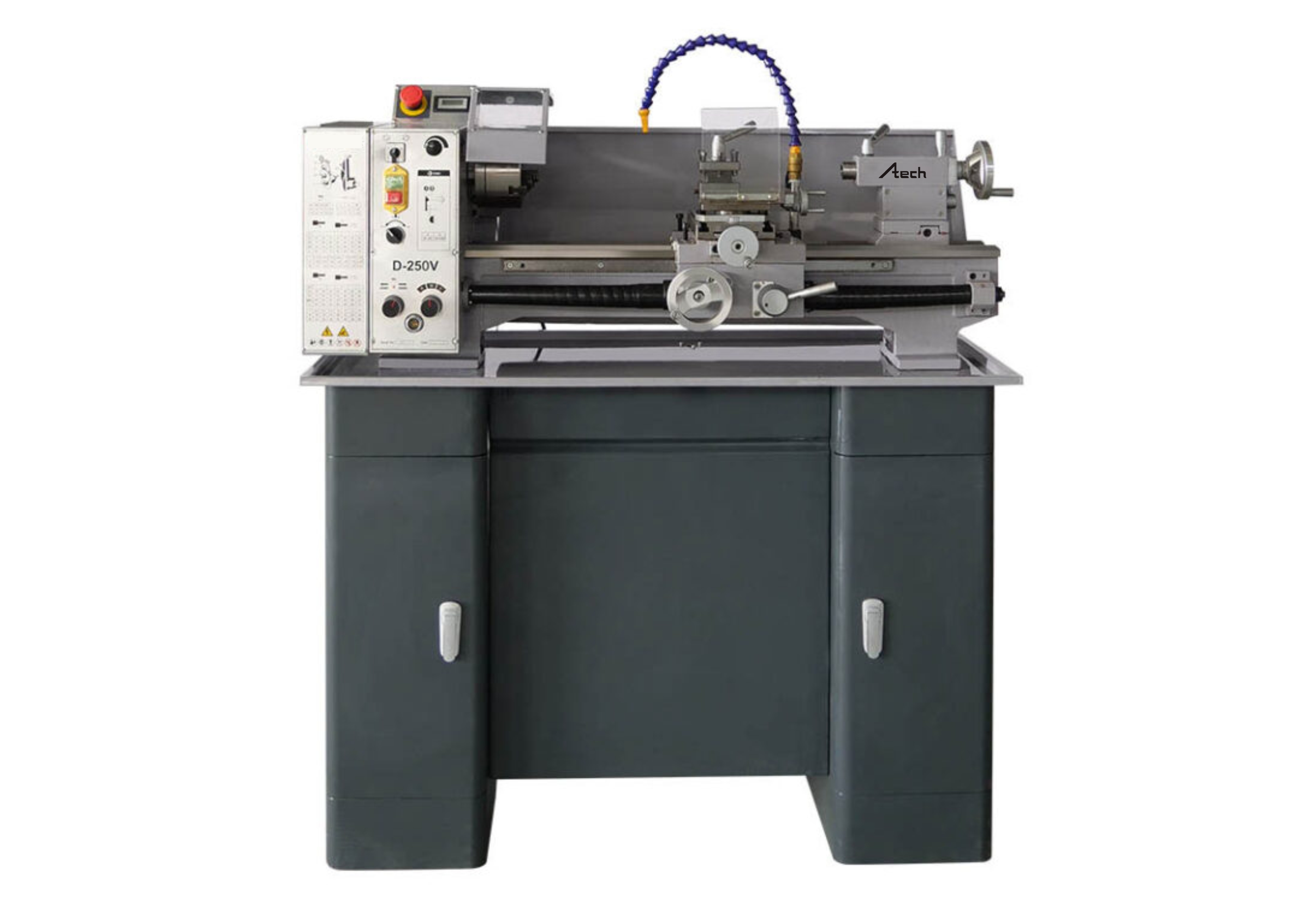

D250V
|
|
Swing over bed
|
Φ250mm
|
|
Swing over cross slide
|
Φ140mm
|
|
Admits between centers
|
500mm
|
|
Center height
|
125mm
|
|
Width of bed
|
135mm
|
|
Spindle bore
|
Φ26mm
|
|
Taper of spindle bore
|
MT4
|
|
Range of spindle speed
|
50-2500rpm
|
|
Compound rest travel
|
75mm
|
|
Cross slide travel
|
100mm
|
|
Lead screw thread
|
Tr20X3-L
|
|
Max.Section of tool（W×H）
|
12X12mm
|
|
Threads metric pitches
|
0.2-3.5mm
|
|
Threads imperial pitches
|
8-56TPI
|
|
Quill diameter
|
Φ30mm
|
|
Quill travel
|
60mm
|
|
Quill taper
|
MT2
|
|
Main motor power
|
1.1KW
|
|
Dimensions(L*W*H)
|
1100×500×500mm
|
|
Net weight/Gross weight
|
137/150kgs
|
|
Shipping dimensions(L*W*H)
|
1200×560×580mm
|
Machine details
3 Jaw Chuck
Spindle Box
Gear Box
4 Position Toolpost
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
