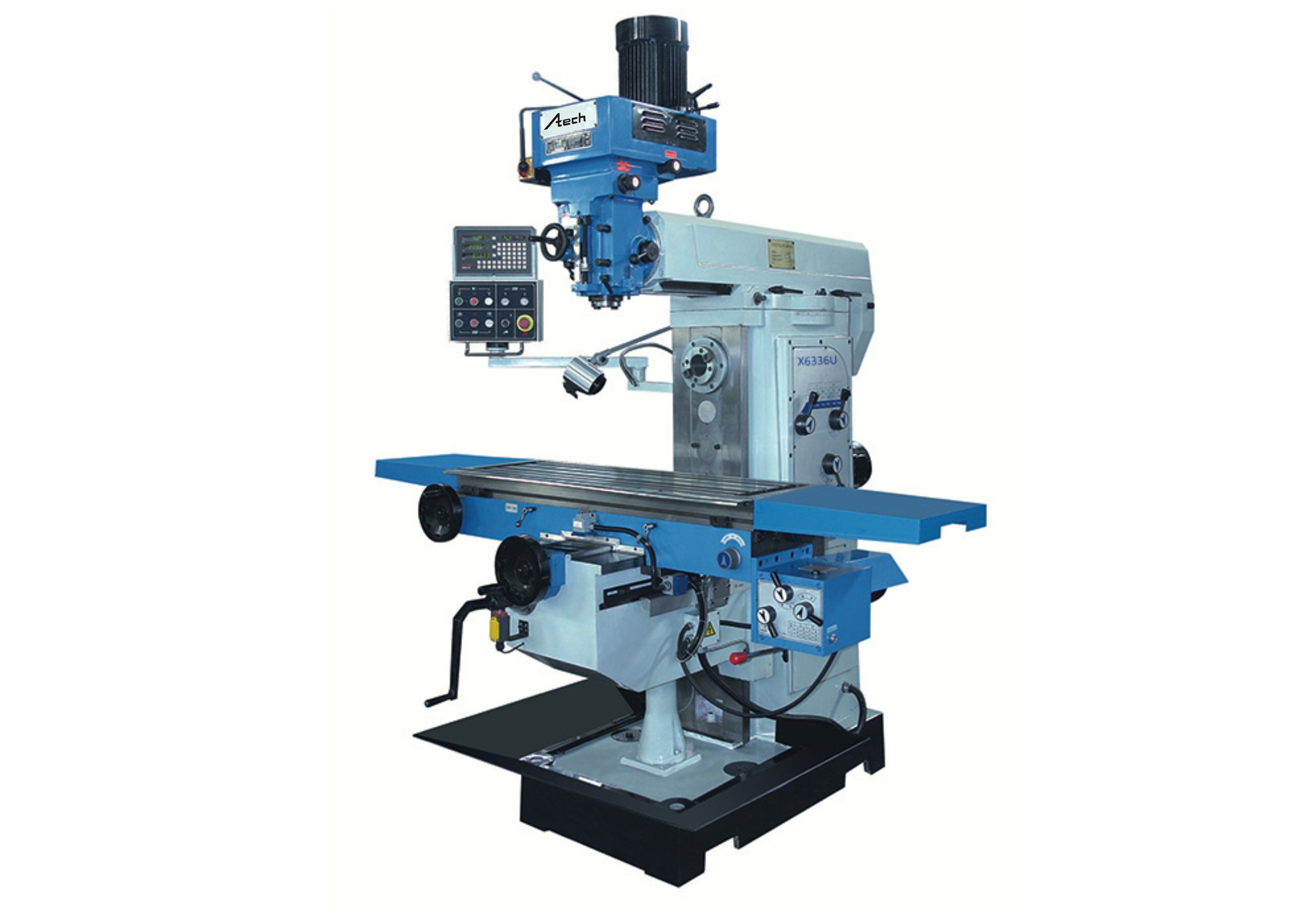

Description
Main Features
-
Double 55° swallowtail guide way is adopted on both Y,Z-axis, so it is easy to adjust and repair.
-
Adopted strengthen rib on both sides of the column that makes the machine rigidly and beautiful.
Specification
| Specificaiton | X6336U |
| Table size | 1370×360mm |
| T-slotes (No./Width/Pitch) | 3/18/80mm |
| Table travel (X/Y/Z) | 1000×320×420mm |
| Spindle taper:vertical/horizontal | NT40(V) NT50(H) |
| Ditance between horizontal nose and table surface | 0-400mm |
| Ditance between spindle axis and ram surface | 270mm |
| Spindle speed range | 50-3750rmp(variable) |
| 66-4540( vertical,16 steps) | |
| 60-1800rpm( horizontal, 12 steps) | |
| Arm travel | 600mm |
| Main motor power | 5PH (vertical) |
| 5.5KW(horizontal) | |
| Machine overall size (L*W*H) | 2070×2020×2350mm |
| Machine weight | 2200kg |
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
