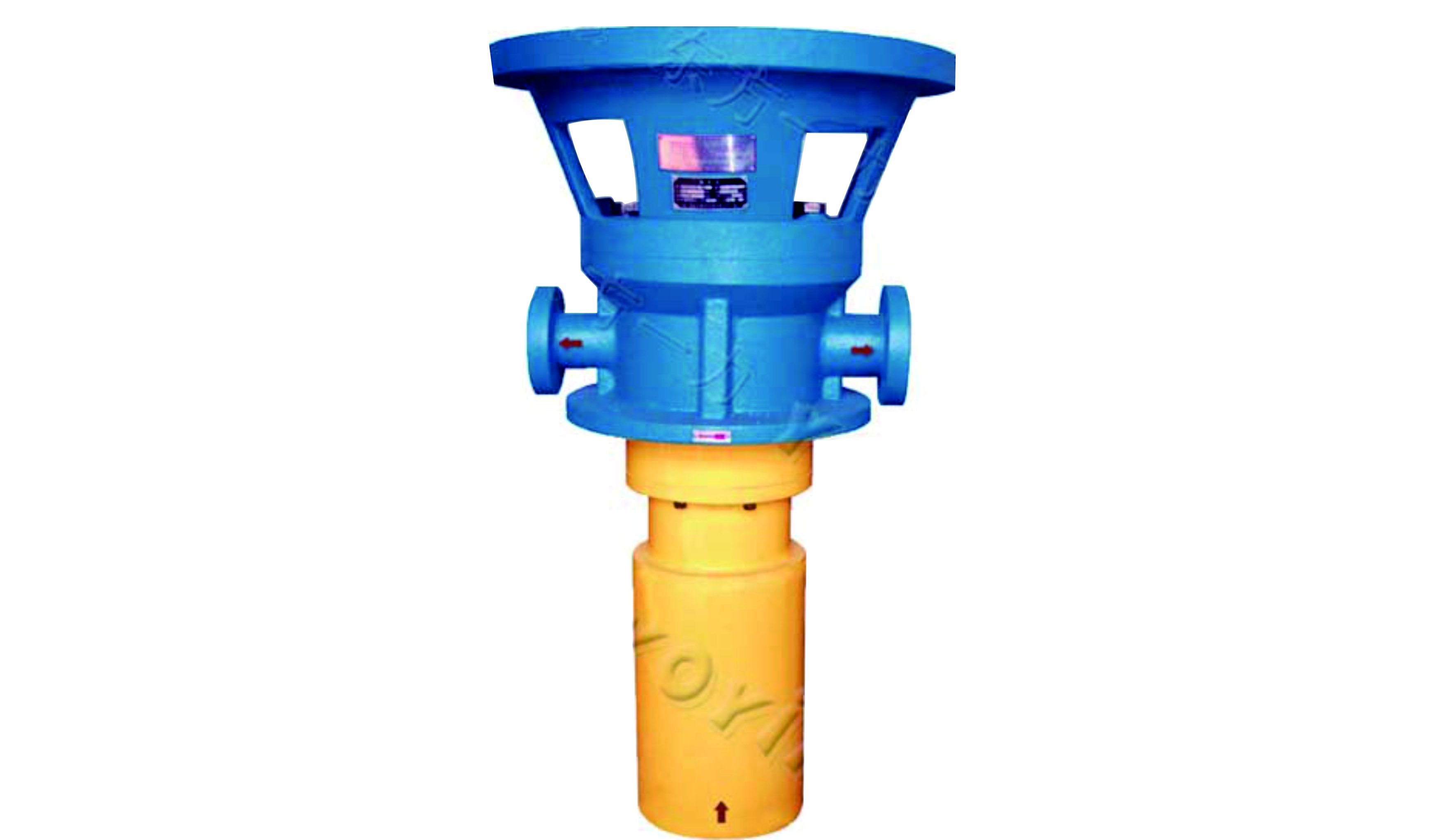

Three Screw Pump HSNJ120-42

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir

Category: Tag:

Description

Description:

Working Principle:

The three-screw pump is fixed in the pump body (bushing) by a driving screw and two driven screws meshing with each other. When the driving screw is driven by the prime mover, the main and driven screws are driven at a certain length of the engaging spiral surface. A sealed cavity is formed, and the driven screw rotates due to the pressure difference between the two sides of the spiral surface and is pushed by the conveying liquid medium. At this time, the conveyed liquid enters the pump suction port and reaches the discharge cavity uniformly and continuously in the axial direction, thereby achieving the function of conveying the liquid medium.

Performance:

1. Normal flow range: 30~1100L/min

2. Maximum working pressure: 6.3MPa

3. Maximum working temperature: 100 °C

4. Conventional medium viscosity: 32-380mm2/s



Features:

1. Very small vibration and low noise.

2. Continuous and stable output without pulsation.

3. Unique flow channel and circulation design make the pump have strong self-priming ability.

4. Modular design of parts, pump core assembly can be taken out or replaced as a whole, which is convenient for on-site maintenance.

5.The pump unit has two installation forms: A and B





Tersedia juga model lain.
Silahkan chat/WA ke no 0858-7630-0414 (Fast respon)
