Description
Main Features
- Reasonable layout and large interior space.
- High-precision sleeve-type independent spindle structure and high-speed hydraulic rotary system.
- Absolute servo motor.
- The selection of high-quality resin sand, the casting of the base and the bed, strict aging treatment, the best rigidity, excellent shock absorption performance, and strong toughness can ensure the stability of the machine.
- The center-mounted and pre-stretched screw rod installation methods improve the rigidity and machining accuracy of the machine tool.
Specification
|
Specification
|

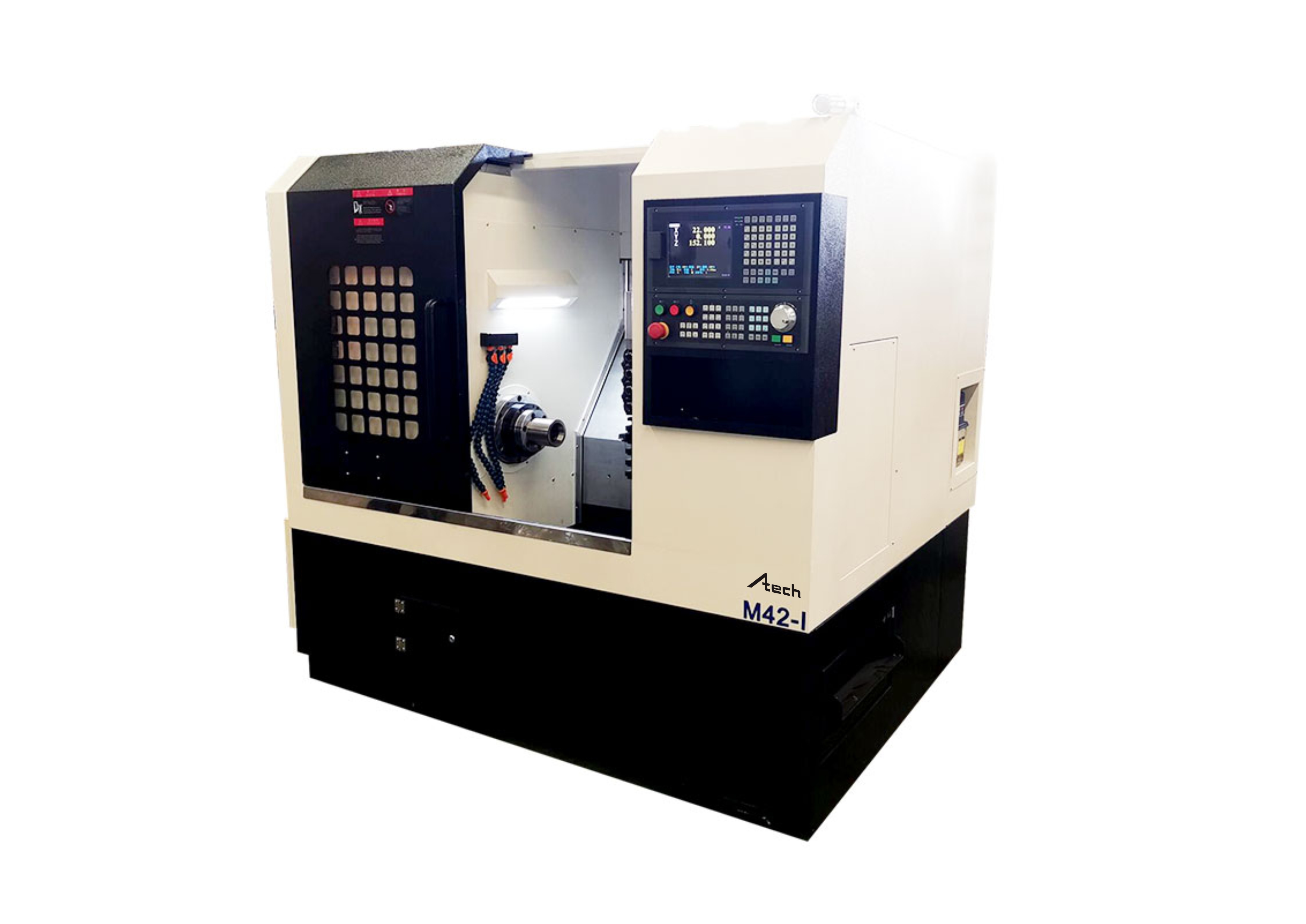

M42-I
|
|
Spindle
|
|
|
Max. bar dia.
|
42mm
|
|
Max. spindle hole dia.
|
43mm
|
|
lThe height from spindle center to ground
|
936mm
|
|
Spindle speed
|
0-4000rpm
|
|
Spindle motor power
|
5,5kw
|
|
Travel
|
|
|
X axis travel
|
360mm
|
|
Y axis travel
|
360mm
|
|
Z axis travel
|
300mm
|
|
X/Y/Z axis motor power
|
0.85/0.85/0.85kw
|
|
Slide guideway
|
Linear guideway
|
|
Tools System
|
|
|
Gang tools qty
|
16pcs
|
|
Turning tool qty
|
5pcs
|
|
Tool size
|
16*16mm
|
|
Front drilling tools qty
|
4pcs
|
|
Drilling spindle size
|
ER20/20mm
|
|
Power Cutting Tool System
|
|
|
Power tools qty
|
7 pcs(4+3)
|
|
Motor power
|
2kw
|
|
Rotating speed
|
3000rpm
|
|
Collet size
|
ER20
|
|
Drilling hole dia.
|
12mm
|
|
Tapping size
|
M10
|
|
Cooling System
|
|
|
Motor Power
|
0.12kw
|
|
Capacity
|
200L
|
|
Lubrication System
|
|
|
Motor power
|
25W
|
|
Capacity
|
2L
|
|
Pneumatic System
|
|
|
Input pressure of compressed air
|
0.4-0.6Mpa
|
|
Hydraulic System
|
|
|
Motor Power
|
0.75kw
|
|
Hydraulic pressure
|
3.0Mpa
|
|
Machine Size(LXWXH)
|
2050X1530X1770mm
|
|
Machine Net Weight
|
2000kg
|
Tersedia juga model lain.
