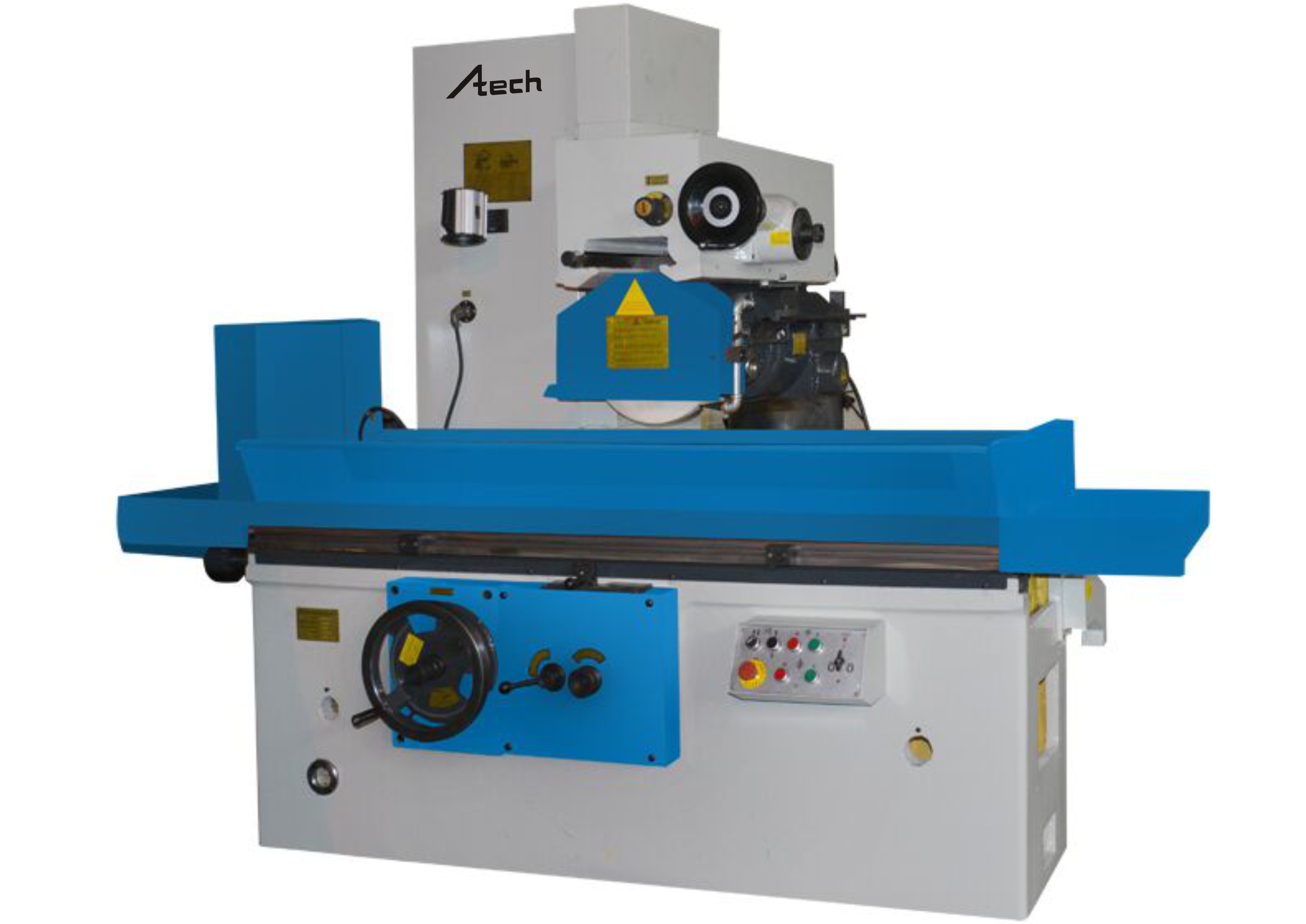

Description
Main Features
- Robust construction and heavy-duty design.
- The longitudinal movement of the working table is driven by hydraulic power. Stepless speed regulating.
- The longitudinal movement of the grinding head is driven by hydraulic power. Stepless speed regulating.
- The grinding head is equipped with a fast speed lifting motor, which increase efficiency.
- The vertical and horizontal railway for grinding head is pasted with PTFE soft belt. Good wear resistance.
- High precision, good stability, and low noise.
Specification
| Specification | M7140 | |
| Max workpiece to be ground | 1000x400mm | |
| Max. table longitudinal movement | 1100mm | |
| Distance from table to wheel spindle center | 570mm | |
| Max. lateral displacement of the grinding head | 450mm | |
| Grinding head vertical feed per revolution | 1mm | |
| Grinding head vertical feed per grid | 0.01mm | |
| Fast lifting motor | Power | 0.37kw |
| Speed | 1440rpm | |
| Wheel Size(dia×width×bore) | 350x40x127mm | |
| Spindle speed | 1440rpm | |
| Spindle motor | 7.5kw | |
| The mechanical surface of the base of parallelis | 300/0.004mm | |
| Surface roughness | Ra:0.63μm | |
| N.W/G.W | 4000/4600kgs | |
| Packing size | 2800x1750x2350mm | |
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
