Description
Main Features
- High precision:2-axis linear way, high-precision linear guide rdeuce wear and tear.
- Screw in the center of guide way enhances the stability of the machine tools.
- Tool post are used to improve the processing efficiency, accuracy and stability triangular.
- Enclose can be fixed with GSK, or Siemens controlling system.
Specification

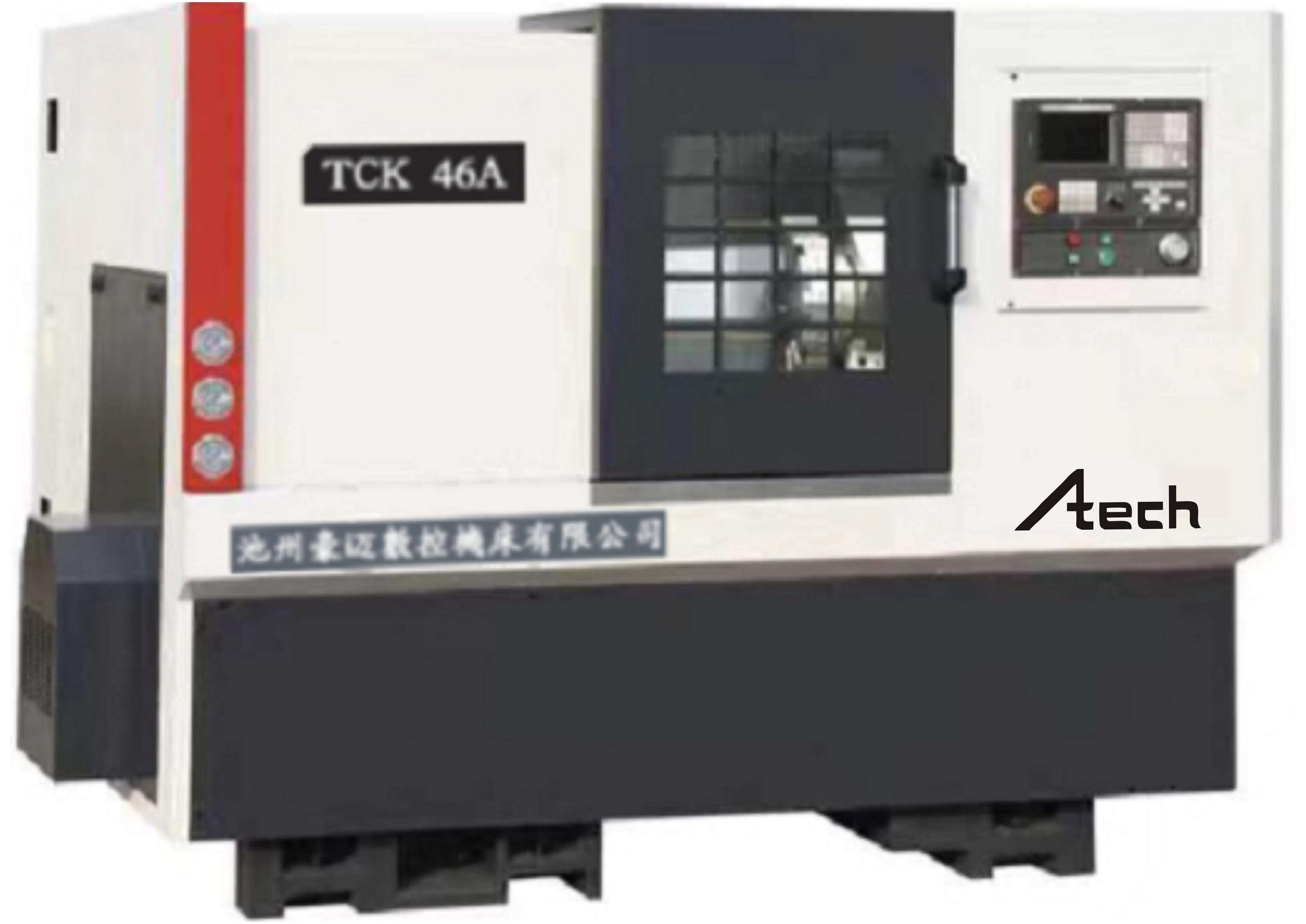

| Specifications | TCK46A |
| Max.swing over bed | 460mm |
| Max.swing over cross slide | 170mm |
| Max.machining length | 350mm |
| Spindle unit | 170mm |
| Spindle nose(optional chuck) | A2-5/A2-6 |
| Spindle motor power | 5.5kw |
| Max.spindle speed | 3500rpm |
| Spindle bore | 56mm |
| Drawing hole diameter | 45mm |
| X/Z axis screw specifications | 3210/3210 |
| X-axis travel | 240mm |
| Z-axis travel | 400mm |
| X axis motor torque | 7.5N.m |
| Z axis motor torque | 7.5N.m |
| X/Z axis repeatability | ±0.003mm |
| Tool Turret(Optional) | 80-8T/12T |
| Turret center high dimensions | 80mm |
| Hydraulic Quill dia. | 70mm |
| Hydraulic Quill traverse | 80mm |
| Hydraulic Quill taper | MT5 |
| Hydraulic tailstock travel | 200mm |
| Machine dimension(LxWxH) | 2500x1700x1710mm |
| Net.weight | 2600kgs |
Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)
