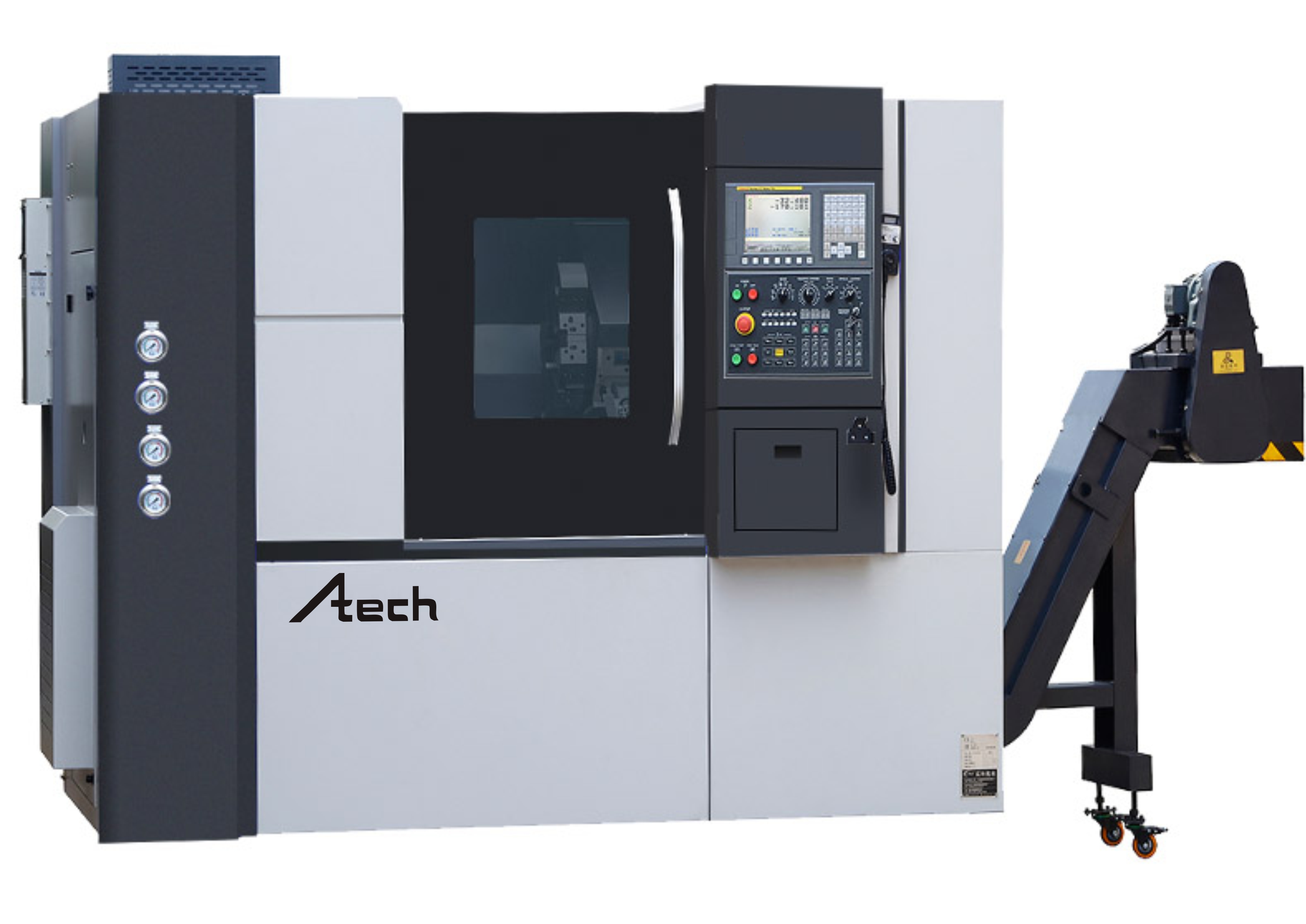

Description
Main Features
- It extremely minimizes the impact of thermal expansion to precision. 35-degree slant bed is more convenient for scrap iron.
- It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable.
- Better water-resistant and scrap-iron-resistant.
- Better dynamics and higher precisions.
-
Increasing the versatility and automation of the lathe.
Specification
|
Specification
|
Unit
|
SWL8
|
||
|
Capacity
|
Chuck size
|
inch
|
8″,*10″
|
|
|
Max. swing dia. over bed
|
mm
|
Ø450
|
||
|
Max. length of workpiece
|
mm
|
450
|
||
|
Max. swing dia. over slide
|
mm
|
Ø220
|
||
|
Spindle
|
Spindle bore
|
mm
|
Ø62
|
*Ø75
|
|
Max. dia. of through-hole
|
mm
|
Ø52
|
*Ø65
|
|
|
Spindle nose
|
type
|
A2-6
|
*A2-8
|
|
|
Spindle speed
|
rpm
|
4000
|
*1600
|
|
|
*2000
|
*3500
|
|||
|
Main motor power
|
kW
|
7.5/11,*11/15
|
||
|
Axis
|
X axis travel
|
mm
|
170
|
|
|
Z axis travel
|
mm
|
450
|
||
|
X/Z rapid traverse
|
m/min
|
20/20
|
||
|
Turret
|
Center height
|
mm
|
80
|
|
|
No. of tool stations
|
nos
|
8,*12
|
||
|
Tool shank size
|
mm
|
25X25,*20X20
|
||
|
TailStock
|
Type of tailstock
|
Hydraulic,*SST,*HPT
|
||
|
Taper of tailstock quill
|
MT4
|
|||
|
Travel of tailstock quill
|
mm
|
90
|
||
|
Travel of tailstock
|
mm
|
100-450
|
||
|
Structure
|
Slant bed degree
|
35
|
||
|
Guideway type
|
LM
|
|||
|
Others
|
Power capacity
|
kVA
|
15
|
|
|
Overall dimension (LxWxH)
|
mm
|
2700x1750x1950
|
||
|
Weight (about)
|
kg
|
3700
|
||
Tersedia juga model lain.
