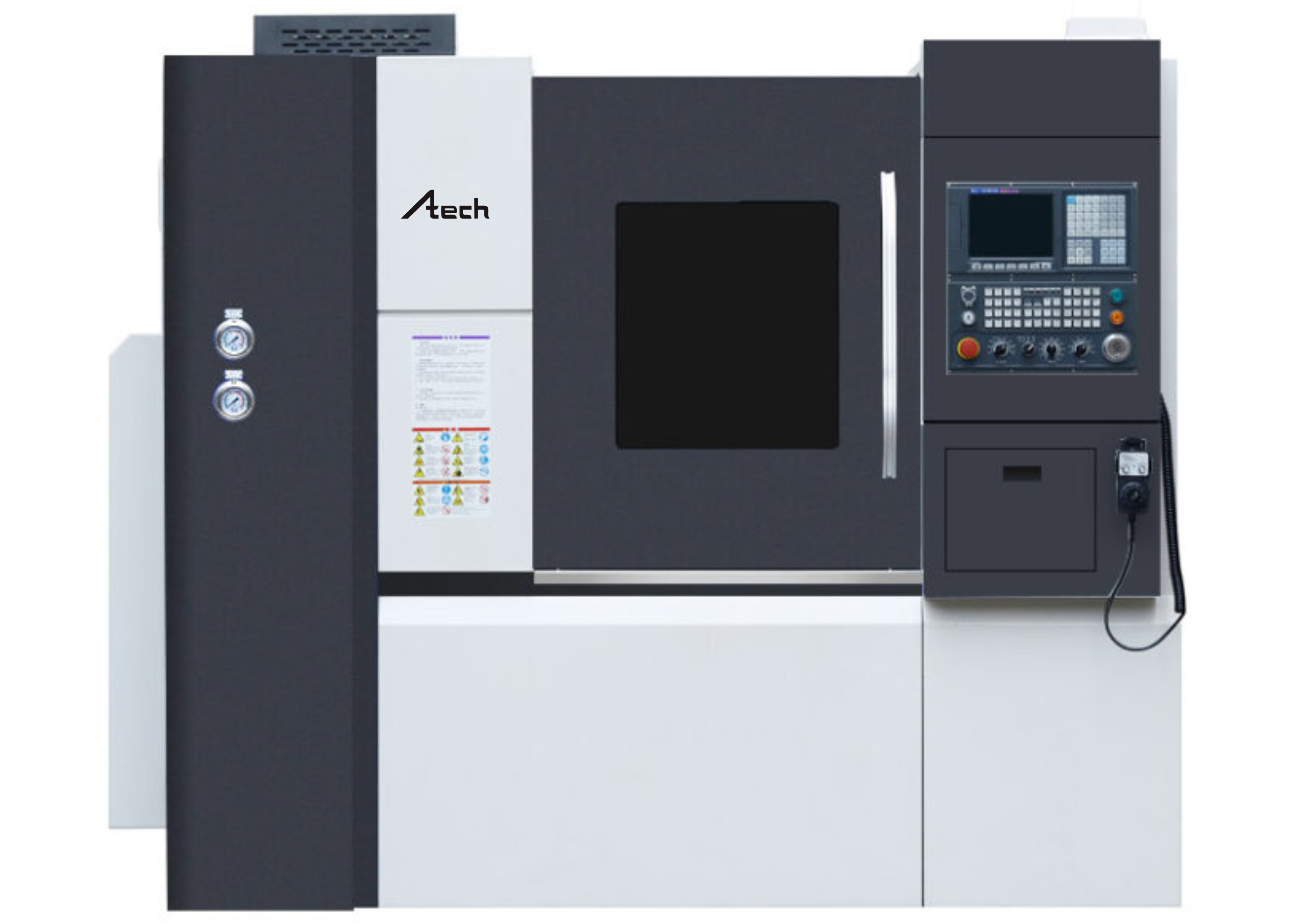

Slant Bed Lathe SHL450/320

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: , ,

Description

Main Features

  • The SHL450/320 CNC slant lathes feature a mono-block bed/spindle design for increased rigidity and vibration damping. Even during heavy cutting operations.
  • The rigid foundation on the SHL450/320 also assures precision and repeatability during high-speed turning operations.
  • Ture slant bed extremely minimizes the impact of thermal expansion to precision.
  • A 45-degree slant bed is more convenient for scrap iron.
  • Better dynamics and higher precisions.
  • It realizes an optimized combination of high-precision, high bearing capacity, and good running speed and it is more durable.
  • Increasing the versatility and automation of the lathe.
  • Better water-resistant and scrap-iron-resistant.





Specification

Specification Unit SHL450/320
Capacity Chuck size inch 8″
Max. swing dia. over bed mm Ø450
Max. length of workpiece mm 320
Max. swing dia. over slide mm Ø220
Spindle Spindle bore mm Ø62
Max. dia. of through-hole mm Ø52
Spindle nose type A2-6
Spindle speed rpm 4000
*2000
Main motor power kW 7.5/11
Axis X axis travel mm 250
Z axis travel mm 320
X/Z rapid traverse m/min 20/20
Turret No. of tool stations nos 8,*12
Tool shank size mm 25X25,*20X20
Structure Slant bed degree 45
Guideway type LM
Others Power capacity kVA 15
Overall dimension (LxWxH) mm 2290X1600X1810
Weight (about) kg 3300





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 3300 kg
