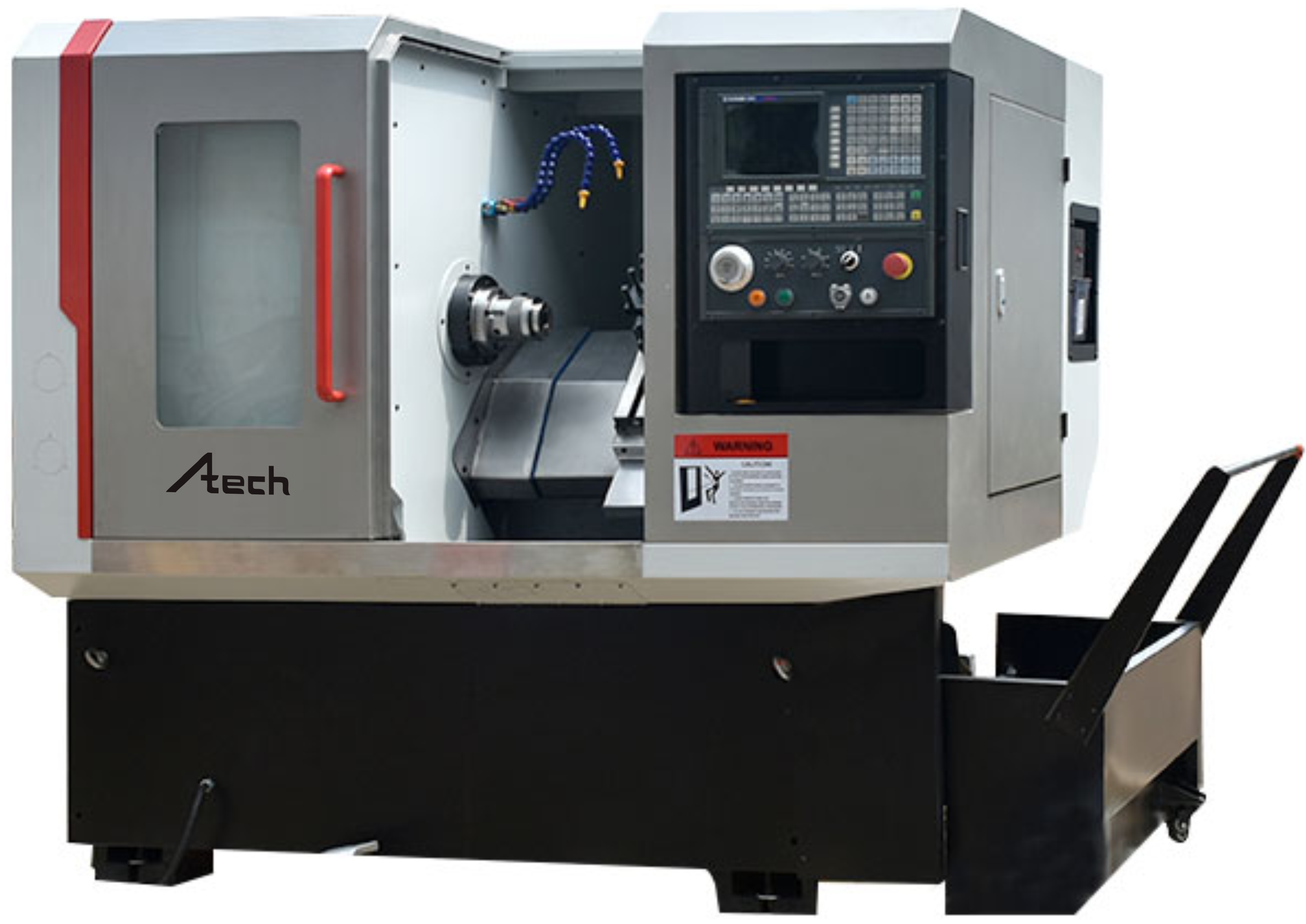

Slant Bed Lathe CK35L

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Description

Main Features

High rigid 45°slant bed.
A2-5 spindle unit.
52mm spindle bore
X/Z Taiwan linear guideway.
X/Z Taiwan precision ballscrew.
Can choose GSK, Siemens, Fanuc controller.

Specification

Specification	CK35L
Max. swing over bed	φ350mm
Distance between centers	260mm
Max.swing over cross slide	φ185mm
Max. spindle speed	4000rpm
Spindle bore	φ52mm
Spindle nose	A2-5
Taper of spindle bore	Metric 1:20
Chuck dia.	φ160mm
X-axis travel	350mm
Z-axis travel	300mm
Rapid traverse X/Z	12/15 m/min
Tool station	Tool array
Tool section	20x20mm
Spindle motor power	4KW Servo
Spindle pump power	120w
CNC controller	GSK 980TDI
Type of guideway	Taiwan linear guideway
Overall size (LxWxH)	2600x1300x1700mm
Packing size (LxWxH)	2760x1700x2050mm
N.W/G.W	1350/1550kg
