Description
Main Features
-

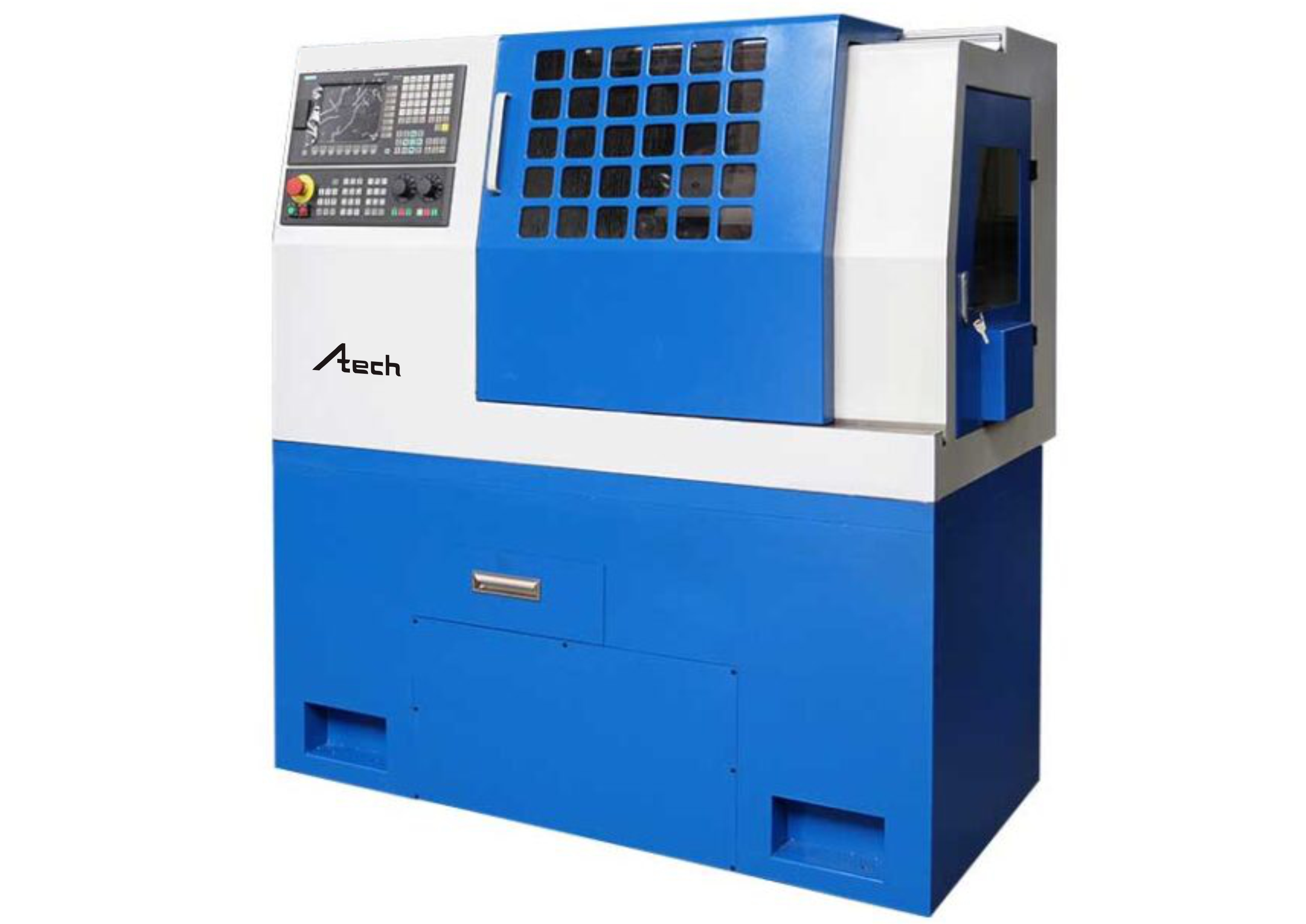

Adopting the ramp bed, the machine tool is more stable and the rigidity is stronger.
-
Standard high-performance servo motor, high-torque brushless spindle motor
-
The high-precision tower tool magazine meets different processing needs.
-
MT3 metric spindle specifications
-
Supporting high-performance Siemens 808D control system
-
Selected high-quality material casting, compact structure
-
Taiwan imported ball screw
Specification
| Specification | CK30L/400 |
| Max. swing over bed | 300mm |
| Max. swing over carriage | 100mm |
| Distance between centers | 400mm |
| Chuck size | 125mm |
| Spindle speed | 100-3000r/min |
| Spindle bore | 20mm |
| Spindle taper | MT3 |
| Spindle power | 1500W |
| X axis travel | 120mm |
| Z axis travel | 320mm |
| Max. rapid speed | 5000mm/min |
| Max. feed speed | 1000mm/min |
| Feed motor | 400w |
| Position of toolpost | 8 |
| Max. section of tool | 12×12mm |
| Tool size | φ12mm |
| Tailstock taper | MT2 |
| Tailstock dia. | 30mm |
| Tailstock travel | 50mm |
| Positioning accuracy | 0.010mm |
| Re-positioning accuracy | 0.005mm |
| Voltage | 230/110V |
| N.W/G.W | 620kg/700kg |
| Machine size (LxWxH) | 1400×770×1600mm |
| Packing size (LxWxH) | 1650×1090×1920mm |
Tersedia juga model lain.
