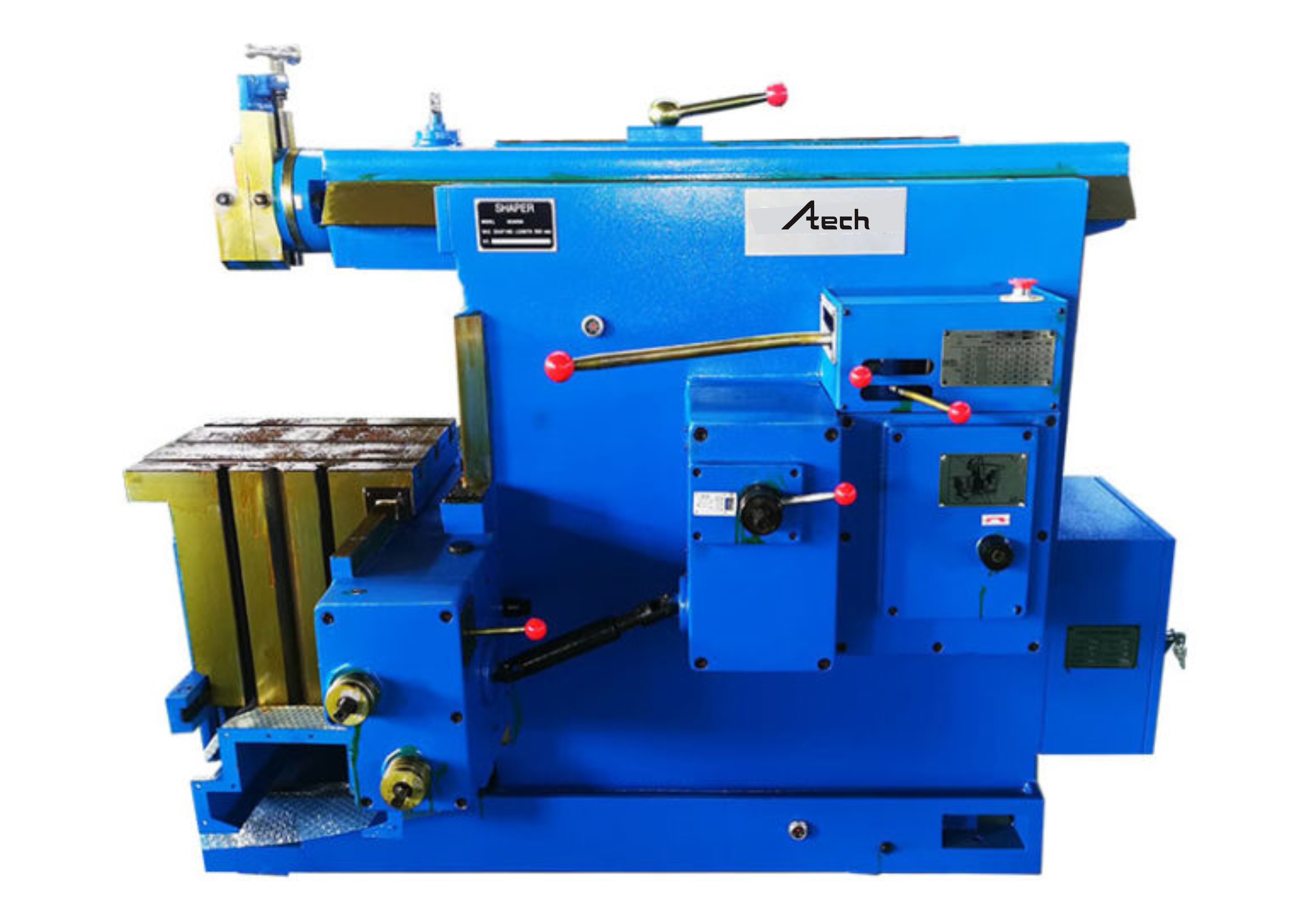

SHAPING MACHINE BC6050

Multi Sarana Industrindo menjual berbagai macam kebutuhan industri, seperti : metal conductivity tester, oil flow meter/oil control valve, paper thickness gauge, pressure gauge, alat ukur minyak, alat ukur makanan, alat ukur kimia, alat ukur metalurgi, alat ukur tenaga listrik, radiation detector, detektor radiasi, dosimeter alarm radiasi pribadi, alat detektor radiasi nuklir, Mesin Industri

Category: Tags: ,

Description

Main Features

  • Suitable for machining plane, groove and dovetail surface of work piece.
  • The workbench takes along the workpieces making the intermittent horizontal over tical feed movement.
  • The machine could process plan, groove, dovetail surface, also could process the forming surface, and also could cut the workpieces fixed on the workbench by the reciprocating motion tool rest.



Specification

Specification BC6050
Maximum planing length 500mm
Maximum distance from the bottom of the working table 370mm
lateral travel 525mm
Vertical stroke 270mm
Tool frame travel 120mm
Sleeper reciprocating times (per minute) 14/20/28/40/56/80
Main motor power 20×30mm
The maximum size（width*thickness）of the handle 3W
The size of the T groove in the center of the worktable 18mm
Angle of rotation ±60°(tool post)
Workbench size 440×360mm
Shape size 2000×1250×1400mm
Mechine tool weight (about) 1650/1760KG
Package dimensions 2000/1300/1600mm





Tersedia juga model lain.
Untuk Info Harga Silahkan Hubungi 0858-7630-0414 (Fast respon)

Additional information

Weight 1760 kg
