Description

Feature:

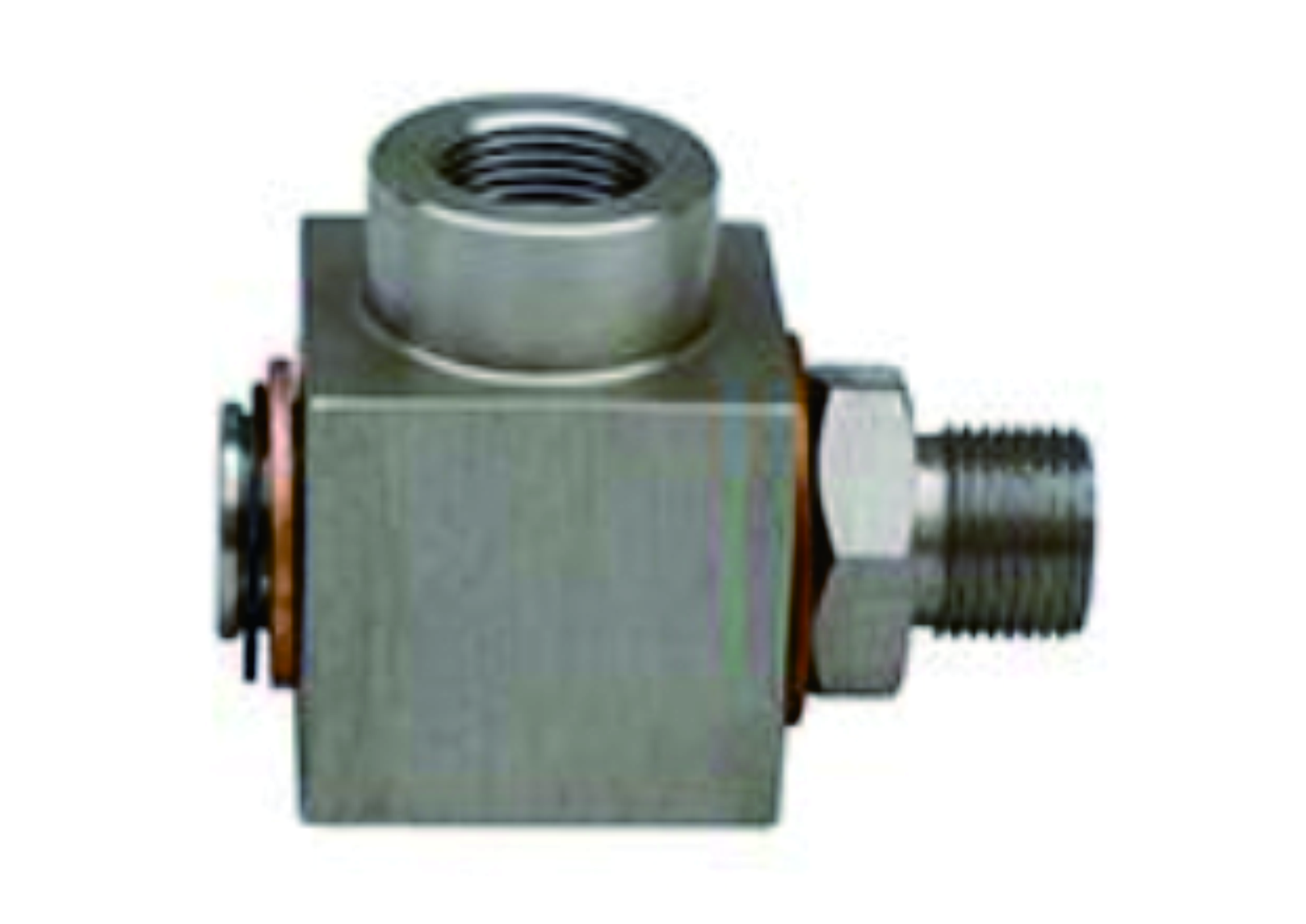

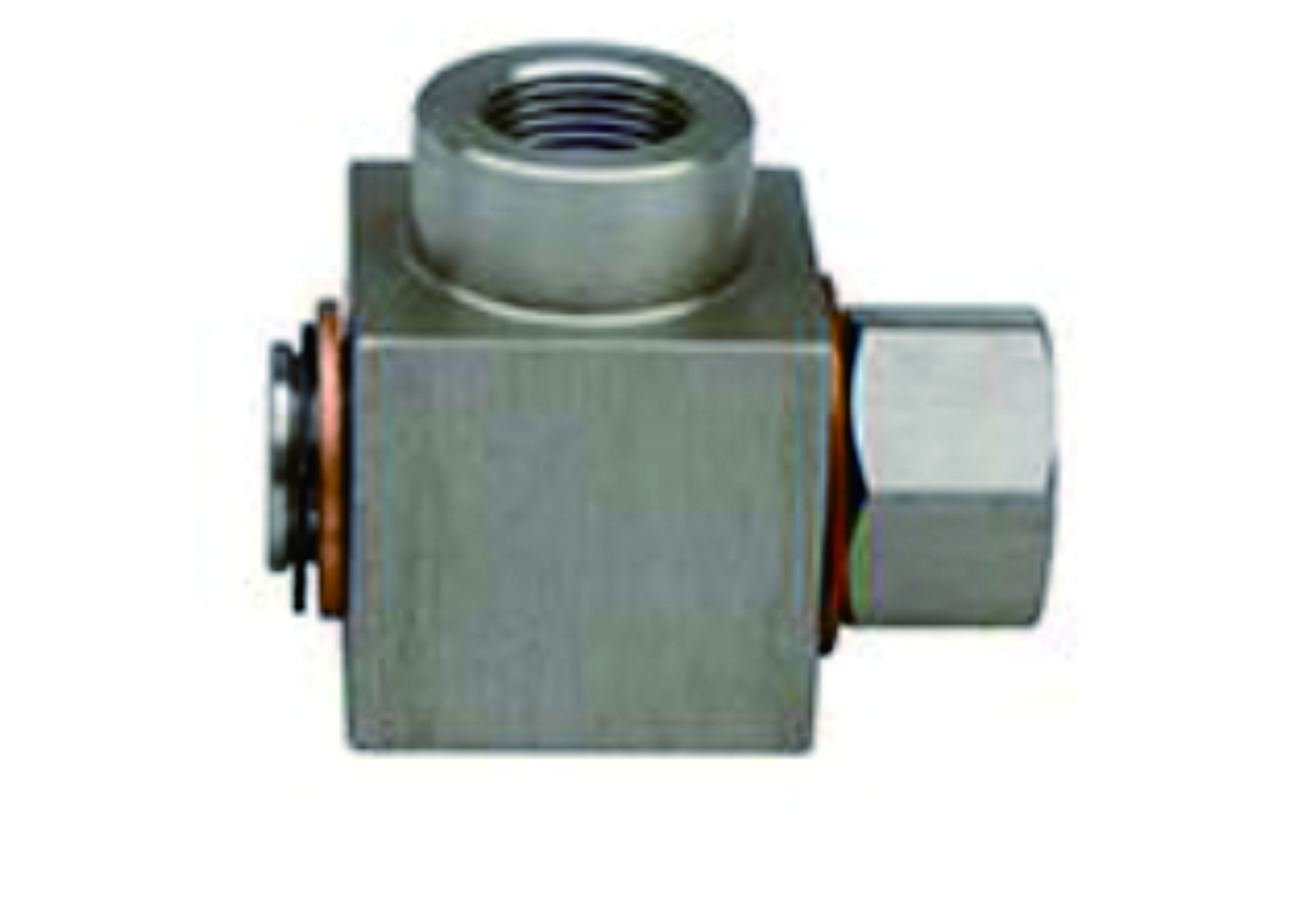

JL-DD and JL-DC hydraulic adapters are used in high-pressure applications with low rotation or swing frequency. They are small in size, easy to install, and made of stainless steel. Large-size ones are supported by oil-free composite bearings. They are generally used in hydraulic oil circuits at room temperature, with a maximum pressure of 20.5Mpa and low-speed rotation or swing. They can replace Bridgestone rotary joints.



Scope Of Works:

• Applicable media: hot water, high temperature, high pressure steam, heat exchange fluid, nitrogen, organic solvents,
• Hydrocarbons, cryogenic liquids and other media.
• Applicable pressure: 1-25Mpa
• Applicable temperature: -200-120°C
• Speed ​​range: 0~30rpm

Parameter:
